IPC9300 IP Camera Tester CCTV Tester IPC Tester Monitor IP + Analog + Ethernet Cable TDR

IPC9300 IP Camera Tester CCTV Tester IPC Tester Monitor IP + Analog + Ethernet Cable TDR

Features:
- Network/simulation in one
- Capacitive touch screen + keys + virtual keyboard
- One-click batch activation for Hikvision cameras
- Speed ONVIF out images
- IP address detection, faster and more accurate
- Support for ONVIF, Hikvision, Dahua, ACTI and more than 100 manufacturers' private protocol testing of network cameras, which can be customized and added
- Switch between horizontal and vertical images
- Support network PTZ control function
- Support 1080P HD preview
- 12V 2A high current DC output
- High-definition IPS display: 4-inch 800x480 capacitive touch screen is used. 4 inch high-definition full-view screen.
- Network Camera Test:
· Image display, enlargement, video recording, taking pictures and playback
· Support H.265/MPEG4/MJPEG network camera test, support 1080P
· Support ONVIF camera test, stream function, main stream/sub stream
· Customizable private agreement
· RTSP playback
· Portable client software
· Support GB28181 standard
· One-click batch activation for Hikvision cameras
· Can change camera IP address
· Built-in browser
- Analog Camera Test:
· Image display, enlargement, video recording, taking pictures and playback
· Analog video image display, NTSC, PAL automatic adaptation and standard display
· Support for PELCO-P, PELCO-D, SAMSUNG and more than 30 kinds of PTZ PTZ control protocols
- IP detection speed version One-click drawing: CCTV tester will automatically search for the IP of the entire network segment connected to it, and automatically modify the IP of the machine to make it on the same network segment as your camera
- Custom tool for Hikvision & Dahua: Built-in ONVIF test tool, support PTZ control function. The network camera protocol can be customized. Currently, it supports for Dahua, Hikvision, Samsung and over 100 camera protocols are supports.
- FTP server function: Data can be read without a card reader.
- Silicone protective sleeve: Not afraid of loss caused by falling or collision.

Functions:
- Touch Screen Operation + Intelligent Interface: IPC network video monitoring tester, using capacitive screen touch operation. Make operation easier. More intuitive and efficient icon design.
- Wireless WIFI: Built-in wireless WIFI network function, can accept WIFI network camera images (ONVIF or customized camera) or network data, etc.
- IP Network Camera Test: Built-in ONVIF test tool, IP network camera test, browser and other functions, which can display camera images, change IP address and other functions. Support PTZ control function, can customize network camera protocol. Currently, it supports cameras from more than 30 camera manufacturers. For Dahua, Hikvision, ACTI, Samsung, Panasonic, Honeywell, Diveo, JCO, and FUNI.
- Video Screenshot: While video testing and PTZ debugging, there is no need to switch screen, you can take a screenshot of the video at any time, and store it in the SD card of the device to facilitate construction work on site.
- Image Display Magnification Function: Video image magnification, users can magnify video screen 1-4 times to view local details, and support analog camera, network camera image magnification function.
- Power Supply Output: DC 12V-2A power output, providing emergency working power for high-power cameras.
- Video Recording: At the same time of debugging, video can be recorded at any time and saved in SD card, which is convenient for recording the scene. The resolution of the video recorded by CCTV tester is the same as the resolution of camera. But when looking at it, it can only be displayed at the current resolution of our device.
- Address Scanning: The unique address scanning function of the video surveillance tester can quickly assist engineers to find the address of spherical camera.
- Video Signal Test: Video monitoring tester, built-in high-definition digital LCD monitor, intuitive and convenient display camera image quality. Support PAL/NTSC image signal. The brightness, contrast and color saturation of the LCD display can be adjusted, and the backlight brightness of the LCD can be adjusted, which is suitable for field construction and maintenance operations.
- PTZ Control: Built-in more than twenty kinds of PTZ control protocols. For Pelco-D/P, Samsung, Panasonic. Through its own RS485 or RS232 interface, users can control the pan, tilt, left, and right movement, and adjust the zoom, focus, and aperture of the all-in-one. The video monitoring tester supports horizontal rotation speed and vertical rotation speed adjustment. Support preset position setting, preset position calling function, can call the ball camera menu, edit various parameters of the sphere.
- Flashlight Function: In order to facilitate engineers to work at night, built-in flashlight lighting application. Simple and easy to use.

Specifications:
- Item name: IPC tester HD video monitor
- Touch screen: 4" G + G structure capacitance screen
- LCD screen: 4" resolution of 800 x 480 IPS fully view
- Ethernet port: 10/100M adaptive
- WIFI: Built-in wireless WIFI, speed 150M
- IP Monitor Test: ONVIF tool. Support for Dahua and Hikvision, more than 30 private agreements, which can be customized. Support mobile client installation, maximum resolution 1920x1080, real-time image browsing without delay.
- CVBS analog monitor test: 1 channel CVBS analog input, support PAL/NTSC adaptive
- Video image enlarge: Real-time enlarge mobile HD video image, maximum to 8 times
- Taking photos, video record, video playback: All video images support taking pictures and videos. Support H264 encoding and storage
- PTZ control: Support more than forty protocols. For Pelco-D/P, Samsung, Panasonic
- DC 12V power supply output: 12V DC output, maximum current 2A, temporary power supply for camera
- PoE power supply output (optional): 48V PoE standard output , to provide power for POE cameras
- RS485 serial tools: Send or receive any data, or analyze PTZ protocols
- Charger: DC 12V/2A
- Languages: Simplified Chinese, Traditional Chinese, English
- Internal SD storage: 4G
- Operating temperature: -10℃ to 50℃
- Working humidity: 30%-90%
- Weight: 0.9kg

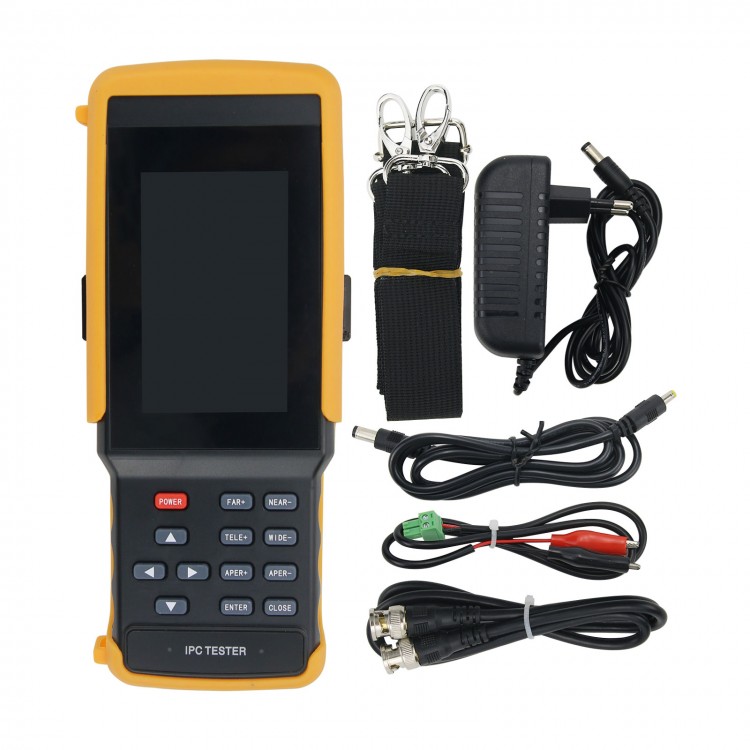

Package Included:
- 1 x IPC9300
- 1 x Tool Bag
- 1 x RS485 Control Cable
- 1 x Charger
- 1 x Power Supply Output Conversion Cable
- 1 x BNC Video Cable

Note: Cable finder is not included in the package.
