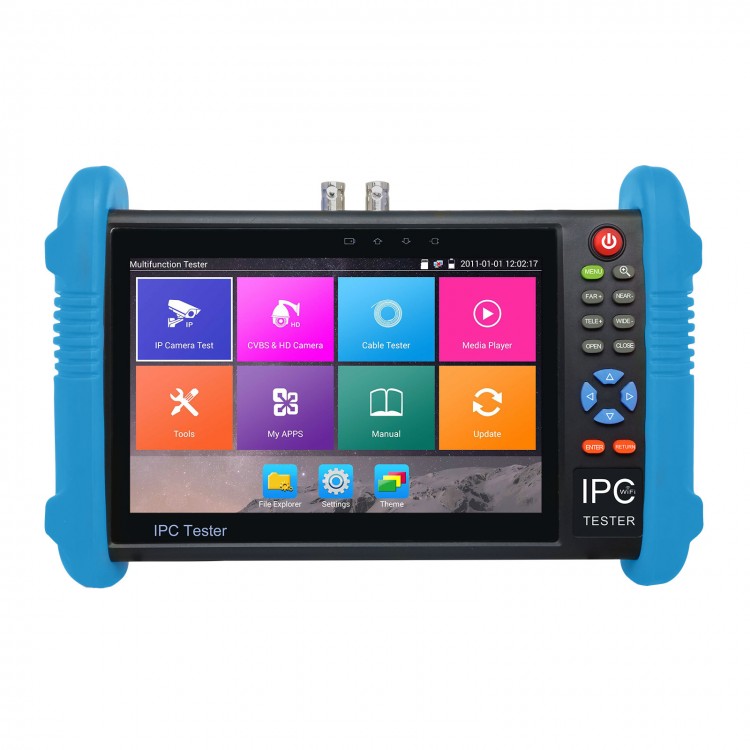

IPC9800Plus CM 7" IP CCTV Tester Monitor IP Analog Camera Tester H.265 4K Video Testing Support ONVIF Wifi POE Android System

IPC9800Plus CM 7" IP CCTV Tester Monitor IP Analog Camera Tester H.265 4K Video Testing Support ONVIF Wifi POE Android System

English User Manual: Click here

TIPS: Please choose express delivery because the product includes battery.

Description:
This is the version,  IPC9800Plus CM, IPC9800Plus version with cable tracer and multmeter function.

The 7 inch touch screen IP camera monitor is designed for maintenance and installation of IP cameras, analog cameras, TVI, CVI AHD, SDI cameras, as well as testing 4K H.264 /4k H.265 camera via mainstream, The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons make the IP camera tester very user- friendly.

The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP address searching. You can use the blue cable tracer to locate individual connected cables from a bundle of cables. Test LAN cable for proper connection termination. Other functions include providing 24W PoE power to your camera, HDMI IN and out, CVBS loop test , testing IP and analog at the same time, LED Flashlight, DC 12V 2A power output and much more. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers or technicians.

Features
- New 7 inch IPS touch screen cctv tester,1280*800 resolution.
- H.265&H.264, 4K display via mainstream.
- IP and analog testing at the same time.
- In HDMI IN mode, It can converter test from analog to digital with dual test window IP & HDMI IN or Analog & HDMI IN * (Optional)
- RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter.
- Screen acquisition, long press the key "enter", can collect screen interface and save it in any time
- 12V power input test
- "TesterPlay" app, support Tester, PC and mobile phone display at the same time. The android version mobile phone install "TesterPlay " app, or install VLC player in the PC, can real-time receiving screen information from the tester Screen management, change function’s icons order, create new directory.
- Themes: Lite mode and normal mode can select , change the icons and desktop. background ,change sliding effect etc.
- Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot.
- Rapid video, auto scan the IP camera address, via one key to view the image.
- Screen lock : password lock and pattern lock are optional.
- Office, quick office app (support excel, word, ppt format) doc. Editable.
- Rapid IP scan , auto scan whole network or other network device's IP address.
- CVBS loop test , tester can receive and send the color bar generator ,to check BNC cable.
- Traffic monitoring of the tester "Lan port", display network port or WIFI connection real-time .upload and download speeds and other network parameters.
- Shortcut button, drop-down menu ,PoE power switch ,IP setting, WLAN switch , HDMI IN functions,screen lock, password lock screen or pattern lock etc.
- IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address.
- Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.
- Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera.
- DH test tool app is design for Dahua Camera test, and modify IP, user name and password parameters etc.
- ONVIF camera test, support 4K.
- It is used unique hardware decoding, display image from the 4K camera via mainstream.
- You can select sub-stream to test higher resolution  camera.
- ONVIF IP camera video testing.
- Compatible with H.265/H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION, and ACTI Customized service are available.
- Built in Wi-Fi, can receive image from wireless camera, as well as ONVIF and customized IP cameras.
- SDI digital camera image display, record and screen snapshot * (Optional)
- HD CVI camera image display, zoom, video record and playback ,Coaxial PTZ control and call camera OSD menu * (Optional)
- HD TVI camera image display, zoom, video record and playback ,Coaxial PTZ control and call camera OSD menu * (Optional)
- AHD camera image display, zoom, video record and playback, Coaxial PTZ control and call camera OSD menu * (Optional)
- HDMI signal output, supports up to 1080P.
- Analog camera image display, auto adapt and display the video format of NTSC/PAL.
- Support more than 30 protocols, such as PELCO-P,PELCO-D,SAMSUNG etc.
- Video image digital zoom to view the image in greater detail.
- Snapshot function allows you to save the current image as a JPG file in the SD card.
- Built in enhanced image generator, send the color, pure blue and black image, test monitor transmission channel and debug display device, observe whether there are light spots or black spots on the monitor.
- LED Flashlight.
- 8GB Micro SD card included.
- LCD screen brightness/contrast/color Saturation adjustable.
- Visual fault locator, to test fiber's bending and breakage * (Optional)
- Optical power meter, test fiber loss and value * (Optional)
- Digital Multi-meter , DC and AC voltage measurement, Resistance measurement Continuity test, Diode measurements, Capacitance measurement * (Optional)
- Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images).
- PEAK video signal level, SYNC signal level, Color burst chroma level measurement,test video signal attenuation*(Optional)
- Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the connected cable from mess cables.*(Optional)
- Ping test, PING is the most conventional network debugging tools; it is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct.
- In digital IP surveillance applications, if the IP camera's IP address is not known, the device cannot be used. An IP address scan can quickly search for the connected IP camera or other network device’s IP address.
- The PoE voltage test can test for PoE voltage when a POE switch is supplying POE power to IP camera.
- TDR cable test, test cable open circuit and short-circuit .* (Optional)
- Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the sequence of wires will be displayed.
- Support RS485,rate 600 - 115200bps adjustable.
- PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device.
- PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position.
- DC5V 2A power output for USB charging (No USB data exchange, voltage only)
- PoE power output, supply temporary power for PoE camera.
- DC5V 2A power output, as a power bank.
- Audio input and output, test and output the audio signal.
- 7.4V Lithium Ion Polymer Battery ,Working time lasts 10 hours, after charging for 6 ~7 hours.

Function:

H.265 mainstream test
With the new hardware decoding, display the image from the 4 K H. 265 camera.

IPS display and touch screen operation
7 inch IPS touch screen cctv tester , 1280*800 resolution.

Intelligent interface
You can select "Lite mode or "Normal mode". In normal mode, self-define desktop, press functions icons to enter screen management status. You can move the icon to any pages; self-define the number of icons in any page,Make interface sample and individuality.

HDMI HD digital signal input  ( *Optional )
HDMI digital input , support resolution 720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p. Digital video recorder and other devices can display images of the tester through the HDMI input.

RJ45 cable TDR test
RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter.

Screen acquisition
Screen acquisition, long press the key "enter", can caollect screen interface and save it in any time

12V power input test
show the current adaptor input voltage and power.

TesterPlay
"TesterPlay" app, support Tester, PC and mobile phone display at the same time. The android version mobile phone install "TesterPlay " app, or install VLC player in the PC, can real-time receiving screen information from the tester

It can converter test from analog to digital with dual test window IP & CVBS.
Dual test window ,IP & HDMI IN or Analog & HDMI IN.

Theme
Set function apps background, you can select 4 different colors at the same time. Set the desktop and application interface background, you can choose pure colors or custom pictures. You also can change RGB to set color. When you choose sliding effect, "three-dimensional, folding, left and right folding, rotation, ombre effect" are optional.

Rapid video
Auto scans whole network IP address, by one key to detect all network cameras and auto display the images.

Wireless WIFI
Built in Wi-Fi, can receive WIFI network camera images (ONVIF or customized camera) or network data, etc. create Wi-Fi hotspot.

Screen lock
You can choose password Lock screen, pattern Lock screen or "NO".

Office Software
Built in Quick office app ,can edit the documents, spreadsheets, and presentations etc.

Speed IP exploration
Search IP address of the connected IP camera or other network equipments in whole network segment.

Traffic monitoring
Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters.

Drop-down menu
Press and slide at right top right corner twice to open shortcut menu. The shortcut menu includes POE power output, IP settings, Wi-Fi, HDMI IN, CVBS, Video OUT, LAN, Brightness, settings etc.

CVBS loop test
"TV out" testing app, it can send and receive color bar generator through the tester's video out and video in".

IP discovery
IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address.

Rapid ONVIF
Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.

Hik test tool
Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera.

DH test tool
DH test tool app is design for Dahua Camera image test, modify IP, user name and password parameters etc.

IP camera test
The device is designed for ONVIF IP camera testing. It can display the image from an IP camera and change the IP address.
The 7 inch 1280x800 screen display allows the user to view the image with a sufficient screen size.
 With the ONVIF tool, you can display the image from an IP camera and use the PTZ functions. Currently the IP camera tester supports more than 80 brands IP cameras, such as ACTi, Dahua, Hikvision, Samsung, Honeywell and many more.
OEM service is available. Users can send us the IP camera for our engineers try to add the protocols to the tester, or send us the mobile apps (Android version. APK files) to install in the tester.

Analog camera test
Supports PAL & NTSC formats. The LCD screen's back light brightness, video image brightness, contrast and color saturation are all adjustable.

Video level meter
Perform NTSC and PAL video amplitude signal measurements for PEAK to PEAK , SYNC levels, and COLOR BURST chroma level

Video signal PEAK to PEAK level:
- For NTSC format, the video signal level is 140±15IRE
- For PAL format, the video signal level is 1000±200mV
- If the level is too low, it will cause the image to lose quality and limit the distance it will travel over cable. If the level is too high, it will lead to wash out of the image
- SYNC level: Testing the amplitude of the video sync pulse to verify if the video level is correct.
- For NTSC format, the SYNC level is 40 ± 5IRE
- For PAL format, the SYNC level is 300 ± 35mV
- If the level is too low, it will cause the image to not frame out properly. If the level is too high, it will lead to a poor quality
- COLOR BURST level: Testing the color burst level will determine if the burst signal is sufficient to trigger the displays color producing circuit. Burst will diminish in amplitude over longer cable runs and can get fall below the threshold for the video display to show a color image.
- For NTSC format, the Chroma standard level is 40 IRE
- For PAL format, the Chroma standard level is 280mV

If the Chroma level is too low, the color will not be as deep, and some details of the image will get washed out. If the Chroma level is too high, there will be spots on the image. If the coaxial cable is too long, it will reduce the chroma level

PTZ controller
Displays and allows for analysis of analog video and controls Pan/tilt/zoom function of PTZ analog cameras. For PTZ testing, setup the controlling parameters from the meter to match those of the camera: e.g. PTZ protocol (PELCO-D, etc.), communication port (RS-485, etc.), baud rate, PTZ camera ID and pan/tilt speed.

Enhanced Color bar generator
The tester sends out color bars via its BNC output to the monitor. This is used to test for a problem in the cable going from the camera back to the monitoring area.
12VDC 2A power output port and 5VDC 2A USB power port
The unit can power a camera with its DC 12V 2A power output. Also included is a built in DC 5V 2A power output port used to charge USB devices. NOTE: This USB port is for charging only and has no ability to transfer data.

Audio testing
Test the audio from mic level input devices. Connect the tester and mic level device with the audio cable. Supports audio recording and output. to monitor and / or record audio.

Cable tester
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as display the serial number of the cable tester kit.

PTZ data analysis
Search the Control protocol code from Multifunction keyboard or DVR by RS485 interface, test the PTZ control command data whether received anomaly and RS485 data transmission.
Screen displays 16 hexadecimal codes such as
PELCO-P:A0 00（Add） xx xxxxxx AF xx
PELCO-D:FF 01（Add）xx xxxxxxxx

Digital Image zoom on the monitor
Set image zoom up to 4X to get a closer look at all the image detail. Supports analog and many IP cameras
Video screenshot, record and playback
Collect the video image displayed and save as a JPEG file. You can also record and save the current video to the SD card. The recorded files can play directly via Media player or under the function of "Playback".

Improvement color bar generator
Video generating, the PAL/NTSC multi-system color bar video generator and pure blue /black colorful images, by receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for Video transmission of the field tests, such as optical video transmitter and receiver, video cable etc.
The new function color bar can test the image whether shift.
The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc.

DHCP dynamic address assignment
Built in DHCP server: Dynamically assign IP address for the IP camera or network device.

Access the dynamic IP address
The IP tester can directly access a dynamic IP address assigned from its DHCP server and use it as the tester’s IP address. No need to set a IP address manually.

Multiple network IP Cameras Test
Supports Multi- segmented Static IP address setting which can simultaneously test different segments of IP network Cameras.

IP address scan
The IP address scan can quickly search for connected IP cameras or another network device IP address.

PING Test
PING is the most conventional network debugging tool,it is used for testing if the connected IP camera or other network equipment is working normally and the IP address is correct.

Port Finder
The tester will send signals to make the connected PoE port flicker at a set frequency. This will enable the installer to easily and quickly find the connected port for an Ethernet cable.

PoE Test
Test the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in an Ethernet cable.

Digital Multi-meter  ( *Optional )
The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the DC and AC voltage measurement, AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking. It is easy operation and professionally accurate.

Visual fault locator  ( *Optional )
Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.

Optical Power Meter  ( *Optional )
The IP camera tester adopts the most advanced handheld instrument specific integrated chip , achieve ultra-low power operation, with the 7 TFT-LCD High-definition screen display ,five wavelength calibration points 1625nm,1550nm ,1490nm , 1310nm , 1300nm , 850nm.Linear or nonlinear optical power display, it can measure the optical power value, and also be used for Relative measurement of optical fiber link loss. It is necessary tool for fibre-optic communication, cable television system and security system maintenance.

LED Flashlight
Press the LED On/Off button to use the LED flashlight.

TDR cable open circuit and short circuit measurement  ( *Optional )
TDR cable testing, accurately measure BNC cable, network cable, controls cable’s open circuit and short-circuits location. It greatly improves working efficiency.

WIFI
With built in WIFI, you can view the video from a wireless camera (ONVIF or customized camera) or connect to a Wireless network.

SDI camera test  ( *Optional )
SDI digital video surveillance testing, support 720p 60fps / 1080p 30fps / 1080i 60fps digital camera image test and video image zoom, record, snapshot, photo viewer and video playback .

CVI camera test  ( *Optional )
HD CVI video surveillance testing, support720p 25,30,50,60fps / 1080p 25,30fps, when CVI signal input, HD CVI camera image display, zoom, view photos, video record and playback, Coaxial PTZ control and call up the camera OSD menu.

TVI camera test  ( *Optional )
HD TVI video surveillance testing, support720p 25,30,50,60fps/ 1080p 25,30fps,2048x1536 18 fps , when TVI signal input , HD TVI camera image display, zoom ,view photos ,video record and playback .Coaxial PTZ control and call up the camera OSD menu.

AHD camera test  ( *Optional )
AHD video surveillance testing, support 720p 25,30fps/ 1080p 25,30fps, when AHD signal input , AHD camera image display, zoom ,view photos ,video record and playback ,Coaxial PTZ control and call up the camera OSD menu.

PoE power supply
Supports PoE 802.3at power at 48V and up to 24W.

HDMI signal output
The HDMI output port supports up to 1080p 60Hz resolution output.
Network bandwidth testing
The network bandwidth test needs two IP tester meters to test bandwidth: one as a transmitter, the other as a receiver.

Cable Tracer (cable search)  ( *Optional )
Cable identification by use of an audio signal. This function enables the blue cable tracer to find the connected cable from a bundle of cables with an audio tone.
Screen image rotates 180 degrees
You can manually rotate the display 180 degrees using the settings.

FTP Server
Start the tester’s Wi-Fi or connect the tester’s LAN port to the network. Once the tester is online, start its FTP Server and directly access files from the tester’s SD card. This also allows for the user to upgrade the tester firmware.


Packing list
- Tester
- Adaptor DC12V 2A
- Network cable tester
- Polymer lithium ion battery (7.4V DC 5400mAh)
- BNC cable
- RS485 cable
- Output Power cable
- Multi-meter test leads one pair of red and blac
- Audio cable
- Safety cord
- Tool bag
- Manual
- 8GB SD card
