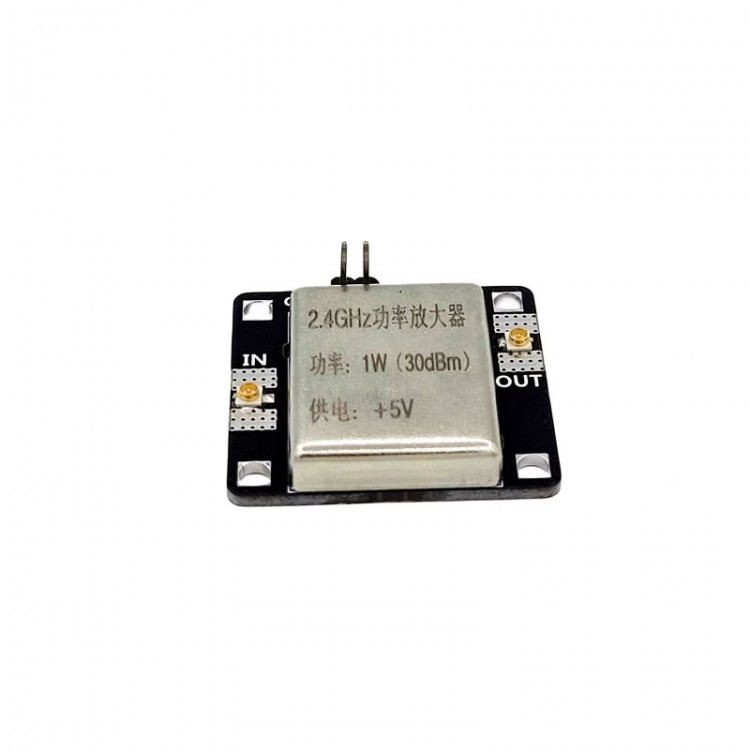

IPEX Input and IPEX Output 2.4GHz 1W 50ohm RF Power Amplifier Module High Quality PA Module RF Accessory
Specification:
- Frequency bandwidth: 2.4GHz - 2.483GHz
- Impedance: 50ohm
- Gain: 36.7dB
- Maximum input power: 13dBm (20mW)
- Maximum output power: 30dBm (1W)
- SWR: < 1.5
- DC power supply: 5V/500mA
- Connector type:
Input connector: IPEX
Output connector: IPEX
Package Included:
- 1 x Power Amplifier Module
Note:
- This module must first connect the input and output terminals, and then connect the DC power supply.
- When supplying DC power to the module, be sure to connect the DC positive and negative poles correctly. Do not reversely connect it, which may cause module damage.
