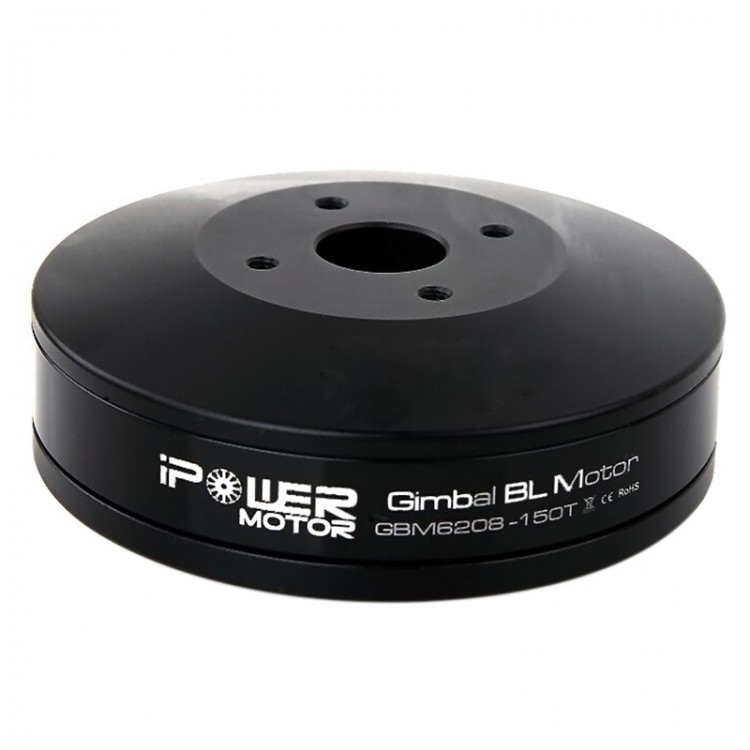

iPower GBM6208H-150T Hollow Shaft Sealed Case Motor for DSLR Canon 5D MARKII MARKIII Camera
Description:
- The GBM62 series motor by iPower Motors are the ultimate brushless gimbal motor for DSLR / CANON 5D MARKII,MARKIII Cameras.This motor is designed for large scale
- multi-rotor platforms looking to lift Red Epic & DSLR sized gear – 4KG/cm Torque.The principle of the camera stabilization using brushless direct drive motors In fact,gimbal
- based on BLDC motors is very similar to regular gimbal based on hobby servo.
Specs:
- Model NO.:GBM6208H-150T
- Weight:188g
- Motor Dimensions:dia 67mm x hgt 25mm
- Stator Dimensions:dia 62mm x hgt 8mm
- Copper wire(OD):0.25mm
- Configuration:24N22P
- Resistance:13.2 ohms
- Wind type and termination method:Star style
- Pre-wound with 150 turns,Hollow shaft
- Camera range: 950-2300gCamera range: 600-1550g
