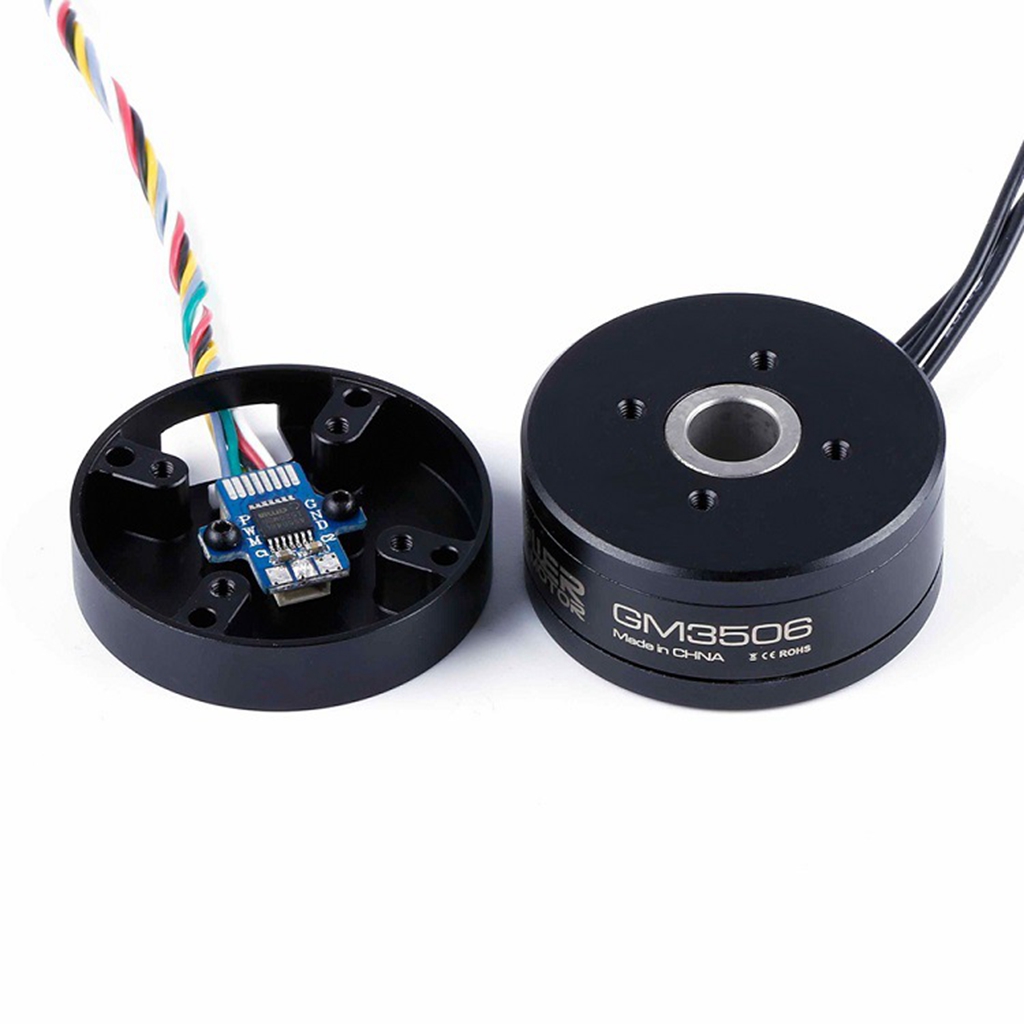

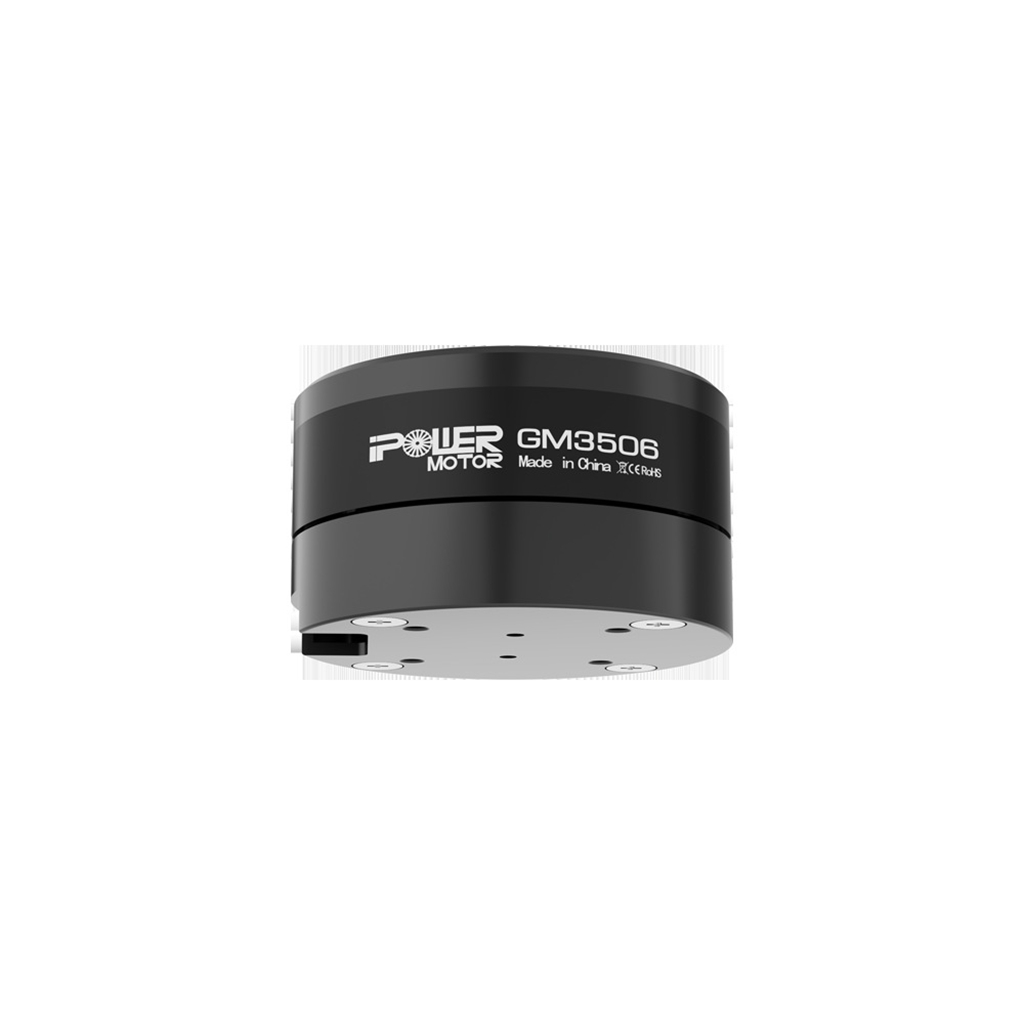

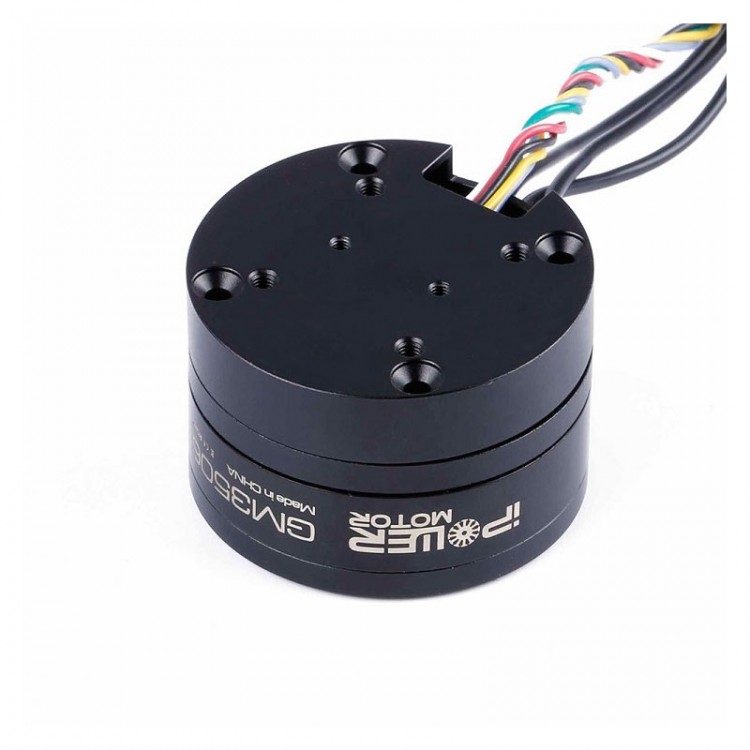

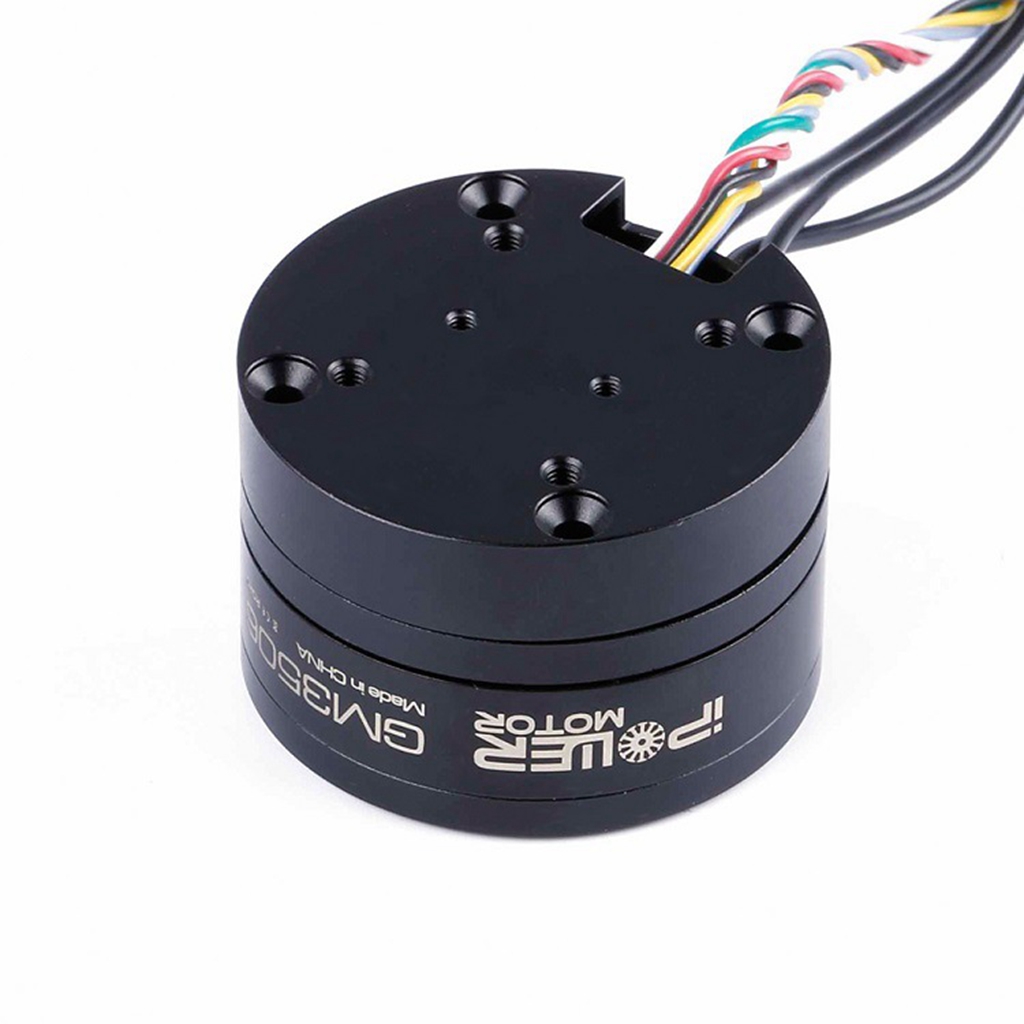

iPower Gimbal Brushless Motor GM3506 Hollow Shaft with AS5048 Encoder for Gimbal Z-axis Stabilization System

iPower Gimbal Brushless Motor GM3506 Hollow Shaft with AS5048 Encoder for Gimbal Z-axis Stabilization System

Description:
- The 3 axis stabilization gimbal system that relies on both active motor-driven components and passive inertial stabilization. Passive stabilization relies on the principles of inertia (tendency of an object to resist change in its motion) and requires that the camera is well-balanced in the Pan, Tilt, and Roll Axes. Active stabilization refers to the techniques of using sensors to measure the camera’s Pan, Tilt, and Roll movements and counteract those movements using motors attached to the 3 axes.
- The GM35 series motor by iPower Motors is the ultimate brushless gimbal motor for SLR and similar weight Cameras. This motor is designed for large-scale multi-rotor platforms looking to lift SLR sized gear - 1.5KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.
- Encoders are special sensors that are added to each brushless motor of a Gimbal Stabilizer allowing the system to more accurately track motor position for increased stability which in turn also increases battery efficiency.

Features:
- Easy to do gimbal tuning, no need to do much calibration work any more.
- Power saving, 5 times long working time than gimbal without encoder system.
- Twin IMUs.
- Faster response, motor torque increasing instantly, no bug for difficult rotating angle any more.

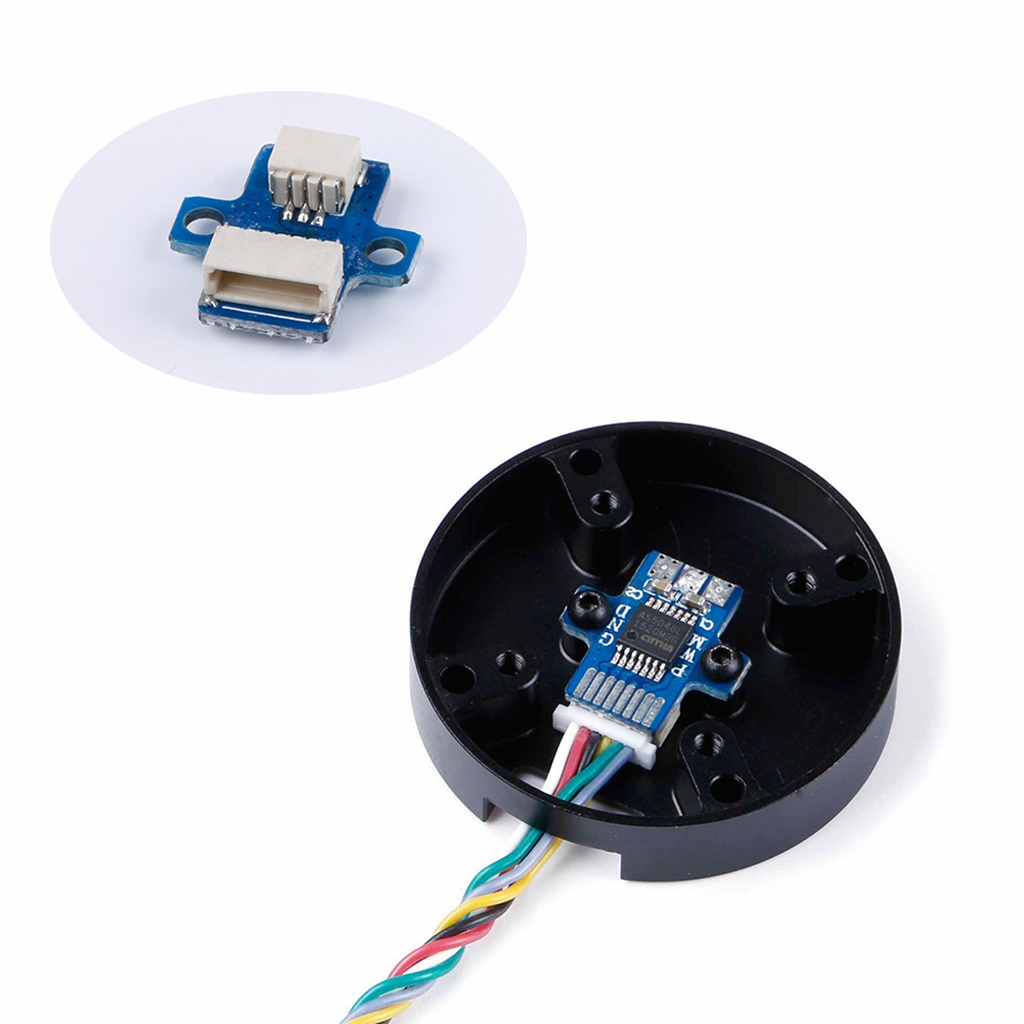

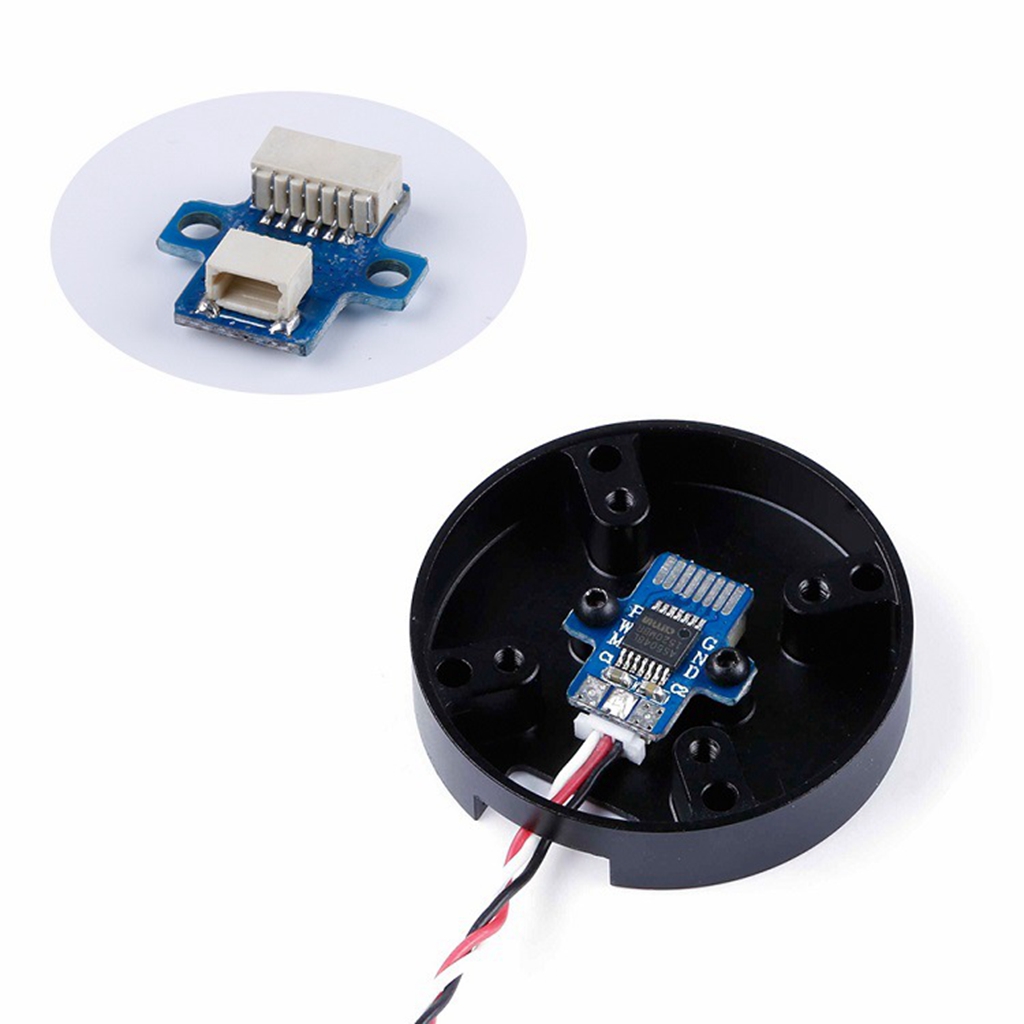

- Encoder chip AS5048A.

Specification:

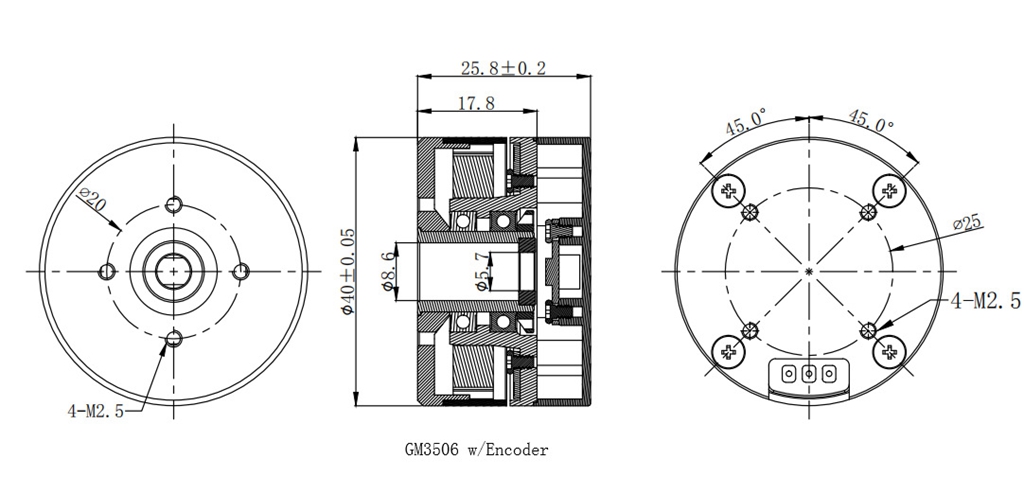

- Model: GM3506
- Weight: 80.3g
- Motor Dimensions: 40 x 18mm
- Stator Dimensions: 35 x 6mm
- Hollow Shaft: inner diameter 6mm
- Copper wire(OD): 0.21mm
- Configuration: 12N14P
- Resistance: 14.3 ohms
- Wind type and termination method: Star style
- Pre-wounded with 130 turns
- Bottom mounting holes: 16 and 19mm center to center
- Top mounting holes: 12mm center to center
- Camera range: 200-400grams

Package Included:
- 1 x Brushless Motor
