iPower iPM2212-920KV 0.2mm Silicon Steel Sheets for DJI Phantom 2 Vision (CW+CCW)

iPower iPM2212-920KV 0.2mm Silicon Steel Sheets for DJI Phantom 2 Vision (CW+CCW)

Description:

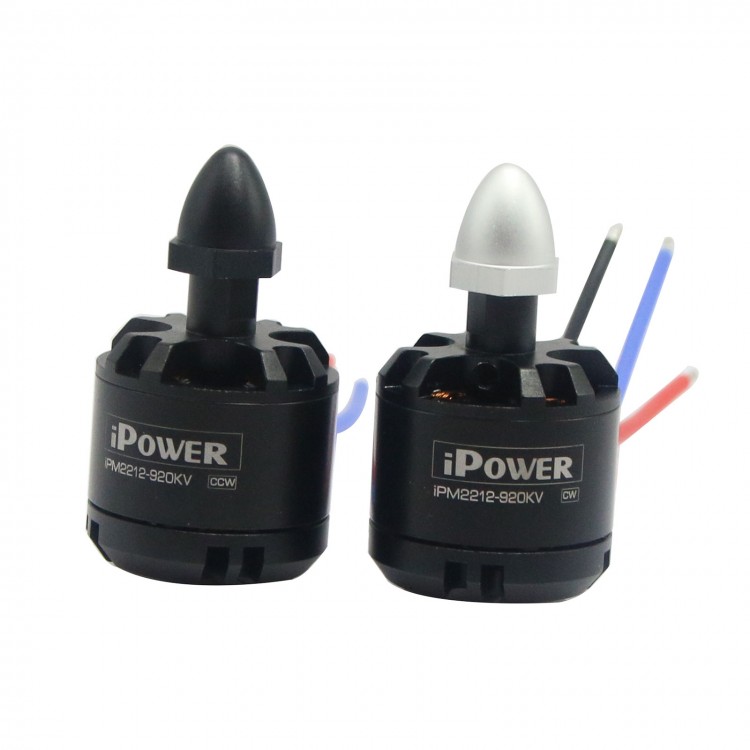

- iPower iPM2212-920KV clockwise and counter clockwise motor with M3 screws for DJI Phantom 2 Vision.

Features:
- EZO Japanese bearing
- 0.2mm silicon steel sheets
- Dynamic balance
- CNC MACHINED ALUMINUM CASE
- 180 degree magnets

Specification:
- Motor Kv 920 RPM / Volt
- Stator Diameter 22.0 mm
- Stator Thickness 12.0 mm
- No. of Stator Arms 12
- Magnet Poles 14
- No-Load Current (Io/10V) 0.45 Amps
- Motor Resistance (Rm) 0.117 Ohms
- Max Continuous Current 14 Amps
- Max Continuous Power 220 Watts
- Weight 48 Grams
- Outside Diameter 27.7 mm
- Body Length 26 mm
- Max Lipo Cell 2-4s

Package included:
- 1 x iPM2212 920KV CW
- 1 x iPM2212 920KV CCW
- 1 x Prop nut

Thrust Test
Cell count        No-load current         RPM                   Battery/Prop            Amps         Watts        Thrust
       3S                      0.4                     10530                  Lipox3/ 8045             7.3A            81w          591g
       4S                      0.41                   15090                  Lipox4/ 8045            12.5A          185w         980g
       5S                      0.45                    22180                 Lipox5/ 8045            18.5A           342w       1310g
