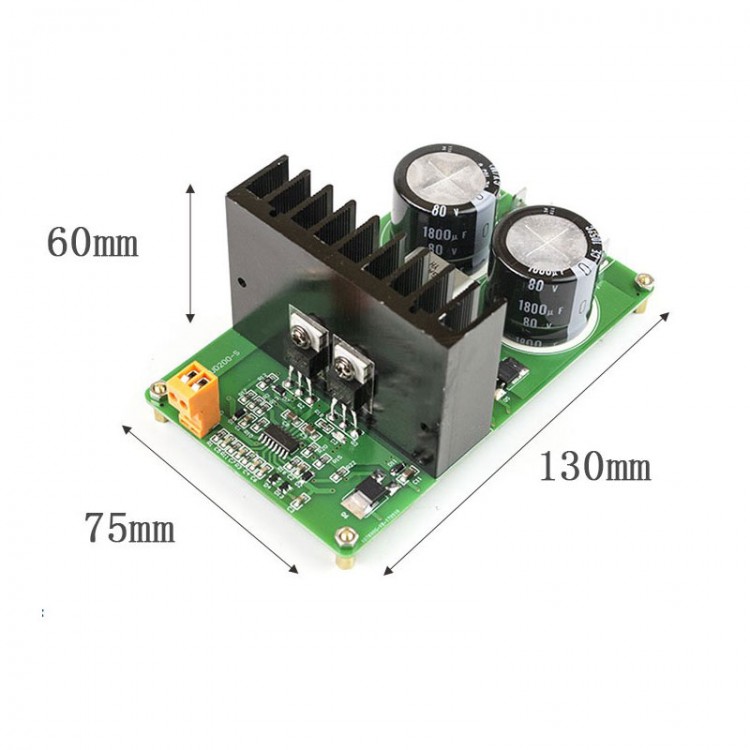

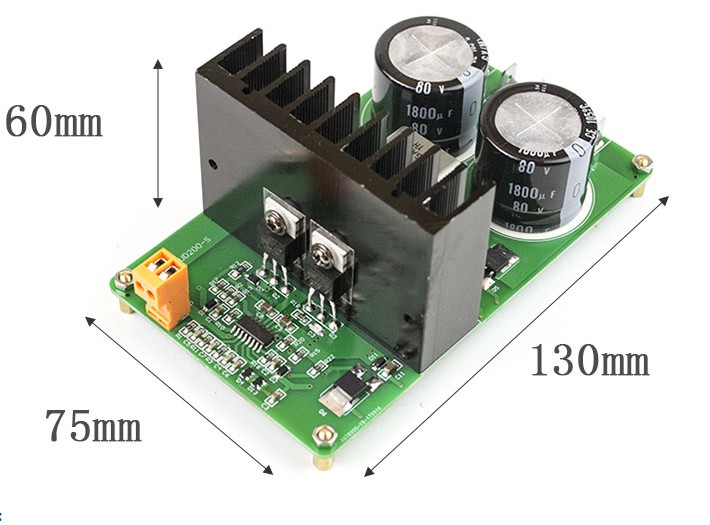

Mono power amplifier board, only one pcs
- IRAUD200 amplifier has a very balanced sound, bass deep vigorous, dive deep, accurate and sweet midrange, treble clear, good extension. Whether it is a bookcase or floor box, can easily deal with, with small size, high efficiency, power and other advantages.
This listing is for Upgarde edition

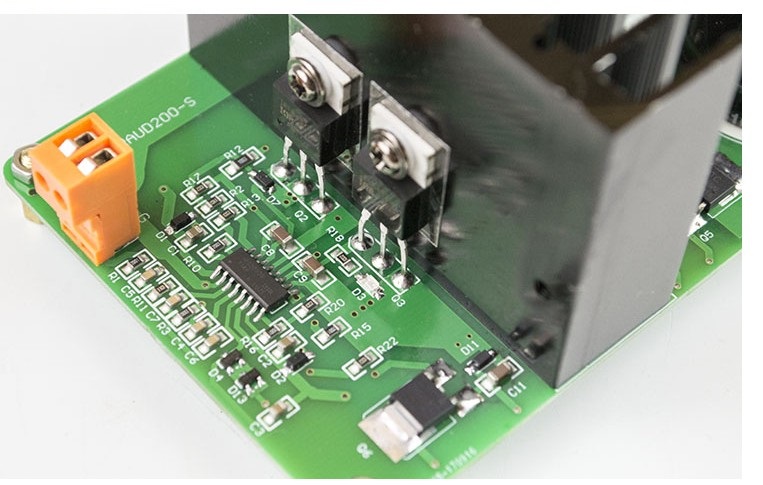

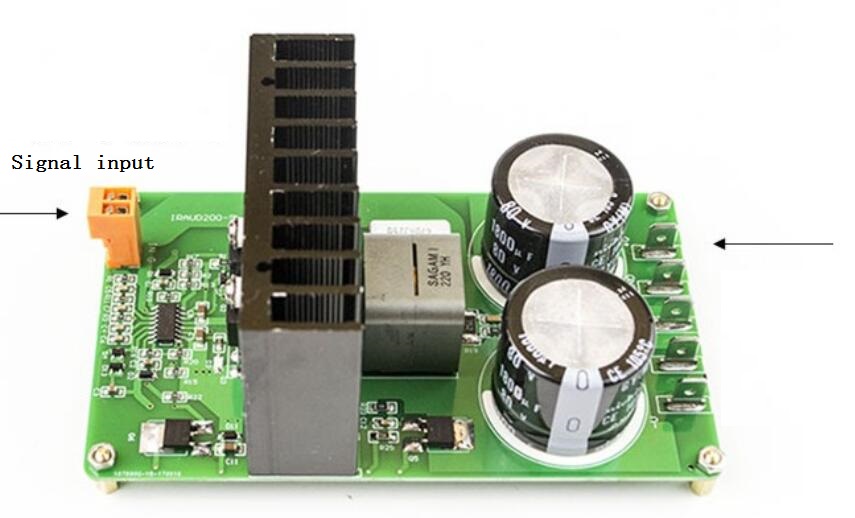

| Edition | Power filter capacitor | Output filter inductor | power tube |
| Standard | Nichicon1800uf/80v |
7G17A |
IRFB23N20D |
| Upgrade | Nichicon1800uf/80v | SAGAMI7G23A | IRFB4227 |
| Deluxe | ELNA capacitor 10000uf/80v | SAGAMI7G23A | IRFB4227 |
Specifications
- Use voltage range: DC ± 30 to ± 80V (when the supply voltage is less than ± 30V, two 3K / 3W resistors need to be replaced by 1.5K / 3W resistors) It is recommended to use AC voltage below 52V, because the mains voltage will fluctuate, Point margin Caixing.
- Maximum output power: 350W / 8Ω distortion <0.1%
- (± 85V power supply) 700W / 4Ω distortion <0.1%
- (± 70V power supply) 900W / 2Ω distortion <1%
- Overvoltage protection: ± 85V
- Overheat protection: 85 ° C
- Voltage magnification: 33 times
- Input Sensitivity: 1.5V (rms)
- Input impedance: 6KΩ
- Frequency response: 0-50KHz ± 3dB 10W / 8Ω
- Residual noise voltage: 200uV
- Dynamic range:> 100dB
- Efficiency: Class D amplifier efficiency is very high, of course, when the output power of different efficiency, high efficiency, high efficiency, 200W / 8Ω output to 90% or more.
- Distortion (THD + N):
Distortion
Test conditions / remarks
THD + N @ 1W
0.02% Power supply voltage ± 80V 1KHz sine wave
THD + N @ 10W
0.01% Power supply voltage ± 80V 1KHz sine wave
THD + N @ 100W
0.01% Power supply voltage ± 80V 1KHz sine wave
THD + N @ 200W
0.02% Power supply voltage ± 80V 1KHz sine wave
THD + N @ 300W
0.03% Power supply voltage ± 80V 1KHz sine wave
THD + N @ 500W / 4 ohms
0.03% Power supply voltage ± 80V 1KHz sine wave
The following is the actual curve (for reference)
