Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $147.51 | $144.50 | $139.98 | $133.96 | Contact US |

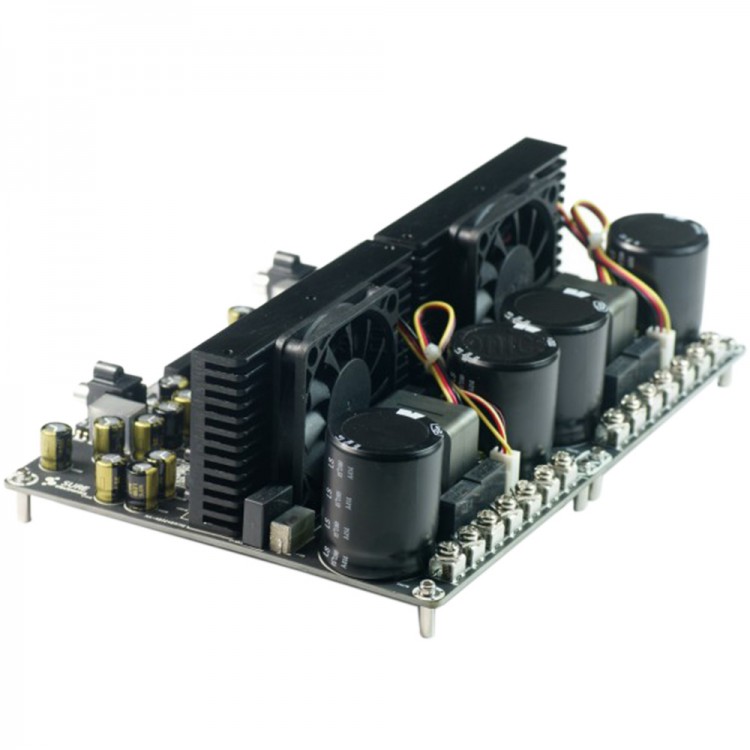

IRS2092 2x500W Class D Digital Audio Amplifier Board Dual-Channel High-Power Stereo HiFi Amp

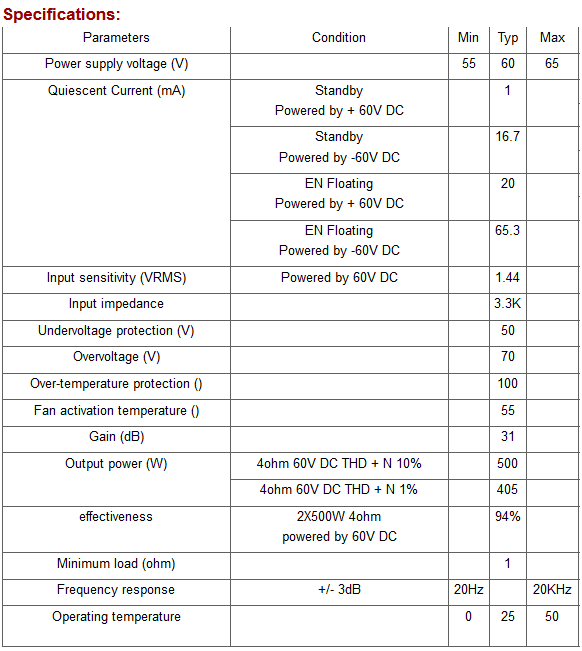

Parameters:
- Weight: 1152g
- Size: 160.02mm (L)×228.60mm (W)× 73.66(H)2mm
- PCBThickness: 2mm
- Power range:+/- 55V-65V DC
- Recommend power: DC 60V
- Analog single-ended signal inputs (RCA)
- Distortion: 0.009%100W
- Dynamic range:102dB
- Frequency response:20Hz-30kHz
- SNR:92dB
- Residual noise: 280uV
- High Output Power: 500W 4 60V DC THD + N 10%
- 400W 4 60V DC THD + N1%
- Operating temperature: 0~50 deg C
- Storage temperature: -20~ 105 deg C
Features:
- Copper thickness is 2Ounce,Double thickness of copper
- Mounting holes for easy installation
- A variety of wiring for easy connection
- Have a great and intelligent radiator cooling fan
- Over or low voltage protection
- Over-current protection
- Short-circuit and over-temperature protection
Applications:
- AV Receiver
- Active Speakers
- Replace subwoofer
- Musical Instrument Amplifier
- PA
- Automotive external speaker system
- Background music system
- Family DIY
Package included:
- 1 x Amplifier Board
