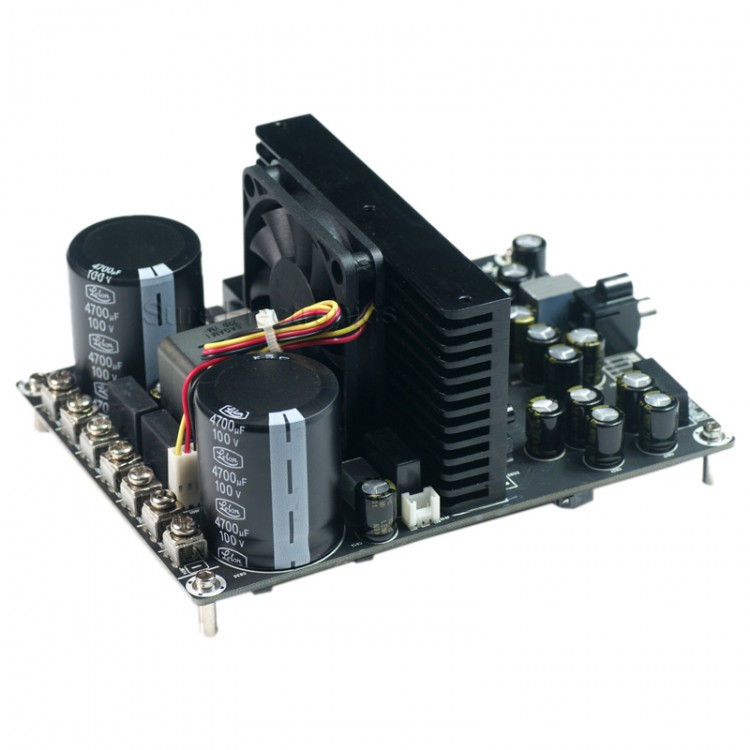

IRS2092 Class D 1x2000W Super Power Digital Audio Amplifier Board HIFI Mono Amp
Parameters:
- Weight:580g
- Size: 160.02mm (L)×228.60mm (W)× 73.66(H)2mm /6.3inchX9inchX2.9inch
- PCBThickness: 2mm
- Power range:+/- 55V- +/- 88V DC
- Analog single-ended signal input: RCA
- High output power: 2000W2ohm 60V DC THD + N 10%
- 1680W 2ohm 60V DC THD + N1%
- Operating temperature: 0~ 50 deg C
- Storage temperature: -20~ 105 deg C
Features:
- Copper thickness is 2Ounce,Double thickness of copper
- Three pairs of MOSFET
- Mounting holes for easy installation
- A variety of wiring for easy connection
- Have a great and intelligent radiator cooling fan
- Over or low voltage shutdown
- Over-current protection
- Short-circuit and over-temperature protection
Applications:
- AV Receiver
- Active Speakers
- Replace subwoofer
- Musical Instrument Amplifier
- PA
- Automotive external speaker system
- Background music system
- Family DIY
Package included:
- 1 x Audio Amplifier Board
