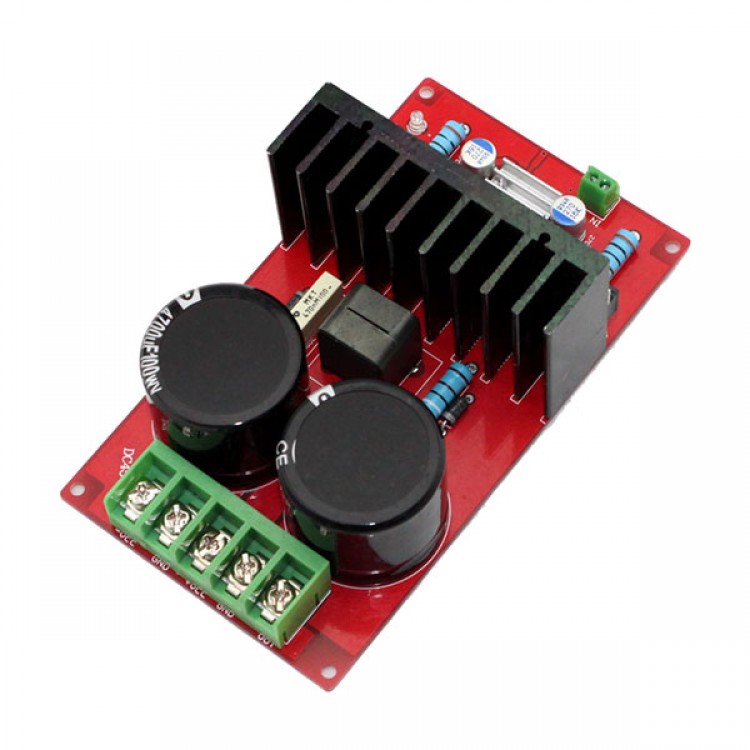

IRS2092 Single Channel Amplifier Board Large Power Amplifier
Description:
- Adopting original IRS2092, IRFB4227
- Electrolysis capacitor signal main circuit adopt famous brand, main filter capacitor adopts capacity 4700UF/100V*2, providing continuous driving support
- The resistor adoptts precision 1% SMT resistor, main loop adopts precision +-5% metal film resistor, guarantee the good SNR
- Adopting 20A large current screen inductance, gurantee the sound is strong and clear
- With temperature protection circui. When the temp reaches 75 degree, it will automatically disconnect the output
Technical parameters:
- Voltage range: +-55V
- Max output power: 200W/8Ω, sound distortion <0.1% , 350W/4Ω sound distortion<0.5%
- Voltage amplifying times: 32 times
- Input sensitivity: 1.6V (Effective value)
- Input impedence: 14KΩ
- Frequency response: 0-50KHz ±1dB
- Left noise voltage: 200uV
- Dynamic range: :>100dB
- PCB size: 33*75MM
