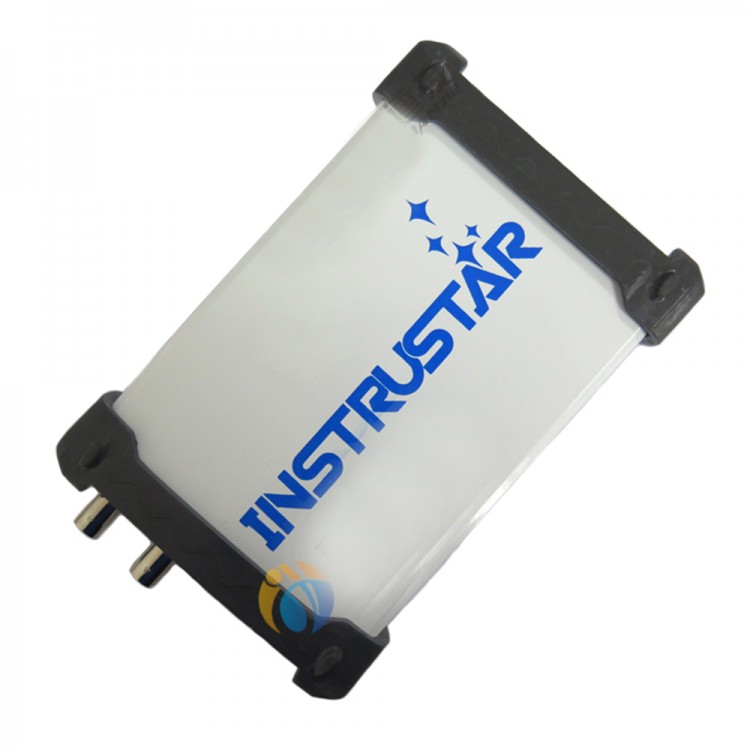

ISDS210B Virtual PC USB Oscilloscope Spectrum Analyzer with DDS Signal Source Generator 100M Sample Rate 40M Bandwith

ISDS210B Virtual PC USB Oscilloscope Spectrum Analyzer with DDS Signal Source Generator 100M Sample Rate 40M Bandwith

Description:
ISDS210A dual-channel digital oscilloscope, is a product taken "low-cost, high-performance" as the design goals and it is well-designed bandwidth 40M, 100M sampling rate, 2 channels,supporting alternately X,alternating Y and XY mode dual-channel virtual oscilloscope, spectrum analyzer,and has a 1KHz reference square wave output interface. Devices communicate with a PC via high speed USB2.0.

Features:
- Streamlined design, compact size, USB2.0 interface, no external power source.
- More suitable for notebook computer, used easily on business.
- A small size (mm): 150 (L) x100 (W) x30 (H), easy to carry.
- High refresh rate, high sampling rate, 100MS / s real-time sampling.
- The software supports: Windows XP (SP3), Win7 (32 bit), Win7 (64-bit).
- Waveforms: add, subtract, multiply, X-Y display.
- The waveform data can be output to EXCEL, BMP, OSC by time and voltage.
- FFT spectrum analysis.
- Full-function signal generator, and supports adjustable voltage amplitude and offset.
- A computer can connect many DSO.
- Secondary development library that provides an example of VC development.

Digital Storage Oscilloscope:
- Channels: 2
- Impedance: 1MΩ 25pF
- Coupling: AC / DC
- Vertical resolution: 8Bit
- Voltage range:-16V ~ 16V(probex1), -160V-160V(probex10)
- Vertical accuracy: ± 3%
- Timebase range: 1ns-20s
- Vertical adjustable: 10mV/div-10V/div (1MΩ)
- Input protection: Diode clamping
- Auto Setup: Yes (10Hz to 40MHz)
- Trigger mode: automatic, continuous, single
- Trigger Slope: + / -
- Trigger level adjustable: Yes
- Trigger Type: Analog
- Trigger source: CH1, CH2
- Memory Depth: 512KB/CH
- Single Bandwidth: 40MHz
- Maximum real-time sampling rate: 100MS / s
- Sampling Rate Selection: Yes
- Vertical mode: CH1, CH2, ADD, SUB, MUL
- Display Mode: X alternately, Y and X-Y mode alternately
- Cursor measurements: Yes
- Cursor display: frequency, voltage
- Waveform Save format: Osc (private), Excel and Bmp

Spectrum Analyzer
- Channels: 2
- Bandwidth: 40MHz
- Algorithm: FFT (18 window), correlation, power spectrum, supports Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman,
blackman_Harris, tukey, Nuttall, FlatTop, Bohman,, Parzen, Lanczos, kaiser, gauss,
dolph_chebyshev as many as 18 kinds of windows;
FFT data points per channel :8 -1048576

Filter:
FIR supports arbitrary amplitude frequency sampling method and Rectangle, bartlett, triangular,
cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop,
Bohman, Parzen, Lanczos, kaiser, gauss window function method;
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "oval" type;

Package included:
- 1 x ISDS210B oscilloscope
- 2 x Oscilloscope probe
- 1 x USB cable
- 1 x BNC to Clip cable
- 1 x CD
