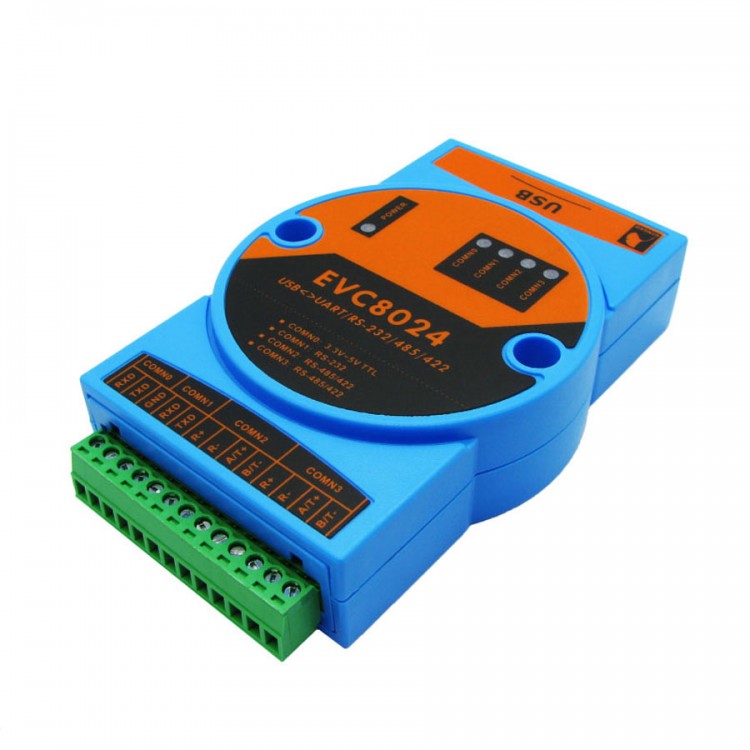

Isolated Converter High Speed Isolation Converter USB to RS232 RS485/422 TTL EVC8024

Isolated Converter High Speed Isolation Converter USB to RS232 RS485/422 TTL EVC8024

Description:
EVC8024 high-speed USB↔TTL, RS-232, RS-485/422 isolated interface converter (hereinafter referred to as converter), adopts full electrical isolation scheme, and uses proprietary technology to achieve high-speed USB -Two-way, independent data exchange of 485/422. The converter is powered by USB. The converter has a built-in 3000V dual isolated power module, which makes the power input and communication interface completely electrically isolated, providing hardware guarantee for safe transmission and interface performance.

Features:
- High-Speed Data Transmission up to 8M. Single chip USB to four independent serial ports. USB bulk data transmission. Support 7/8 bit data, 1/2 stop bit and odd / even / flag / space / no parity. Independent baud rate generator.
- Four serial ports are independent of each other, but can be used simultaneously.
- Ultra stable USB to serial port solution. British original imported chips. The active crystal oscillator drives the clock.
- High reliability, high speed and low power consumption. Multi-chip magnetic coupling isolation.
- Brand isolated power module. 3000V isolation voltage. Flame-retardant and heat-resistant epoxy resin package. EN60950, UL60950 certification.
- High standard interface transceiver. Transient voltage has been a differential transceiver. Only half-bus voltage drive is needed.
- Three-level comprehensive interface protection. Anti-static, current limiting, lightning protection.
- Upgrading reserved interface. LCD screen can be added to display data and power supply monitoring.
- High-end professional USB cable. Pure copper core, long life. EU ROHS environmental protection certification.
- Machine placement technology, mass production. Superb craftsmanship.
- Complete accessories.

Technical Parameters:
- Baud rate: TTL (110 ~ 5Mbps), RS-232 (110 ~ 1Mbps), RS-485 / 422 (300 ~ 8Mbps)
- Isolation scheme: adopts high performance magnetic couple isolation scheme
- Output interface: Standard TTL, RS-232 (full duplex), RS-485 (half duplex), RS-422 (full duplex)
- Isolation voltage: 2500Vrms (brand voltage modules with 3000V isolation voltage)
- Interface solution: Ultra-stable FT4232 chip
- Load performance: RS-485 can be connected to 256 nodes (if supported by the load)
- Output protection: Lightning protection + TVS protection + filter network
- Power supply range: 4.75-5.25V
- Work instructions: Power supply instructions, sending instructions, receiving instructions
- Operating system: Support for Windows, Linux, MAC, Android, Windows CE
- Working temperature -40℃ to 85℃ industrial grade
- Mechanical size: 112 * 70 * 26 mm (LxWxH)

Package Included:
- 1 x Set of Isolator Converter
