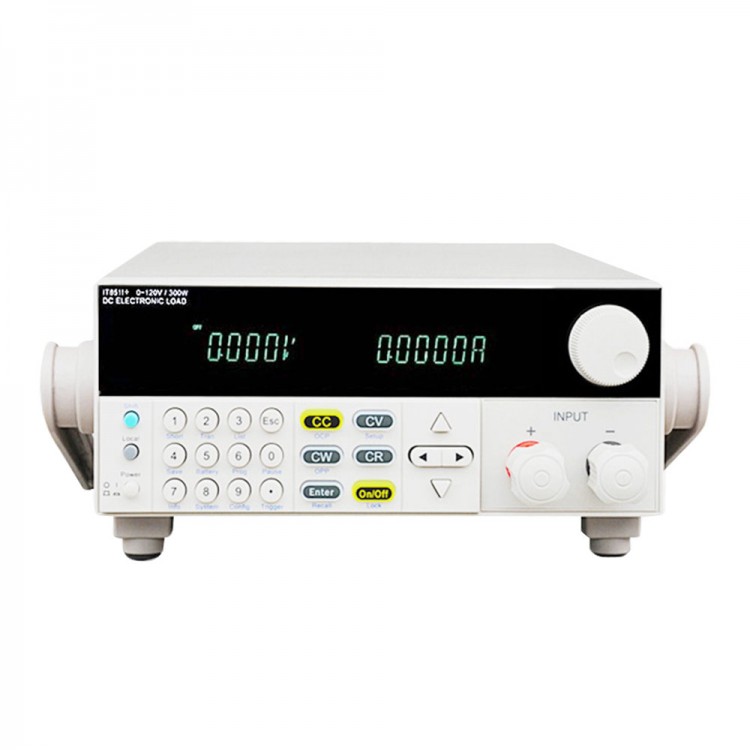

IT8510 1mV 0.1mA Programmable Electronic Load 120W 120V 20A Short Circuit Battery Tester
Description:
The IT8500 series electronic load is used for design, manufacturing, and evaluation of DC power supplies, batteries, and power components and so on.
The electronic load contains a processor, serial port connector, front-panel keypad and VFD, and other circuits common to the other entire load module.
IT8500 series electronic load could work in constant current (CC) mode, constant voltage (CV) mode, or constant resistance (CR) mode and constant power (CW) mode.
Features:
- High accuracy and high resolution.
- Capable to work with constant current (CC), constant voltage (CV), constant resistance (CR) mode and constant power (CW) operation.
- Serial port-DB9-RS232 port.
- Triggered input and measurement functions.
- Controlled by the keypad on the front panel.
- Built-in pulse generator for continuous, pulsed, and toggled transient mode operation.
- Over voltage, over current, over power, and over temperature protection.
- Fan speed controlled by temperature.
- VFD display
- Short circuit test
- Battery testing function
Specification:
- Rated input: 120W/ 120V/20A
- Constant current mode CC :
Range: 0-3A 0-20A
Accuracy: 0.05%+0.1% FS 0.1%+0.1% FS
Resolution: 0.1mA 1mA
- CV mode:
Range:0-18V 0-120V
Accuracy: 0.05%+0.02% FS 0.05%+0.025% FS
Resolution: 1mV 10mV
- CR mode:
Range: 0.1-99Ohm 100-4KOhm
Accuracy: 1%+0.3% FS 1%+0.8% FS
Resolution: 0.01Ohm 1Ohm
- CW mode:
Range: 0-100W 100-120W
Accuracy: 1%+0.1% FS 1%+0.1% FS
Resolution: 1mW 10mW
- Voltage test:
Range: 0-3A 0-20A
Accuracy: 0.1%+0.1% FS 0.2%+0.15% FS
Resolution: 0.1mA 1mA
- Short ciucuit test: About 20A, About 40mOhm
- Operating Temperature: 0-40 deg C
- Battery testing: capacity: MAX 999AH
- Dynamic test mode: 0.1Hz-1Khz
- Size: W*H*D 214.5*88.2*354.6mm
Package included:
- 1 x Tester
- 1 x Power cable
- 1 x Manual
