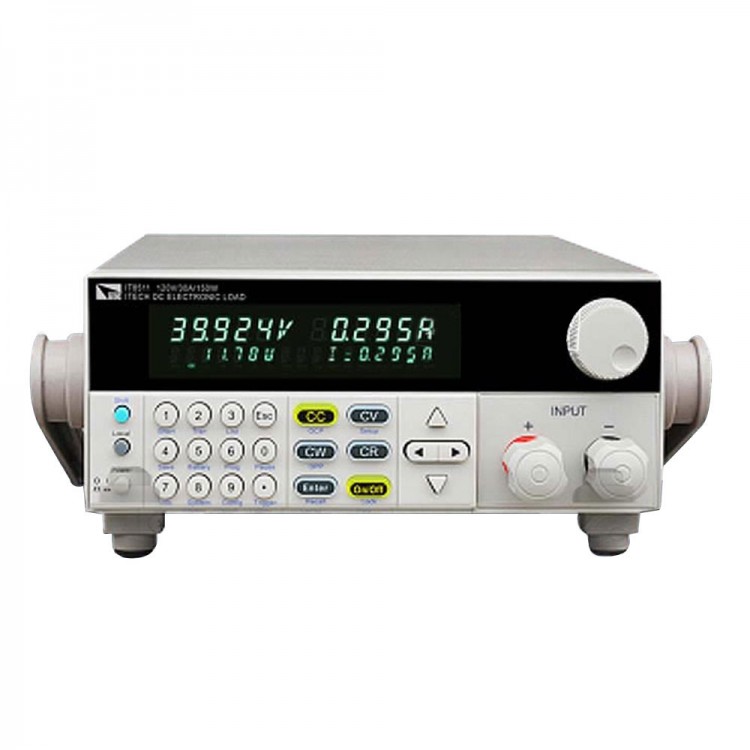

IT8511+ Programmable DC Electronic Load 150W 120V Short Circuit Battery Tester for CV CC CR CP

Availability: In stock, usually dispatched in 1 business day

  • Price:$393.89
  • Price in reward points: 3939 Reward Points: 39
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $386.01 $378.13 $366.32 $350.56 Contact US
Quantity:

IT8511+ Programmable DC Electronic Load 150W 120V Short Circuit Battery Tester for CV CC CR CP

Description:

IT8500+ series (150W~3000W) single-channel programmable DC electronic loads are designed for middle &high-end applications.They can be offered as multiple solutions according to customer's design and testing requirements.The user can perform online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies, batteries,DC - DC converters,battery chargers,provides user the best testing solution.

Features:
- Dynamic mode:up to 10KH
- Resoulution of voltage and current:0.1mV/0.1mA
- Four working modes:CV/CC/CR/CP
- Remote sensing function
- Battery test,automatic test,OPP test,OCP test funcitions.
- Storage for 100 sets
- Short-circuit function
- Current monitoring funciton
- Power off memory functio
- With rotary coding switch to make an easy operatio

Specification:
- Rated voltage: 0-120V
- Rated current: 0-3A 0-30A
- Rated power: 150W
- Minimum operating voltage: 0.14V-3A  1.4V-30A
- CV mode:
  Range:0-18V  0-120V
  Accuracy: -+(0.05%+0.02% FS)    -+(0.05%+0.025% FS)
  Resolution: 1mV   10mV
- Constant current mode CC :
  Range: 0-3A  0-30A
  Accuracy: -+(0.05%+0.05% FS)  -+(0.05%+0.05% FS)
  Resolution: 0.1mA 1mA
- CR mode:
  Range: 0.05-10Ohm 10-7.5KOhm
  Accuracy: 0.01%+0.08S     0.01%+0.0008S
  Resolution: 16BIT
- CW mode:
  Range: 150W
  Accuracy: 0.1%+0.1% FS
  Resolution: 110mW
- Dynamic mode:
  T1&T2: 50uS-3600S/res:1 uS
  Accuracy: 1us+100ppm
- V-Measurement:
  Range: 0-18V  0-120V
  Resolution: 0.1mV   1mV
  Accuracy: -+(0.025%+0.025% FS)  -+(0.025%+0.025% FS)
- A-Measurement:
  Range: 0-3A 0-30A
  Resolution: 0.1mA   1mA
  Accuracy: -+(0.05%+0.05% FS)
- W-Measurement:
  Range: 150W
  Resolution: 10mW
  Accuracy: -+(0.1%+0.1% FS)
- Over power protection: 160W
- Short circuit resistance: 45mOhm
- Size: W*H*D 214.5*88.2*354.6mm

Package included:
- 1 x Tester
- 1 x Power cable
- 1 x Manual
