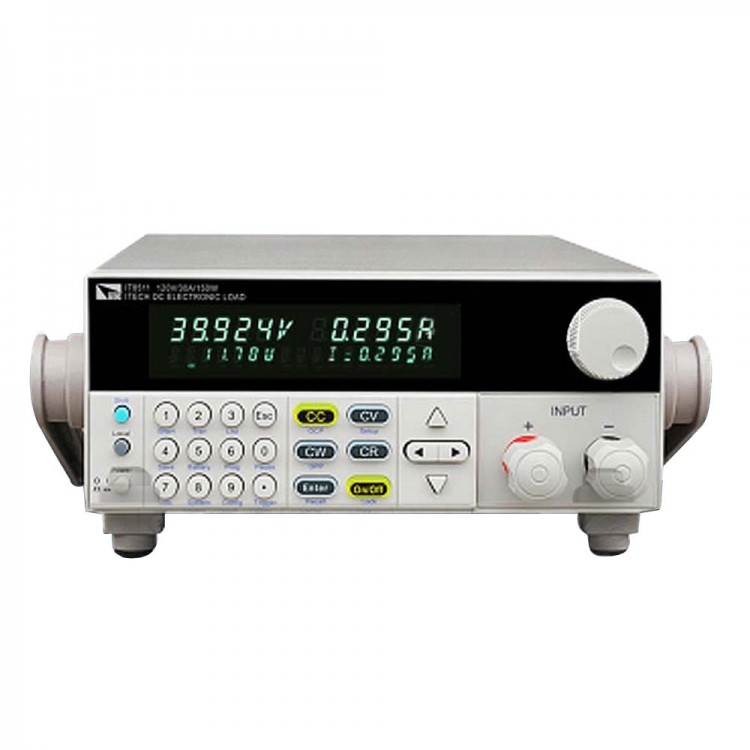

IT8511+ Programmable Electronic Load 300W 120V 30A Short Circuit Battery Tester for CV CC CR CP
Description:
High performance and affordable single channel DC electronic load. IT8500 DC electronic loads provide you with the flexibility to test a wide range of applications from power supply, charger to battery.
The high resolution voltage(1mV), current(0.1mA) measurement system provides both accuracy and convenience, and eliminates the need for a DMM,external shunts and wiring.IT8500 DC electronic loads are the most cost effective choose in your power testing application.
Features:
- High accuracy and resolution 1mV/0.1mA
- OCP / OVP / OPP / OTP Protection
- CC / CV / CR / CW Operation Mode
- VFD display
- Software for remote control
- Battery test and short test function
- Intellective fan cooling
- Convenient numeric keypad
- GPIB / USB / RS232 Interface Optioal
- Remote sensing capability
- Self-test at power-on
- Auto test function without Computer
Package included:
- 1 x Tester
- 1 x Power cable
- 1 x Manual
