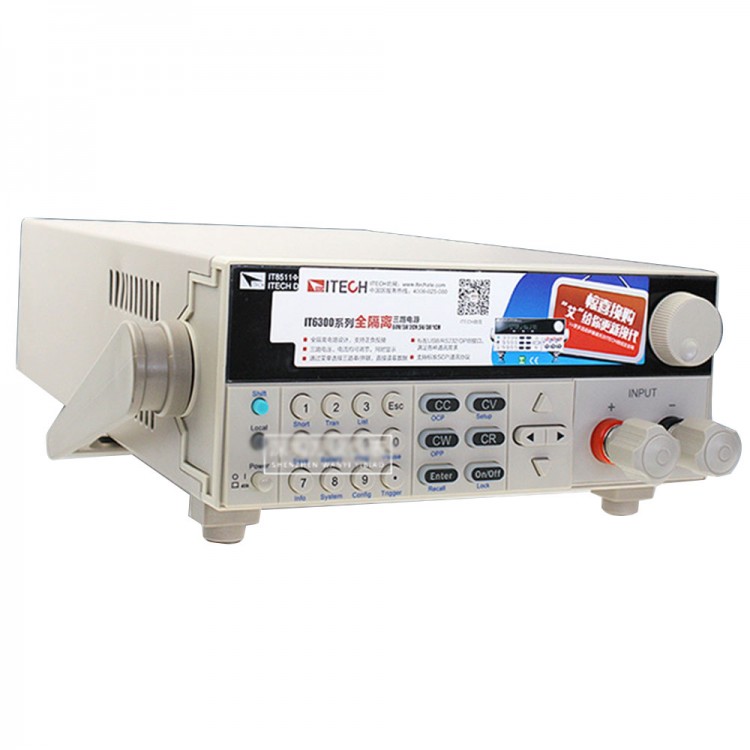

IT8511A+ Single Channel Programmable DC Electronic Load VFD 150V 30A 150W Tester
Description:
High performance and affordable single channel DC electronic load. IT8500 DC electronic loads provide you with the flexibility to test a wide range of applications from power supply, charger to battery. The high resolution voltage(0.1mV), current(1mA) measurement system provides both accuracy and convenience, and eliminates the need for a DMM, external shunts and wiring.
Features:
- VFD display.
- Four modes: CC, CV, CR and CW
- Up to 0.1mV and 1mA resolution for voltage and current
- Auto test, short-circuit test, dynamic test.
- Up to 10KHz dynamic mode.
- Battery test function.
- Over-power test function.
- Current monitoring output terminals.
- Up to 40KHz measuring speed for voltage and current.
Package included:
- 1 x DC Electronic Load
