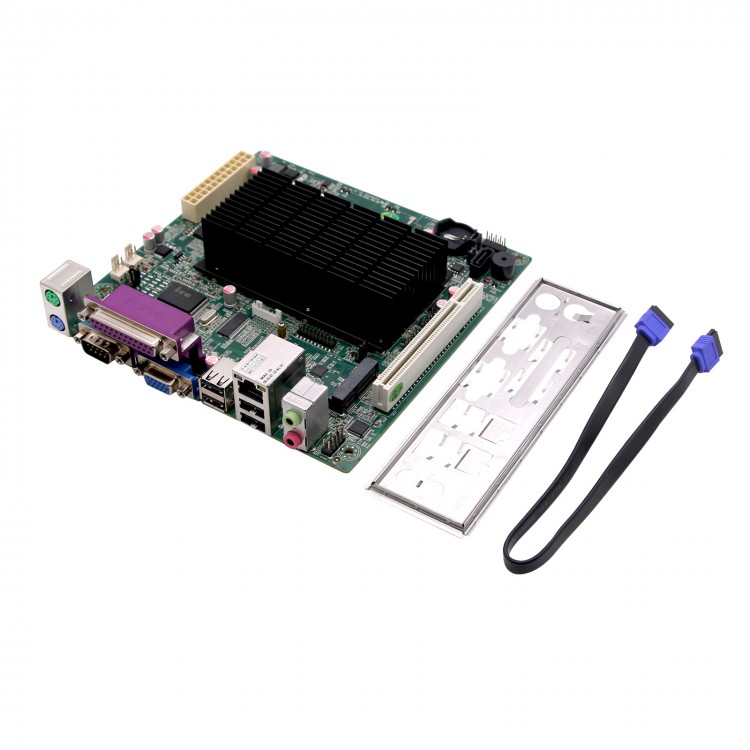

ITX-D525 Intel ATOM CPU D525 Motherboard INTEL MINI ITX POS ATM All in One Mainboard PCI Slot

ITX-D525 Intel ATOM CPU Motherboard INTEL MINI ITX POS ATM All in One Mainboard PCI Slot

Specification:
- Model:  ITX-D525
- Size: 170*170mm
- Central processor: Intel Atom D525 1.8GHz dual-core low-power processor
- FSB FSB : N / A
- Chipset : Intel Atom D525+ NM10
- RAM: 1*20pin DDRIII SO slot,support 066/1333/800,maximum capacity to 2GB
- Function: Intel GMA 3150 Graphics card(share memory 128/224mb
- Expansion slot: 1*PCI slot;2*Mini-PCIE interface (support WIFI and SSD hd)
- Sound: Onboard Realtek ALC662 HD audio chip
- Storage Standard : 2 x SATA 3Gb / s disk interface
- Net function: 1* Realtek RTL8105E
- Internal input / output interfaces :
  1* ATX 20PIN power supply
  1*PS/2 Mouse & 1 * keyboard connector
  1*COM built-in interface
  1* double standard audio interface (support Line out, MIC)
  1*VGA interface
  1* parallel interface
  1*RJ-45 network cable interface
  4*USB 2.0 interface
- Built in I/O interface:
  4*USB 2 interface
  1*6pin 1*LVDS1 power interface
  2*10pin 1*LVDS interface (support single LVDS 18bit)
  1*COM port
  1* front audio connector (2*5 pumped 8)
  1*CPUFAN and SYSFAN interface
  1* VGA interface (2*5pin)
  1*FP1 (2*5pin front panel function button and indicator light interface)
- BIOS: 8MB DPI Flash ROM AMI
- Watchdog: Support hardware reset function (level 256, 0~255 seconds)
- Power type: ATX power supply
- Operating Temperature : -10 C ~ 60 C
- Humidity : 0 to 95 % relative humidity, non-condensing

Package included:
- 1 x Motherboard
