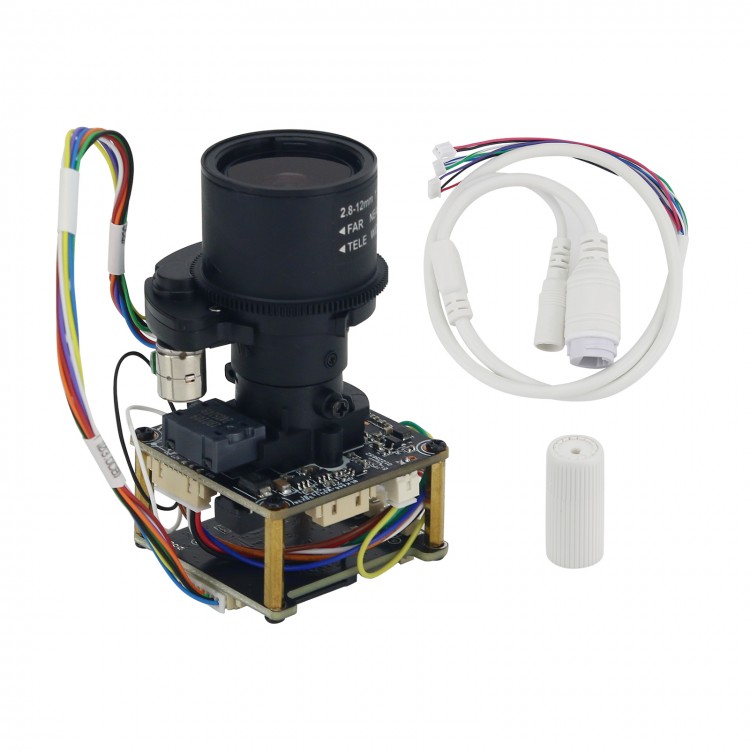

IVG-N8-AF 2.8-12mm 8MP Motorized Focus Camera Module 4X Optical Zoom Camera Module for Detection

IVG-N8-AF 2.8-12mm 8MP Motorized Focus Camera Module 4X Optical Zoom Camera Module for Detection

Features:
- Support face and humanoid detection. Other smart functions can be customized
- 8.0MP resolution, low illumination and clear and delicate image
- Equipped with YTOT 2.8-12mm automatic focus
- Advanced H.265AI/H.265+ (compatible with H.265/H.264) video compression technology, ultra-low bitrate and high definition
- Lightning protection, in line with Chinese national standard GB/T17626.5 and international standard IEC61000-4-5;
- For ONVIF protocol, it can access third-party back-ends/platforms and support mobile phone monitoring (for iOS and Android)
- Support web, CMS, central management platform software MYEYE and provide SDK development
- Support a variety of cloud technologies to achieve network penetration, front-end and back-end docking, alarm information push to mobile phones and other functions

Specifications:
- Model: IVG-N8-AF
- System architecture: embedded RTOS design, dual-core 32-bit DSP (NT98566), pure hard compression and watchdog
- Sensor: 8MP 1/2.7" SC8239 black light CMOS sensor; Color 0.0001Lux at F1.2 and black and white 0.0001Lux at F1.2
- Video processing: H.265AI/H.265+ (compatible with H.265/H.264) encoding, dual stream, AVI format; 0.1M~8Mpbs adjustable bit rate; the frame rate is adjustable from 1 to 30 frames per second
- Image output: main stream: 8MP 3840*2160 at 15fps; 5MP 2880*1616 at 25fps; 4MP 2560*1440 at 25fps; 2MP 1920*1080 at 25fps. Secondary stream: 800*448 at 25fps
- Shutter: 1/50 (1/60) sec. to 1/10000 sec
- Lens: YTOT 2.8MM-12MM motorized lens
- Day/night conversion mode: support IR-CUT, IR-CUT coil internal resistance 20 ohms, power-on time less than 200ma, and 3.5V-6V
- Noise reduction: Support 2D/3D noise reduction
- WDR: Supports digital WDR
- Automatic aperture: None
- Audio processing: G.711A codec standard, support two-way voice intercom, and support audio and video synchronization
- Audio interface: 1CH input, level 2Vp-p, impedance 1kΩ, support pickup input; 1CH output, impedance 16Ω, 30mw output power. It can be connected to headphones and amplifiers
- Network interface: 1*RJ45 network interface, 10/100M adaptive; support RTSP/FTP/DHCP/NTP/UPnP and other network protocols (combined with power interface)
- Signal interface: 1 x photo-resistor interface, 1 x IR-CUT drive interface, support photo-resistor input signal and IR-CUT and infrared lamp linkage
- Reliability: comprehensive lightning protection, in line with China's and international standards; it is stable and reliable for 7*24 hours test (including the whole machine test) at -10°C to 65°C
- Intelligent analysis: support face detection and humanoid detection; Support for customization of other smart functions
- Service functions: support WEB configuration, OSD, and motion detection; After the motion detection alarm, the center reminds, and the screen pops up linked; Support MJPEG picture collection; Support client remote monitoring software, MYEYE platform and other systems; Provide a complete SDK development kit
- For ONVIF: Yes
- Mobile phone monitoring: Support mobile phone monitoring (for iOS and Android)
- Power supply: DC12V/2A. Power consumption: ≤ 3W
- Board size: 38 x 38mm/1.5 x 1.5"
- Others: support extended POE power supply and not support one-key reset; The light board drive voltage is 3.3V

Package Included:
- 1 x Camera Module
