Product Description:
- J-Link is a USB powered JTAG emulator supporting a large number of CPU cores.
- Based on a 32-bit RISC CPU,it can communicate at high speed with the supported target CPUs.J-Link is used around the world in tens of thousand places for development and production (flash programming) purposes.
- J-Link is supported by all major IDEs such as IAR EWARM,Keil MDK,Rowley CrossWorks,Atollic TrueSTUDIO,IAR EWRX,Renesas HEW,Renesas e2studio,and many others.
- Including all models,more than 100,000 J-Links have been sold so far,making J-Link probably the most popular emulator for ARM cores and the de-facto standard.
Features:
- Direct download into flash memoryof most popular microcontrollers supported
- Supported CPUs: Any ARM7/9/11,Cortex-A5/A8/A9,Cortex-M0/M1/M3/M4,Cortex-R4,RX100/RX200/RX610/RX621/RX62N/RX62T/RX630/RX631/RX63N
- Download speed up to 1 MByte/second
- Supportsunlimited breakpointsin flash memory
- Setting breakpoints inexternalflash memory of Cortex-M systems is possible with
- J-Link'sUnlimited Flash Breakpointstechnology only.
- Supported by all major IDEs
- Supports concurrent access to CPU by multiple applications3
- Crossplatform support (runs on Windows, Linux,Mac OS X)4
- Intelligence in the emulator firmware
- Remote Server included.Allows using J-Link remotely via TCP/IP
- GDBServer included
- Production flash programming software (J-Flash) available
- Software Developer Kit (SDK) available
- Supports multiple target interfaces: JTAG,SWD
- Supports SWV/SWO (Serial Wire Viewer/Serial wire output)
- Wide target voltage range: 1.2V-3.3V,5V tolerant
- Supports JTAG chains with multiple devices
- Embedded Trace Buffer(ETB) support
- Various target adapters available,including optical isolation adapter.
- RDI interface DLL available.
- Fully plug and play compatible
- No power supply required,powered through USB
- Support for adaptive clocking
- All JTAG signals can be monitored,target voltage can be measured
- Target power supply: J-Link can supply up to 300 mA to target with overload protection
Package List:

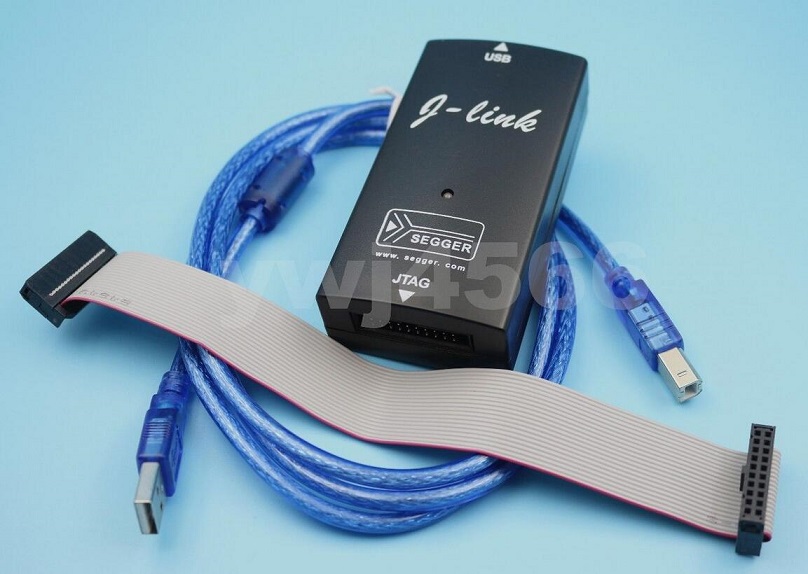

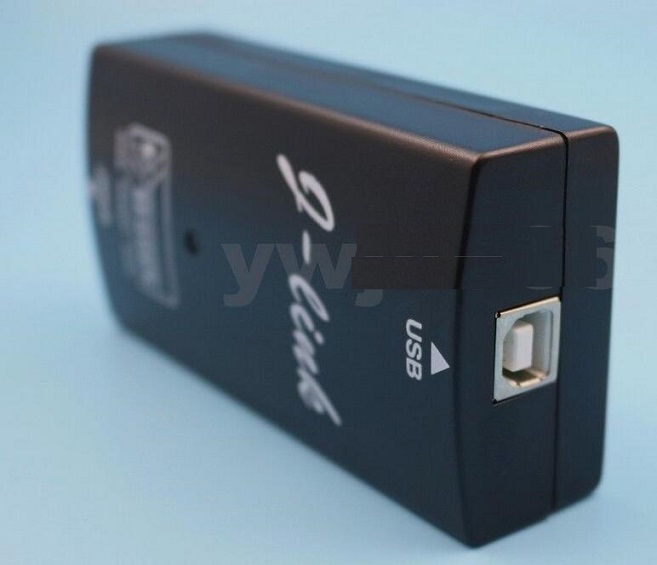

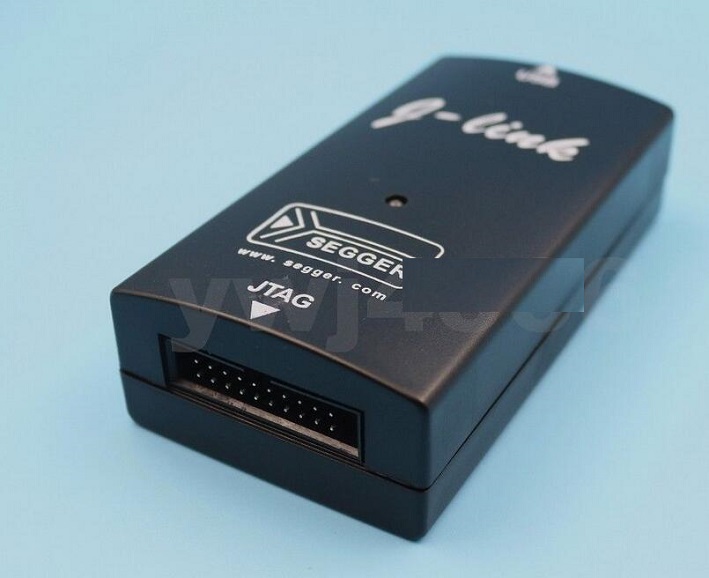

- 1 x J-link V9 ARM Emulator

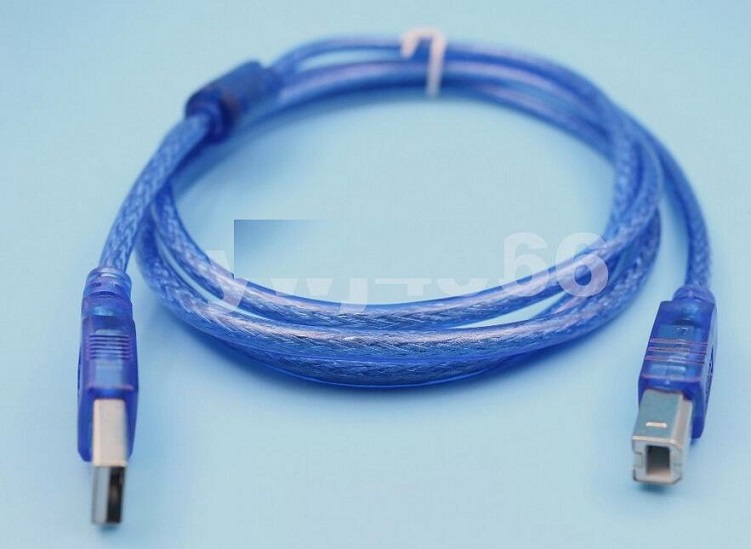

- 1 x USB Cable
- 1 x Connector Cable
