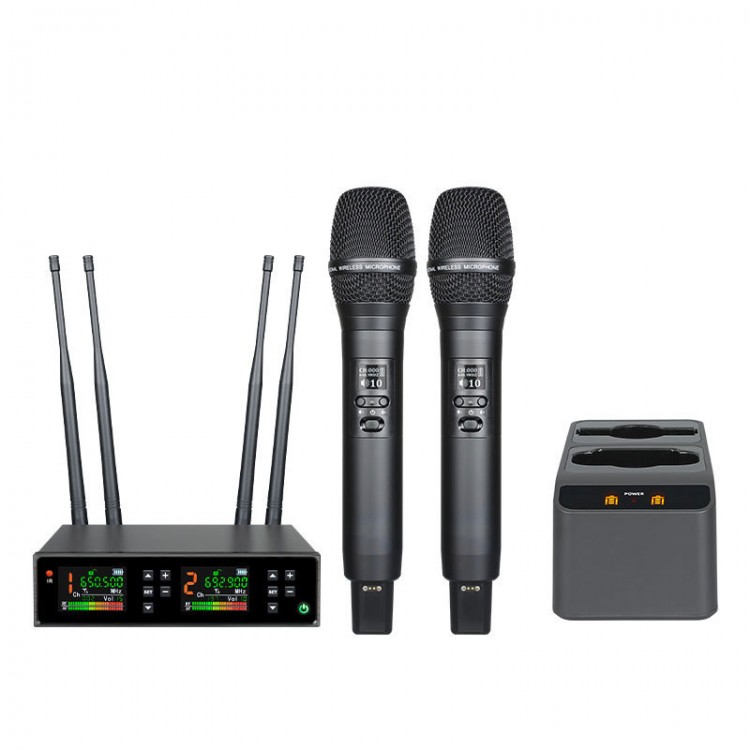

J166 Receiver + LS01 Wireless Microphone FM Dynamic Professional Digital Wireless System with Charging Stand

J166 Receiver + LS01 Wireless Microphone FM Dynamic Professional Digital Wireless System with Charging Stand

Features:
- The microphone can be directly inserted into the charging stand for charging, making it suitable for classrooms, KTV, home and other occasions.
- Dual channel four antenna, automatic search for high-quality channels, anti-interference, stable reception, and continuous frequency.
- Remote true diversity wireless microphone, capable of receiving over a distance of 200M.
- Support automatic frequency search, automatic search for interference free frequencies, with stronger stability. Microphone frequency matching operation method: long press SET frequency matching, the receiver and microphone IR are facing each other, and the frequency point on the display screen appears a dashed box.
- The microphone tube body and mic adopts separation design, with the same tube body, can be installed with capacitive or dynamic coil mic.

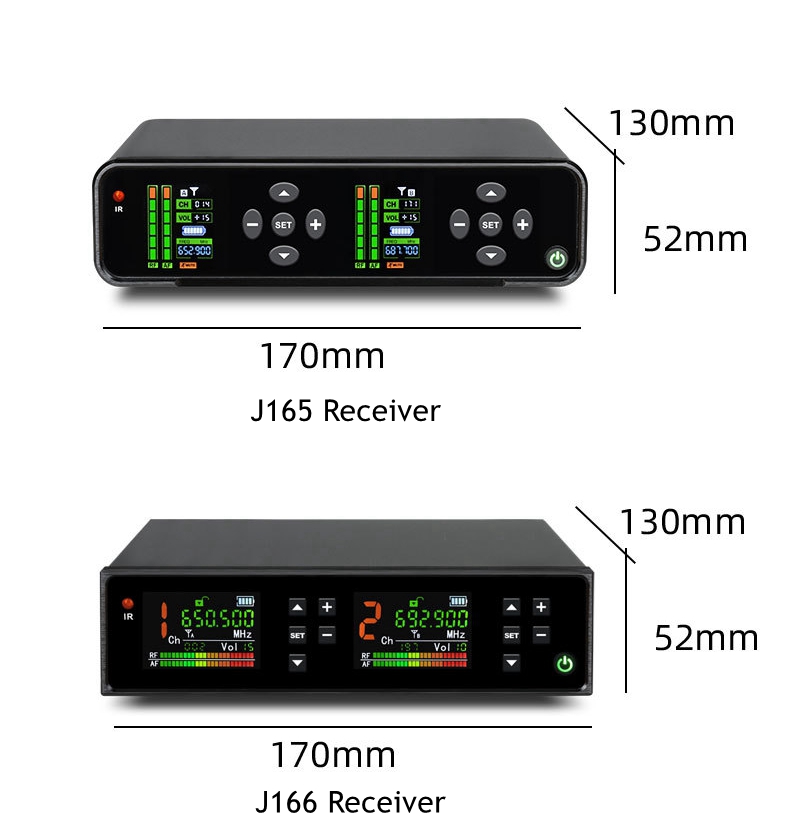

Receiver Parameters:
- Net weight: 812g
- Shell: aluminum alloy, iron alloy
- Power requirement: DC 5V/1A
- Spurious suppression: >80dB (typ.)
- Connector type: BNC
- Antenna impedance: 50ohms
- Gain adjustment range: -18 ~ +20dB
- Antenna impedance:
  6.35mm: 100ohms (50ohms non-balanced)
  XLR: 100ohms
- Output:
  6.35mm: +10dB
  VLR: +12dBV for circuit level; -12dBV for microphone level

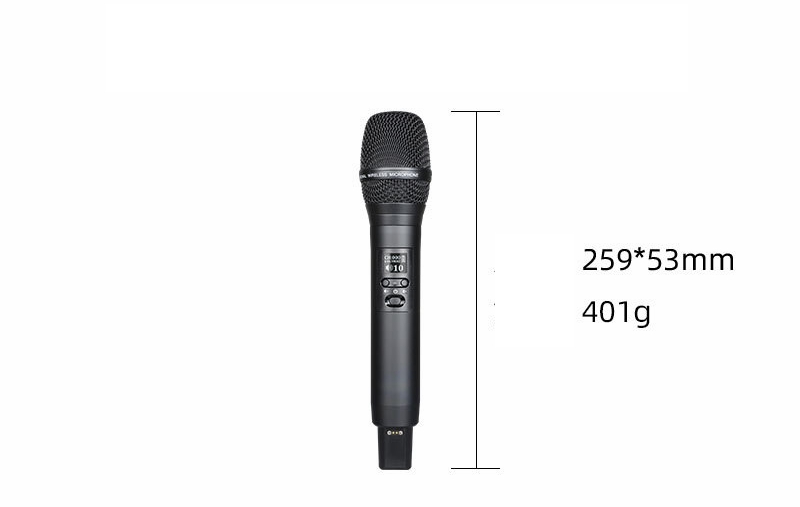

Microphone Parameters:
- Net weight: 401g
- Shell: aluminum alloy
- Battery type: 18650 rechargeable lithium battery
- Battery running time: up to 12 hours
- Transmitting power: 1mW/10mW
- Duty bandwidth: < 200kHz
- Microphone gain offset range: 0 - 21dB (3dB step)

Package Included:
- 1 x Receiver
- 2 x Microphones
- 1 x 6.35 Audio Cable
- 1 x Power Adapter
- 1 x Type-C Charging Cable
- 1 x Magnetic Charging Adapter
- 1 x Charging Stand
- 1 x User Manual
