J1900 4-Core Fanless Embedded Micro Computer Industrial Mini PC 8G RAM + 128G SSD Support for VGA and HDMI-compatible Display

J1900 4-Core Fanless Embedded Micro Computer Industrial Mini PC 8G RAM + 128G SSD Support for VGA and HDMI-compatible Display

Features:
- Strong adaptability, high and low temperature resistance, moisture-proof and anti-interference: Specially designed for industry, industrial control equipment has strong adaptability and supports stable operation in harsh environments from -20°C to 65°C.
- The high-strength aluminum alloy body is made with an all aluminum alloy shell process, which has strong stain resistance, anti magnetic interference, better vibration and compression resistance, and improves the overall lifespan of the machine.
- Fan free shell heat dissipation: enclosed fanless metal body heat dissipation design, high-density heat dissipation fins with low noise, fast heat dissipation, and high reliability.
- Dual Gigabit Ethernet ports + dual serial ports: 2 Gigabit Ethernet ports, supporting network wake-up and power on/off; Two RS232 serial ports, compatible with various devices.

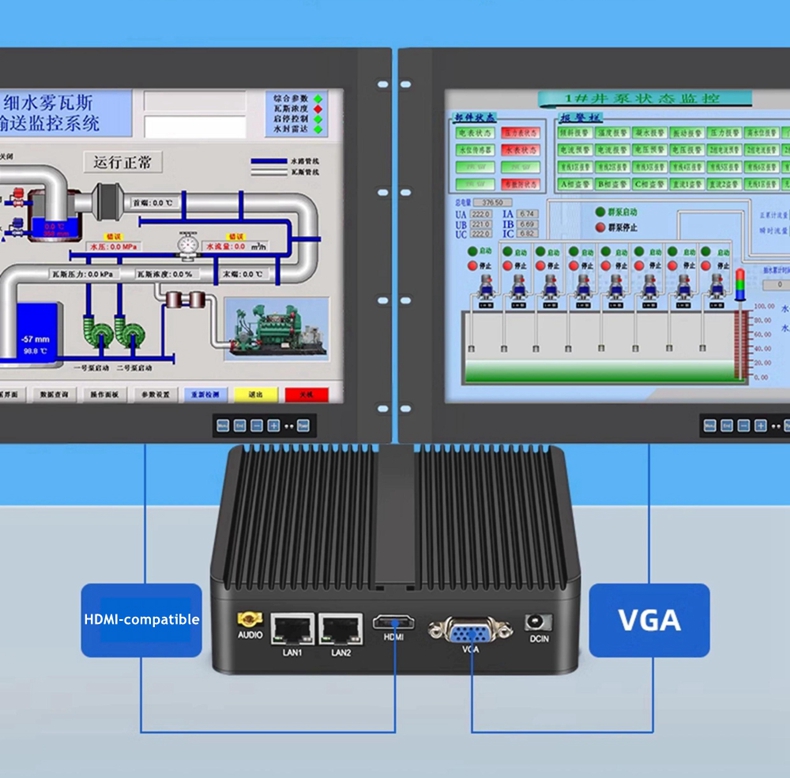

- Intelligent dual display, supporting split screen: supporting VGA, HDMI-compatible synchronous / asynchronous display, intelligent split screen realizes multi task synchronous split screen, highlighting higher efficiency.
- 7 x 24-hour low-power stable operation: Integrated with low-power structure design, the overall power consumption is about 15W, which is more than enough to cope with various industries and applications in public spaces. It can be set with power on function, suitable for long-term startup working environment.
- Original memory, eliminating malfunctions: This machine uses high cost original brand memory, rejecting blue screen, black screen, crashes, repeated restarts, and failure to light up, eliminating unnecessary causes of malfunctions.
- Application: Smart medical equipment, industrial production workshops, industrial automation, CNC machine tools, monitoring systems, multimedia education.

Specification:
- Processor: For Intel Celeron Processor J1900, 2M Cache, 4 cores 4 threads, 2.0GHz, up to 2.42GHz
- Memory: DDR3L SODIMM x 1
- SSD: support 1 x mSATA SSD (defaulted install this type hard drive); support 1 x 2.5-inch SATA HDD/SSD
- Network: Gigabit Ethernet port x 2, support Wake-on-LAN

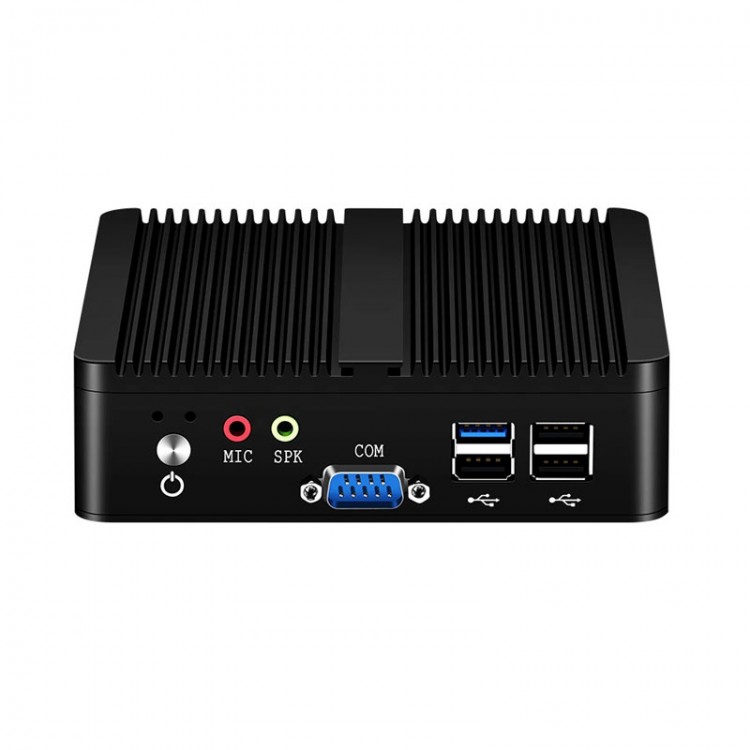

- I/O interface: USB3.0 x 2, USB2.0 x 2, RS232 x 2, AUD x 1, DC-IN x 1, VGA x 1, HDMI-compatible x 1
- Graphics: for Intel HD Graphics
- Expansion: 1 x Mini PCIE (half height size)
- Installation method: VESA/wall-mounted/desk type
- Working temperature: -20℃~65℃
- Storage temperature: -20℃~75℃
- Working humidity: 5% - 95%, non-condensing
- Input power: 12V
- Net weight: about 1kg
- Material: aluminum alloy
- Product size: L x W x H = 136 x 127 x 40mm

Package Included:
- 1 x Host
- 1 x Power Adapter
- 1 x AC Adapter
- 1 x SATA Cables
- 1 x VESA Mount
- 1 x User Manual

Note:
- The mini PC comes without WiFi module and WiFi antennas pre-installed.
