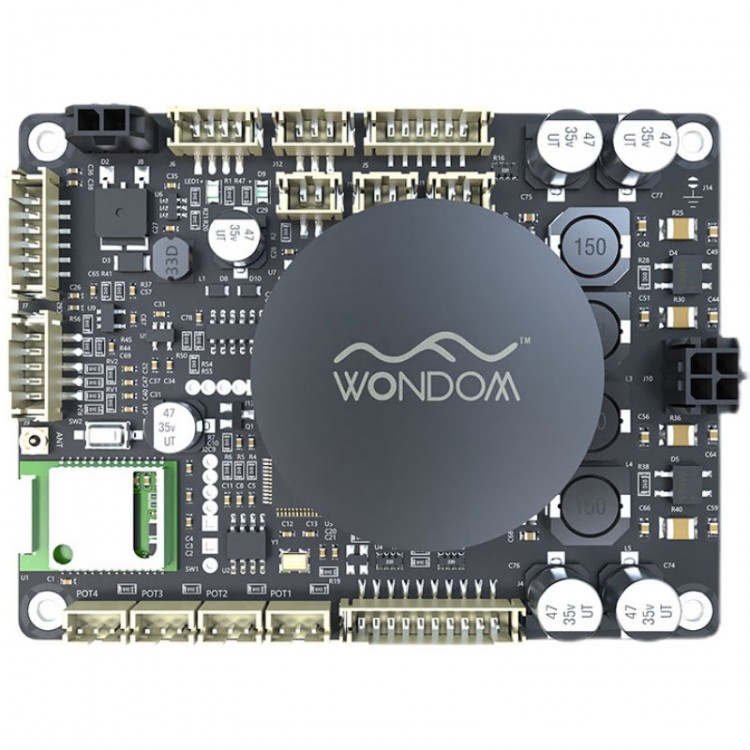

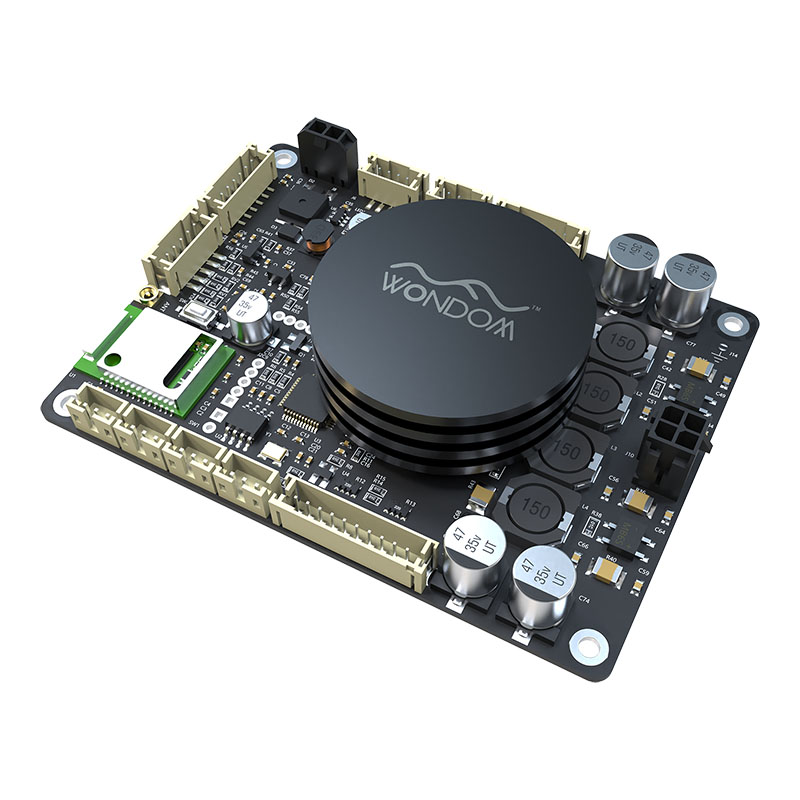

JAB3+ 2x50W Class D Power Amplifier Board Bluetooth 5.0 & High-Performance DSP ADAU1701

JAB3+ 2x50W Class D Power Amplifier Board Bluetooth 5.0 & High-Performance DSP ADAU1701

Description:
- JAB3+ is audio amplifier board integrated with Bluetooth 5.0 (supporting for aptX HD) and ADAU1701 DSP, offering a real all-in-one audio solution for customers. JAB3+ covers 2 x 50W, 2 x 30W, 1 x 60W and 1 x 100W four models. Thanks to the equipped ADAU1701 DSP, JAB2 supports programming with Sigma Studio, APP control and PC UI control after connection with WONDOM ICP3 or higher version(s), through which, you can adjust volume, gain, frequency and EQ setting to customize your own audio. In addition to speaker output, JAB3+ offers an extra mixed signal output, which can be input to other audio amplifier board to build audio 2.1 / 4.0 system. You can set it as stereo or mono with PC UI according to the connected amplifier board. Besides power supply, JAB3+ supports battery power, which greatly improves the portability. Wireless audio input, integrated ADAU1701 DSP, battery power, light weight and high-quality audio performance make JAB3+ perfectly suitable for portable Bluetooth speakers, home audio, garden audio and DIY applications. A DC12V-26V power supply is required.
- Integrated with Bluetooth 5.0 module
- JAB3+ employs Bluetooth 5.0 module for audio input, which supports various audio formats as for aptX, aptX HD, aptX LL, SBC & AAC and high receive sensitivity with RF power up to 9dBm and -90dBm. There is a built-in antenna equipped on this board. So, you can directly pair JAB3+ with the device to play music. An external antenna port is also provided on the board to ensure the stable connection and high audio performance in such applications that JAB3+ is installed into a speaker or a cabinet.
- JAB3+ is also integrated with high performance ADAU1701 DSP chip for audio signal processing. Four ports for external potentiometers are mounted on JAB3+. You can use the external potentiometers to control the volume, gain and frequency even if JAB3+ is installed in a speaker. After connection with WONDOM ICP3 or higher versions, you can write a program with Sigma Studio, or get real-time remote control of your audio systems via APP or PC UI, through which, you can adjust gain, volume, high/low-pass filter, EQ and other parameters.
- In addition to Bluetooth input, JAB3+ supports 3.5mm line input. Signals from the two input methods will be mixed before being transmitted to the amplification circuit. You can get the 3.5mm AUX-IN cable in the Functional cables kit for JAB3+ (AA-JA11117).
- Beside power supply, JAB3+ supports battery power, which greatly improve the portability of the systems. Please note, since JAB3+ is not equipped with charging circuit, it is recommended to use WONDOM BCPB series battery boards, which are equipped with charging circuit, to power JAB3+.
- JAB3+ provides a line output signal. An extra audio amplifier is required to connect with speakers for playback as it is an audio signal output. The output mode of this line output signal (stereo or mono) can be configured by customers according to the connected board through Sigma Studio or APP. Therefore, you can build an audio 2.1 system to your requirements. Fully considering the easy control and audio performance of the built audio system, Sure Electronics prepares a synchronization port on JAB3+ to ensure the control logic of the two boards are consistent. It is suggested to cascade standard audio amplifier boards whose AMP chip is TPA311x with JAB3+ for better connection and sound quality.

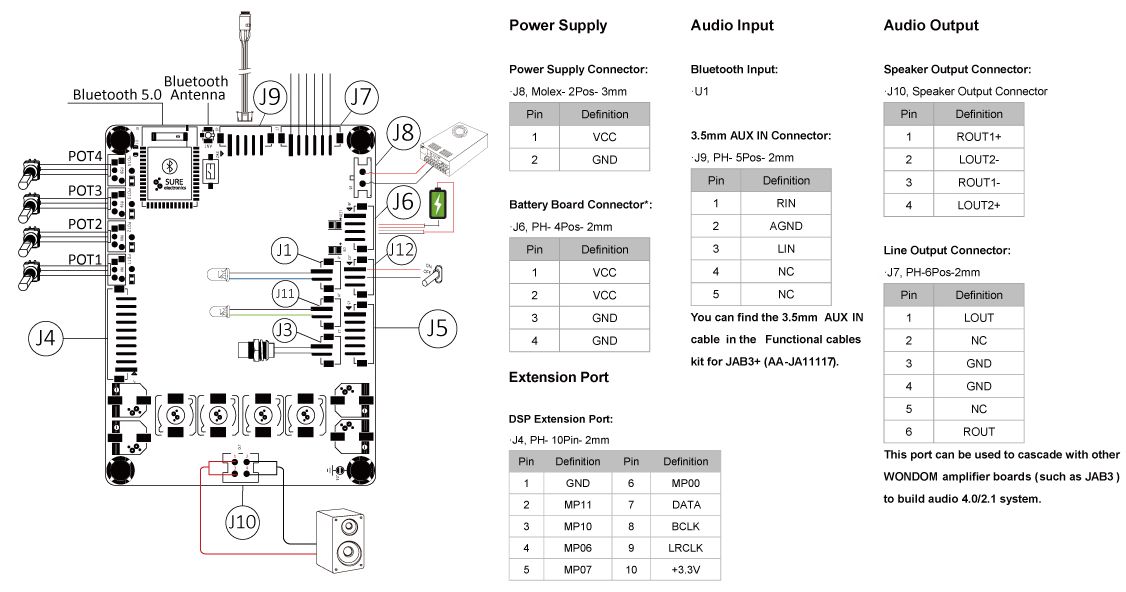

- After providing the analog and digital I/Os of JAB3+, there are still pins available on ADAU1701. We have extended 10pins as extension port. You can develop JAB3+ to build your unique applications with this port. As for the mapping of ADAU1701, please refer to the datasheet. Many customers are interested in I2S input and output; therefore, we configure this port to be applicable to I2S input and output.
- JAB3+ employs signal level sensor system for lower power consumption and longer playback time. It will continuously monitor the input signal and there is a preset signal voltage threshold. When there is no signal (voltage is lower than the threshold) detected for 5min, the amplifier module will enter into standby mode automatically, in which condition, it will consume lower power. When there is signal detected, it will run immediately without any miss of the audio.

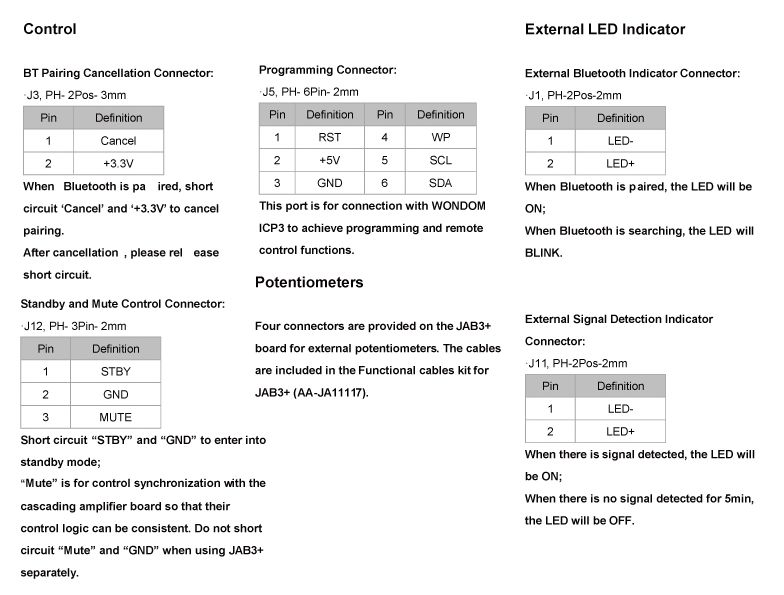

- Bluetooth pairing cancellation function is integrated on JAB3+. You can disconnect with Bluetooth by one simple press, without worry about which Bluetooth is paired. Standby function is also available on JAB3+. Ports for External LED indicators are offered to show the status of Bluetooth and signal, so you can have an overview of the running condition of JAB3+.

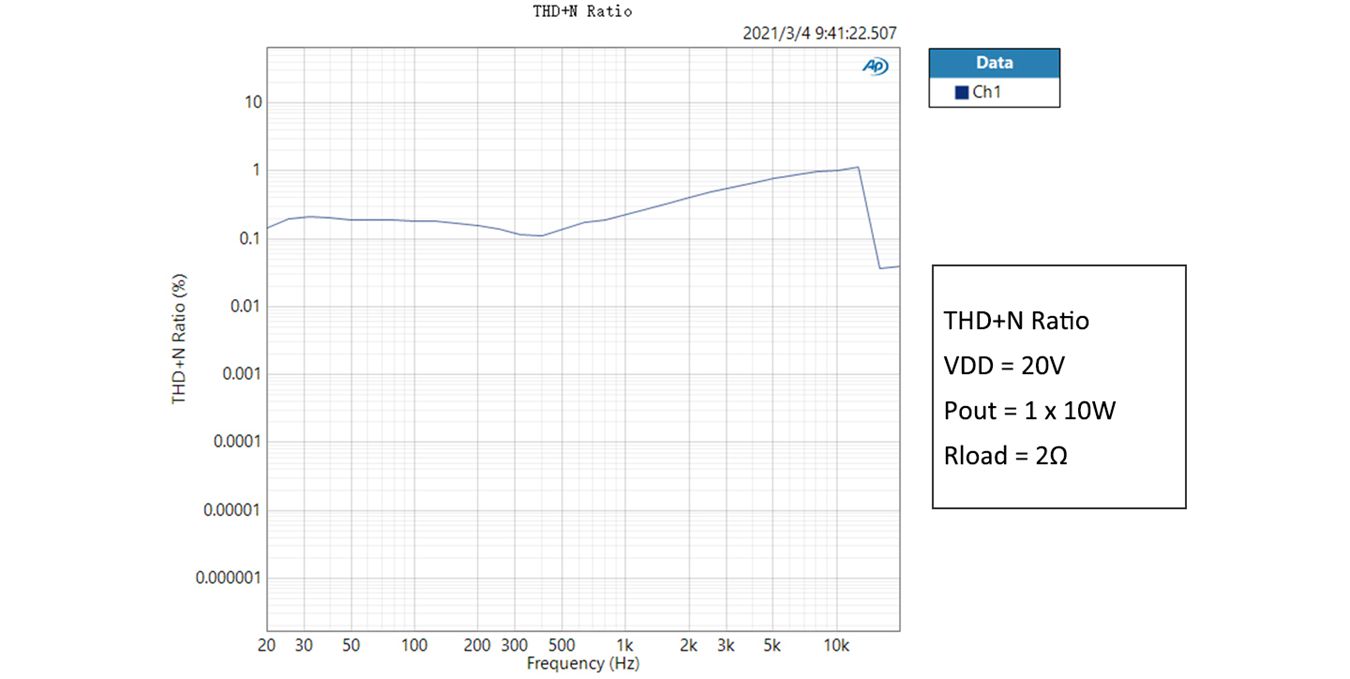

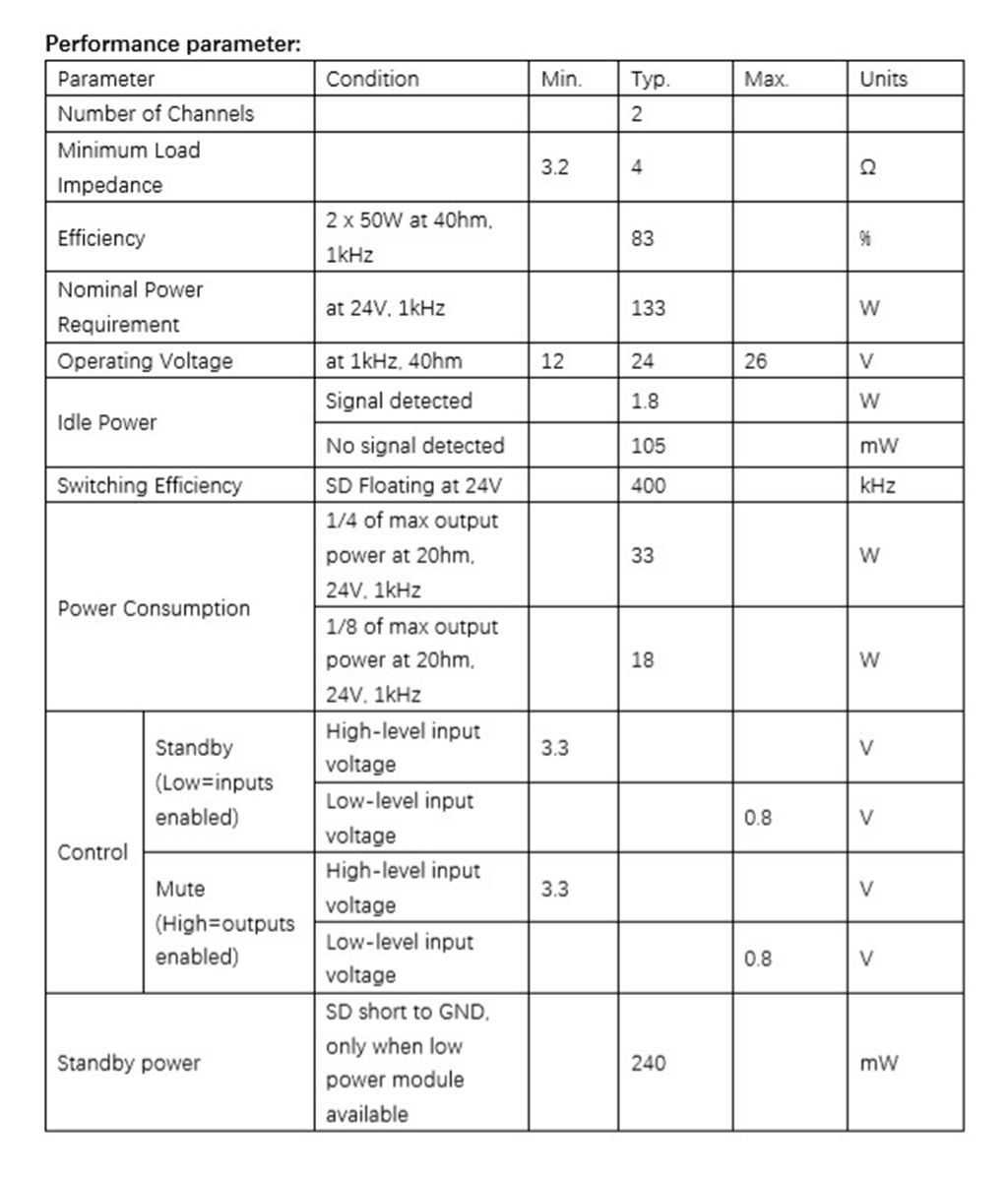

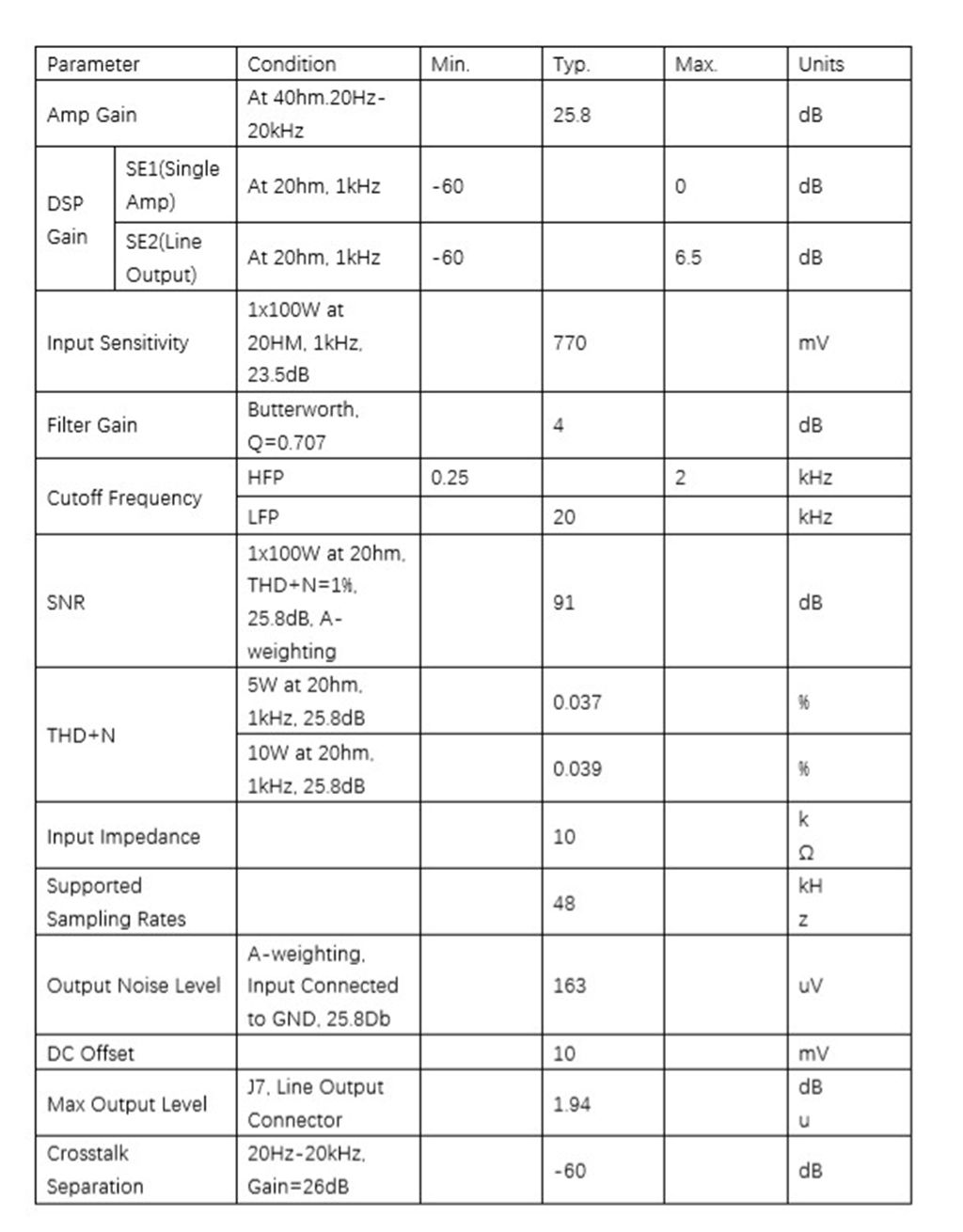

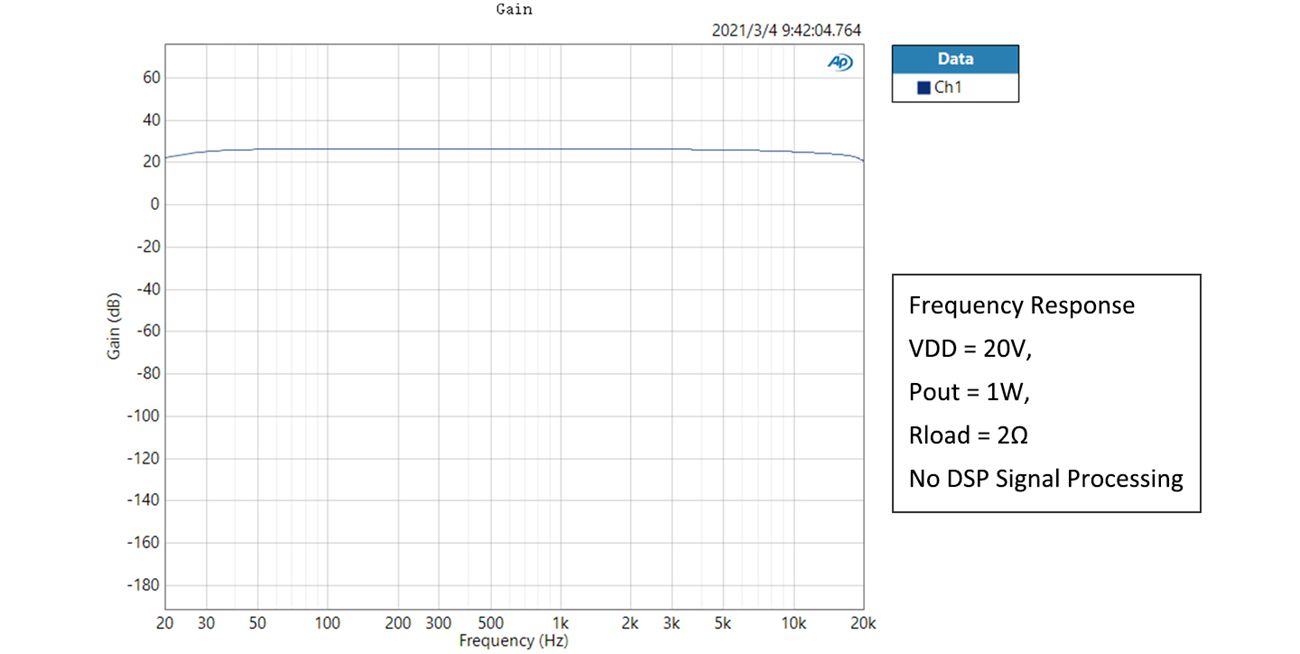

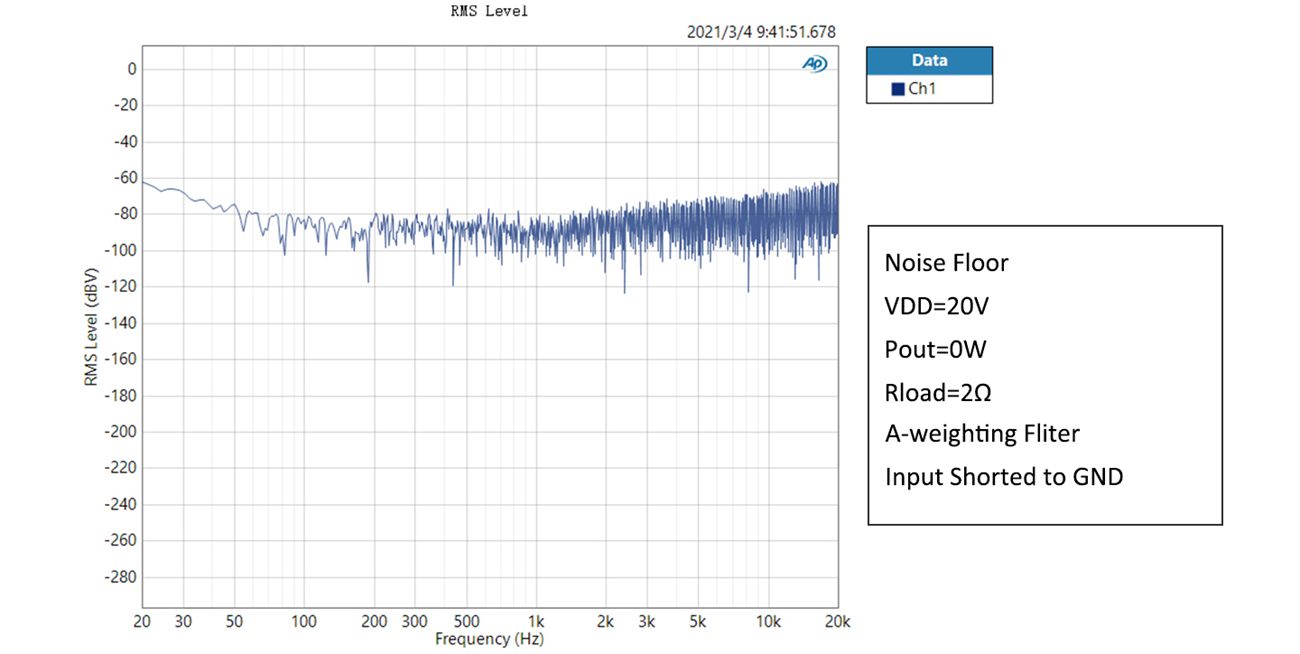

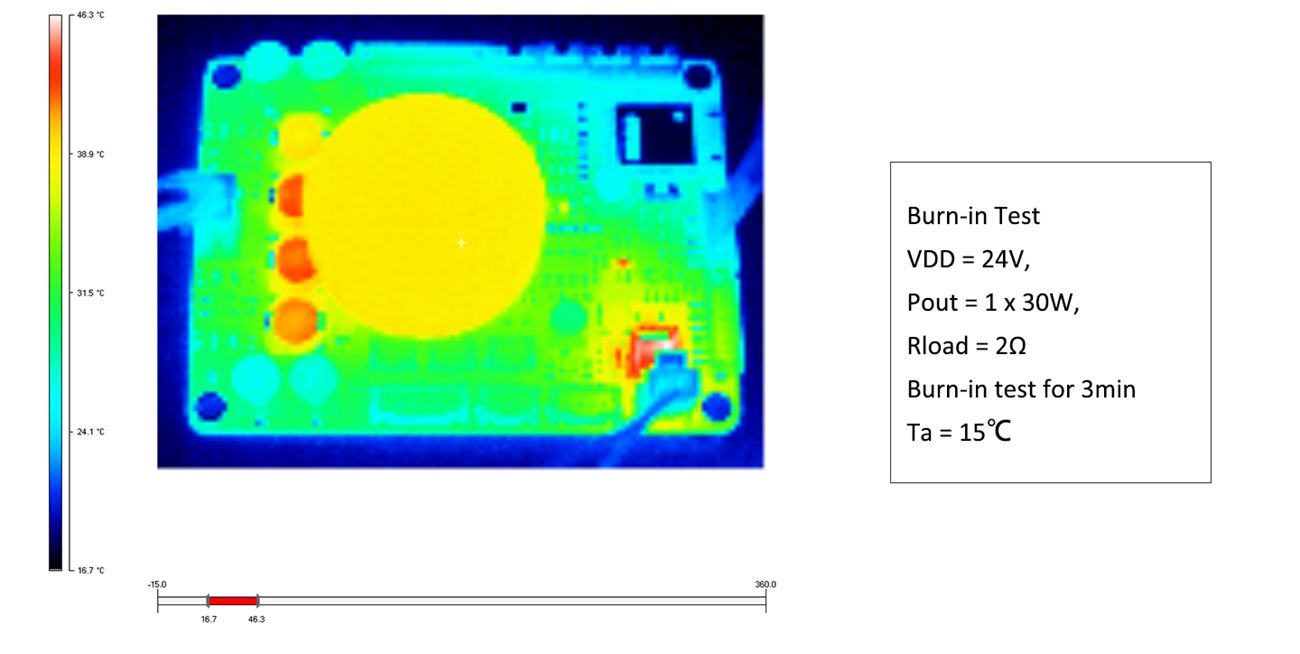

Features:
- 3.60 x 2.70 Inches PCB Size
- Battery Board Supported
- Power Management Circuit
- DSP & Bluetooth 5.0 Integrated
- High Receive Sensitivity with RF power up to 9dBm and -90dBm
- Supporting Various Audio Decode Formats as for APTX, APTX HD, APTX-LL, SBC & AAC
- Cascadable with Standard Amplifier Boards for Audio 2.1 System
- Bluetooth Pairing Cancellation
- External Control Potentiometers
- Supporting ICP5 for PC UI control

Attention:
- JAB3+ can be powered by three 18650 lithium battery balance and protection boards BCPB1 (PS-BC12111). Please note that JAB3+ does not have charging function.
- To achieve low power consumption, JAB3+ integrates a small signal detection system. When the system does not detect the audio signal for a long time, JAB3+ will enter the standby mode; In this case, once the audio signal is detected, the JAB3+ will immediately resume operation.
- JAB3+ can be connected with other power amplifiers of WONDOM. Please refer to the < JAB3+ Manual PDF > for the specific connection method. The connection harness is in the multi-function cable package specially equipped for JAB3+ connection.
- The basic cable package of JAB3+ includes one power cable and one speaker cable.

Package Includes:
- 1 x Amplifier Board
- 1 x Power supply cable
- 1 x Speaker cable

Note:
- Battery is not included.
