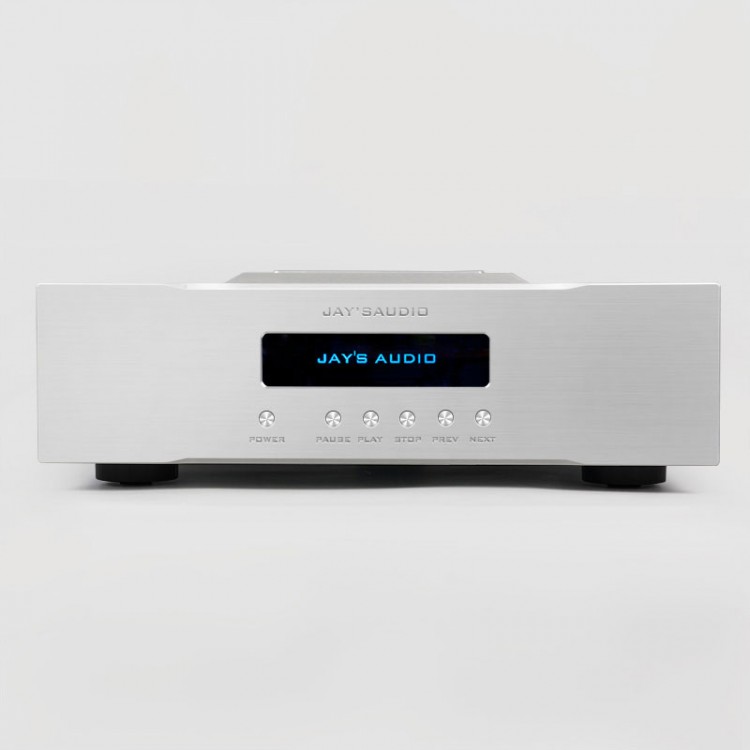

JAY'S AUDIO CDP3 Special Edition CD Player CD Turntable R2R DAC CDPRO2 LF Movement Femtosecond Clock

JAY'S AUDIO CDP3 Special Edition CD Player CD Turntable R2R DAC CDPRO2 LF Movement Femtosecond Clock

Technical Points:
Play all CD and CAS

The latest version of the reference R2R DAC Module made in Denmark is different from the common integrated IC, and the precise thin-film resistor high-speed switch combination reproduces extremely real sound, nuanced, excellent transient response, and clear positioning. At the same time, it has a lively, dense and charming musicality that is naturally balanced and enduring. This type of decoding is currently only used by a few high-end manufacturers such as: for MSB in the United States, DCS in the United Kingdom, Totaldac in France, Rockna in Romania, etc.

This machine also has a HI-END USB IIS digital interface for Amanero that perfectly supports 44.1khz, 48khz, 88.2khz, 96khz, 176.4khz, 192Khz and other formats, and also perfectly supports for Apple devices (including computers, tablets, and mobile phones).

Features:
- For PHILIPS CDPRO2-LF movement
- Top push type CD cover
- Brand new circuit design, using British WM8805 for signal reception, with industry's ultra-low jitter, adding HDMI-I2S differential signal output, all interfaces provide 24BIT/192KHZ up-conversion signal output
- Mainboard I2S differential signal direct chain built-in Danish R2R DAC Module
- Built-in American high-precision audio dedicated femtosecond clock, sterling silver clock signal cable
- Support external clock clock 10M input
- Provide RCA coaxial and USB input, can be used as a separate decoding, perfect support for DSD (USB only)
- Two high-power transformers made in Germany are used to supply power to the movement and digital signals
- Multiple sets of ultra-low noise high-precision linear power supplies provide independent power supply for the movement, rubidium clock, etc.
- For American CIENTIFIC CONVERSION-HIEND level shielded audio digital transformer SC947-02LF output
- Main filter and decoupling capacitor for AUDIONOTE audio dedicated power supply in the UK
- For Cardas, audio note, wbt and other special silver-containing audio soldering tin, German thermostat soldering station, pure manual delicate soldering
- High-end eye-catching OLED display
- High-precision CMC processing fully shielded bald board
- For Switzerland SCHURTER power filter socket
- Original Norwegian shock absorber feet
- High-precision carbon fiber all-metal high-precision tray axis, providing better stability and overall sound enhancement
- Movement control, digital signal processing, display control and display heating circuit are combined with power supply circuit
- The installation location has also been carefully arranged
- The power-on delay circuit of the voltage detection method properly protects the expensive movement

Specifications:
- Analog output level: RCA 1.6VRMS; XLR: 4VRMS
- Digital output level: COAX 2V at 75OHM; XLR 5V at 110OHM at I2S RJ45
- Signal input: USB x 1, COX (Coaxial) x 1, BNC clock input (10MHZ)
- Total harmonic distortion: THD 0.00036% at 1KHZ 600OHM LOAD
- SNR measured: SNR-127
- AC voltage: 115VAC or 230VAC (INTERNAL JUMMPER SETTING)
- Power supply: 25W
- Dimensions: 450MMx380MMx150MM
- Weight: 17KG

Package Included:
- 1 x Set of CD Player DAC
