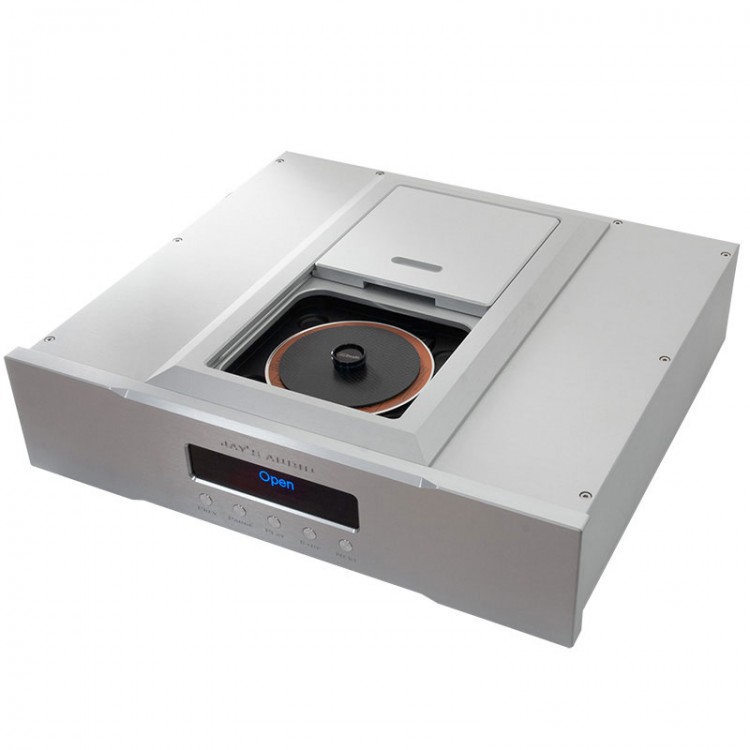

Jay's Audio CDT2-Pro Audiophile CD Turntable Player Thermostat Clock Pro2 Movement I2S HDMI Output

Jay's Audio CDT2-Pro Audiophile CD Turntable Player Thermostat Clock Pro2 Movement I2S HDMI Output

Description:
Focusing on high-end market's needs, CDT2-PRO is highly cost-effective. It adopts the latest circuit design. HI-END-level components take every detail to a higher level at all costs to let the CDPRO2 movement play a higher level.

Design Features:
1. The new circuit design uses better chips, featuring the industry's ultra-low Jitter, and adds I2S-HDMI differential signal output
2. Upgraded servo module
3. Imported customized high-precision constant temperature clock is provided with movement servo system and digital signal respectively. It can effectively improve sound details and sound quality.
4. U.S. audio dedicated output digital transformer
5. Audio special power supply main filter capacitor for German MUNDORF
6. Two transformers, adopted by Swiss brand for FM, are used to power the movement and digital signals
7. Swiss power filter socket for SCHURTER
8. Carbon fiber high-precision disc pressure enables your CD to stay close to the CD disc, to minimize shaking during operation
9. Provide original recording frequency output. HDMI output can provide 24BIT/192K
10. A variety of silver-containing audio special soldering tin, German constant temperature soldering station, and manual soldering

More Details:
- The sound quality of CDT2-PRO has been upgraded in an all-round way, continuously discovering the potential of CD, and improving sound quality experience
- It is made by manual welding, and the welding is round, beautiful and durable. Imported HIFI components are used to make and debug to ensure high-quality performance of the turntable. It has passed aging tests by imported professional instruments before shipment
- New design scheme and HI-END level components
- Reproduce original sound. Using HI-END class movement for PHILIPS-CD PRO2 LF, which is a high-quality solution for jukeboxes and high-fidelity applications
- New HDMI-IIS digital signal output. HDMI-IIS clock signal has independent transmission, and adjacent signals are isolated by ground. Compared with coaxial and AES, I2S is indeed the best sound quality, with significantly more transparent tone, richer sound field information, and more cohesive image
- HDMI-I2S interface definition. HDMI & SMA output is Jay's Audio standard format, used to connect future products
- I2S interface supports most hifi brands, including for Audiobyte BlackDragon,
Holo Audio Spring/Green/Plum, GUSTARD AK4497/ES9038 PS audio, Singxer, DENAFRIPS
- New circuit design allows CDPRO2 to play a higher level
- Two transformers (used by Swiss brand for FM) are used to independently supply power to the movement and digital signals, featuring abundant energy and no interference with each other. Thereby higher sound quality is ensured
- AC EMI filter board can suppress grid noise and high-order harmonics, as well as noise and noise generated by switching power supplies, motors, etc.
- High frequency harmonics. It improves the purity of sound quality and reduces noises caused by AC power interference
- Audiophile transformer for Sedlbauer. Boast lower stray magnetic field and no-load power loss. And its conversion efficiency can reach up to 98%. Thanks to its good performance and workmanship, it has been adopted by many famous HIFI equipment manufacturers, such as for LEHMANN AUDIO/Swiss FM
- High-precision linear power array supplies power to the digital and movement separately. Ultra-low noise, fast response, low-dropout linear voltage regulation, allowing the digital part and the movement to play its best potential, making the background darker, better details, and better dynamics
- Audio dedicated power supply main filter capacitor for MUNDORF. Precise dynamic bass and establish a vivid, clear midrange/treble range. Even in the case of extreme bass pulses, it can still play stable and clean without any compression effect
- High-precision constant temperature clock provides the movement servo system and digital signal respectively, which can effectively improve sound details and sound quality
- Adopt American professional digital audio transformer. Sampling rate 32-96KHZ, ultra-wide bandwidth, 7KHZ-100MHZ ultra-fast rise time (3NS), ultra-low capacitance (1PF), 1:1 ratio shielding, up to 192KHZ
- Professional acoustic processing mixing room for more precise tuning
- Independent research and development. Unique experience in sound calibration, using imported transformers, connecting wires, electrical resistors and connectors and other audiophile components. And use expensive silver-containing audio special solder for soldering. It has been tested by a professional audio tester (APX525) before shipment, and the quality is guaranteed
- All-aluminum CNC remote control uses buttons for Japanese ALPS and infrared emission tube for VISHAY. Size 20 x 5 x 1.7cm/7.9 x 2 x 0.7" (LxWxThickness)

Product Parameters:
- Output ports: AES/EBU, RCA, BNC and HDMI-I2S
- Sampling rate: 44.1Khz
- AES/EBU: 2V, 75 OHMS
- IIS OVER HDMI: 3.3V LVDS, 110 OHMS
- Power supply power: standby <5 WATTS, running <30 WATTS
- Dimensions: 430 x 120 x 380mm/16.9 x 4.7 x 15" (WxHxDepth)
- N.W.: 14KG/30.9LB

Package Included:
- 1 x Set of CD Turntable
