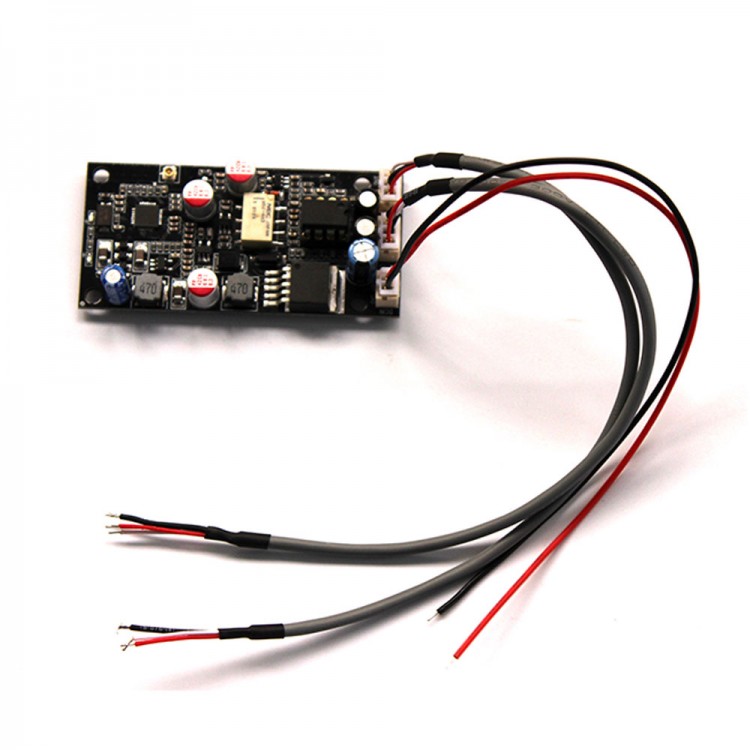

JC-Q331 Audiophile Bluetooth 5.0 DAC Board Bluetooth Decoder Board Without Antenna For APTX HD/AAC
Advantages:
- Bluetooth 5.0
- Supported protocols: for APTX HD/APTX-LL/APTX/SBC/AAC
- Supported sampling rate up to 24Bit/48Khz
Description:
JC-Q331 audiophile Bluetooth audio receiving board uses QCC3031 chip for Bluetooth digital audio signal receiving, and transmits I2S digital signal to the ESS9018 chip for decoding, and the output analog audio signal is filtered and amplified by dual op amps.
The JC-Q331 module supports wireless Bluetooth reception and 1ch AUX analog audio input for switching output. The relay is used for lossless switching, which will not affect the sound quality in any way. The module defaults to AUX line mode, and the switching mode is automatic switching, with Bluetooth priority.
JC-Q331 Bluetooth 5.0 module supports for APTX-HD/APTX LL/APTX/AAC/SBC protocols, and the highest sampling rate is 24bit/48khz.
JC-Q331 is powered by DC single power supply, wide voltage range DC 5V-32V can be used. The product is designed with multi-level voltage stabilization. The Bluetooth module, DAC chip, and operational amplifier chip are all powered by independent power management chips. The operational amplifier adopts ±13V power supply.
Package Included:
- 1 x Set of DAC Module
Note:
- The length of audio cable and power cable are 200mm/7.9" long. Due to manual measurement, please allow slight error. Thank you for your understanding!
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
