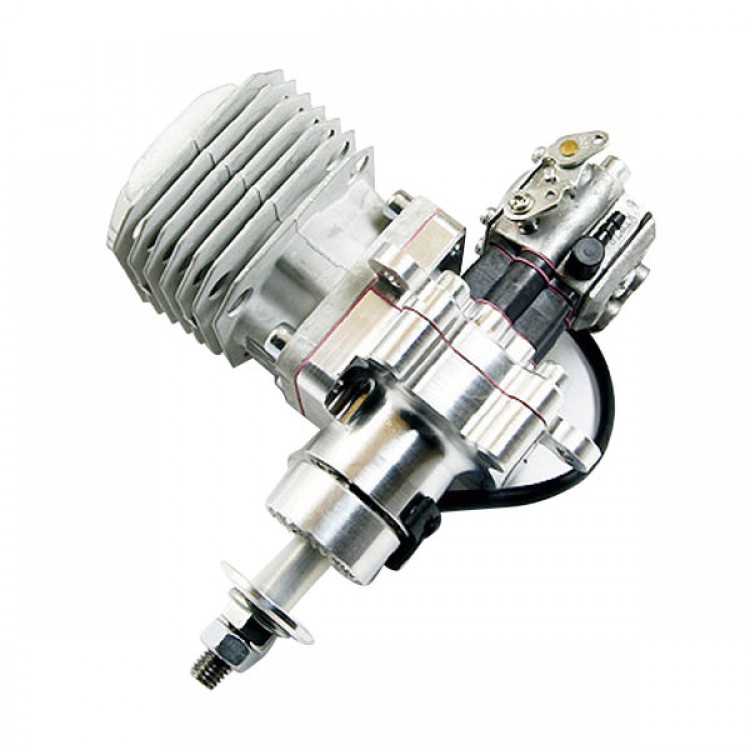

JC23 EVO 23CC 2-Stroke Gas Engine Petrol Engine for Radio Controlled Airplane

JC23 EVO 23CC 2-Stroke Gas Engine Petrol Engine for Radio Controlled Airplane
Features:
- 2 Stroke air cooled single cylinder
- Walbro membrane pump carburetor with dual needles and manual choke
- Automatic advancing electronic ignition
Engine Parameter:
- Engine type:2—Stroke gasoline engine
- Displacement:23cc
- Bore × Stoke: 33.3mm × 27mm
- park plug: NGK CM6 or JC CM6
- Carburetor: Walbro special-designing vacuum pump diaphragm type duplex needle carburetor
- Max power:3.5hp/9500rpm
- Practical running speed :1100 － 9500rpm
- Net Weight: 980g (incoulding CDI and muffler)
- Ignition system: CDI battery ignition (battery voltage: 4.8v—6v)
- Grease oil ratio :25-30:1 used during the break-in (the initial 2 working hours); 35-40:1 used after the break-in.
- Screw propeller dimension :16x8, 16x10, 17x8, 17x10, 18x8
Package included:
- 1 x JC23 EVO 23CC 2 stroke Engine
- 1 x ignitor
- 1 x vent pipe
