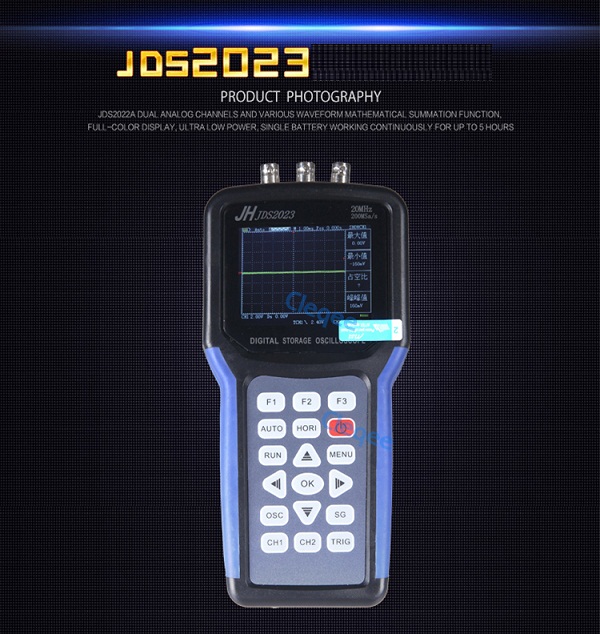

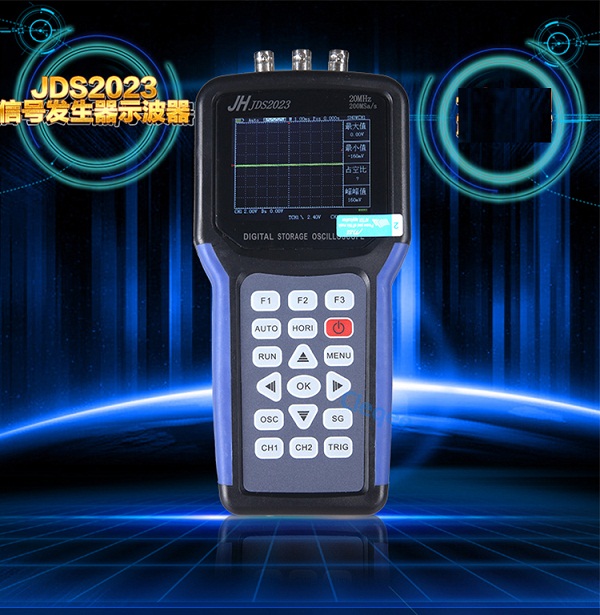

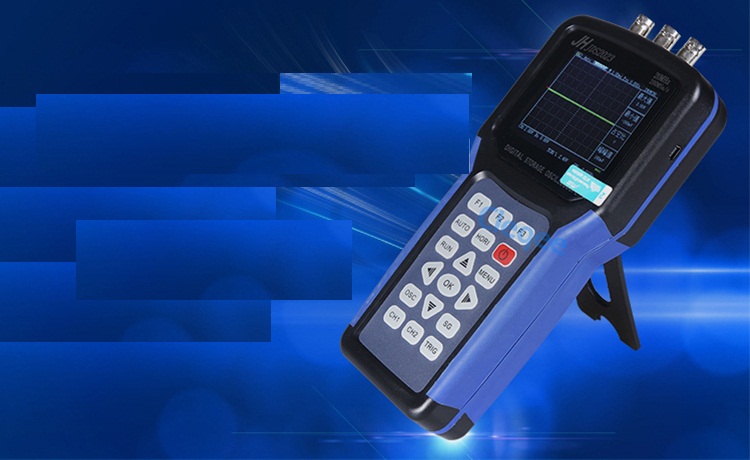

JDS2023 Handheld Digital Oscilloscope Scope Meter Multimeter C6Z4 20MHz

JDS2023 Handheld Digital Oscilloscope Scope Meter Multimeter C6Z4 20MHz

Features:
- Professional digital oscilloscope with 1CH, 200MSa/s Max. sampling rate and 20MHz bandwidth.
- Colorful TFT LCD display with 320*240 pixels resolution, easy and clear for reading.
- Backlight brightness can be adjusted; color display/black and white display for selection.
- Supports Chinese and English menu display.
- Combined with signal generator function, can measure frequency, duty cycle, amplitude and offset.
- Data storage with USB interface, 2K storage depth.
- Triggering modes: Automatic, Normal, Single.
- Rising/falling edge trigger available, which can measure 50Hz to 40MHz.

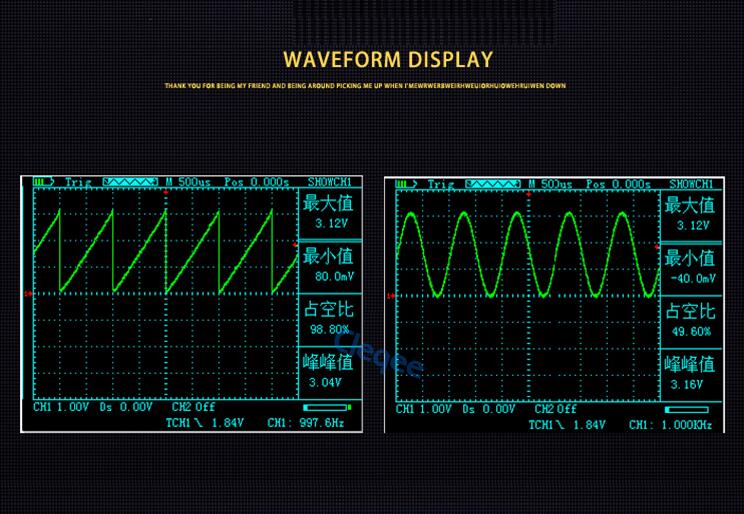

- Time and voltage cursor, peak to peak/duty cycle/frequency measurement.

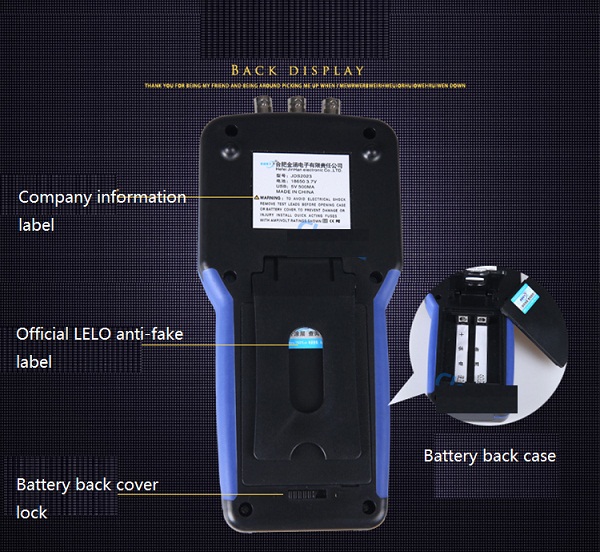

- Powered by 1x18650 3.7V lithium battery(not included), with battery charger for convenient charging.

 Specifications:
- Display: Full Color TFT LCD Display(320*240 pixels)
- Sampling Rate:200MSa/s
- Channel: 1
- Bandwidth: 20MHz
- Input Range: 10mV-5V x1; 100mV-50V x10; 1V-500V x100(1-2-5 Step)
- Vertical Resolution: 8bit
- Vertical Accuracy: +/-3%
- Impedance: 1MΩ 25pF
- Coupling: AC/DC
- Display Mode: YT
- Input Voltage: 40V(x1); 400V(x10); 4000V(x100)
- Time Range: 10ns-50ms(1,2.5,5 step) 100ms-5s(scan scan)
- Storage Depth: 2K
- Trigger Mode: Automatic, Normal, Single
- Trigger Type: Rising/Falling Edge Trigger
- Automatic Measurement: 50Hz-40MHz
- Measurement: Peak to Peak/Duty Cycle/Frequency
- Cursor:Time,Voltage
- Frequency: Sine Wave 1Hz-5MHz; Others 1Hz-1MHz
- Duty Cycle: 0%-100%
- Amplitude: 100mV-4V
- Offset: (+/-)0V-2V
- Power Supply: 1x18650 3.7V Battery(NOT Included)
- Product Size: 217x100x35mm/8.54x 3.94x1.4in
- Product Weight: 340g/12oz
- Package Size: 25x20.5x6.6cm/9.84x8.07x2.6in
- Package Weight: Approx. 872g / 30.76oz

Notice:Because,the international air shipping forbid to ship liquid,powder and batteries, If you purchased goods containing such items, we will not be putting them packing.

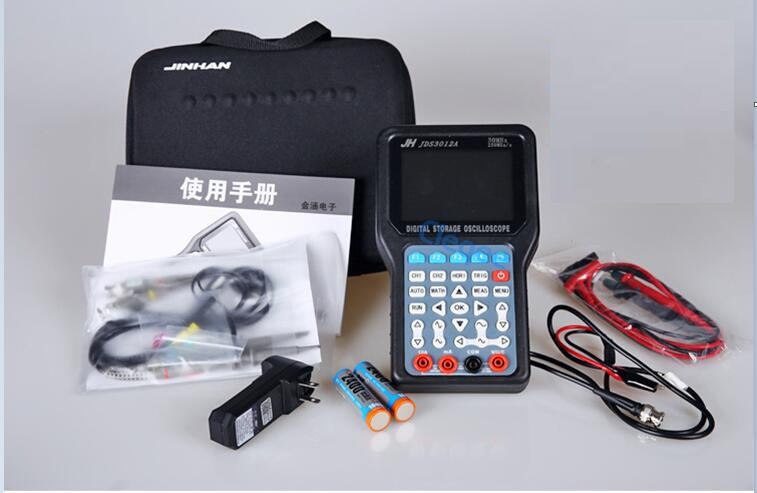

 Package List:
- 1 x Oscilloscope
- 1 x Signal Generator Probe
- 1 x Oscilloscope Probe
- 1 x Battery Charger
- 1 x USB Cable
- 1 x Screen Protector
- 1 x Storage Bag
- 1 x CD
