JDS2900-15MHz DDS Function Signal Generator Digital Control Dual Channel
Features:
- Adopt 320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2，Ability to reproduce patterns of custom waveform
- Using DDS direct digital synthesis technology to generate precise, stable and low distortion output signal
- Max. output frequency(sine wave) up to 15MHz/30MHz/40MHz/50MHz/60MHz(optional), 266MSa/s sampling rate and 14bits vertical resolution
- Completely independent dual channels output, synchronizing operation and adjustable phase difference
- Great improvement for square wave performance, square frequency range up to15MHz/30MHz/40MHz/50MHz/60MHz(optional) with no distortion
- 60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits
- High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz
- High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 2Vpp~20Vpp
- Duty-cycle of each channel can be adjusted independently 0.1%-99.9%, the adjusting resolution is 0.1%
- Pulse width and pulse cycle time is precisely adjustable, adjust the range of 25nS-4000S
- Scanning features: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions
- With pulse trains burst output function, allow the unit output 1~1048575 arbitrary pulse trains
- Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range
- Offset resolution: 0.01V, -9.99V~9.99V DC offset range
- With digital signal output function, CMOS output range 0~10V
- Storage feature: can store 100 groups of parameters set by the user and extract at any time
- Counter function: with DC and AC coupling modes
- Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument
- Communication function: the PC can be used to control the instrument
- With output short-circuit protection: all signal output can work 60s under load short-circuit condition

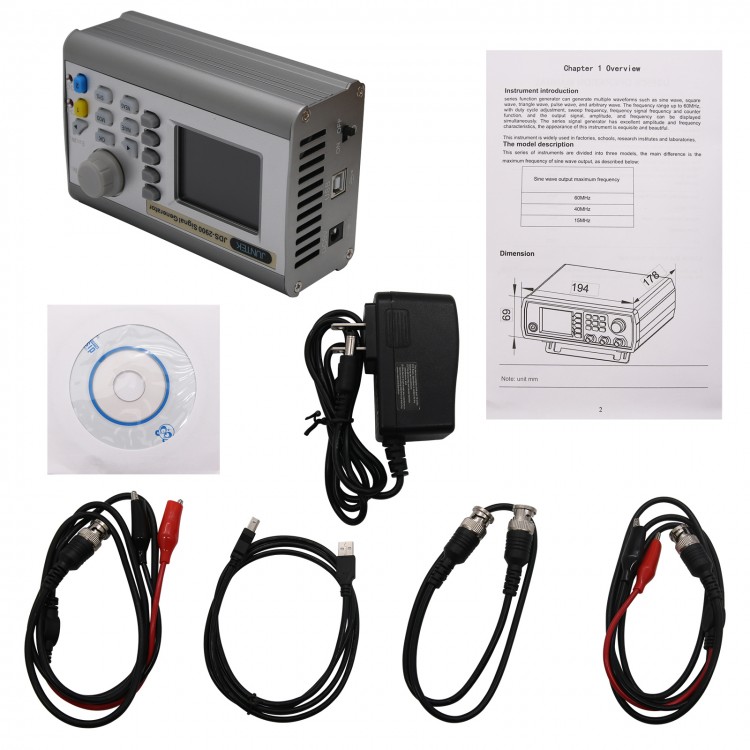

Package Included:
- 1 x JDS2900 Signal Generator
- 1 x Power Adapter
- 1 x Q9-Q9 Cable
- 1 x USB Data Cable
- 1 x Q9 Clip Cable
- 1 x CD
