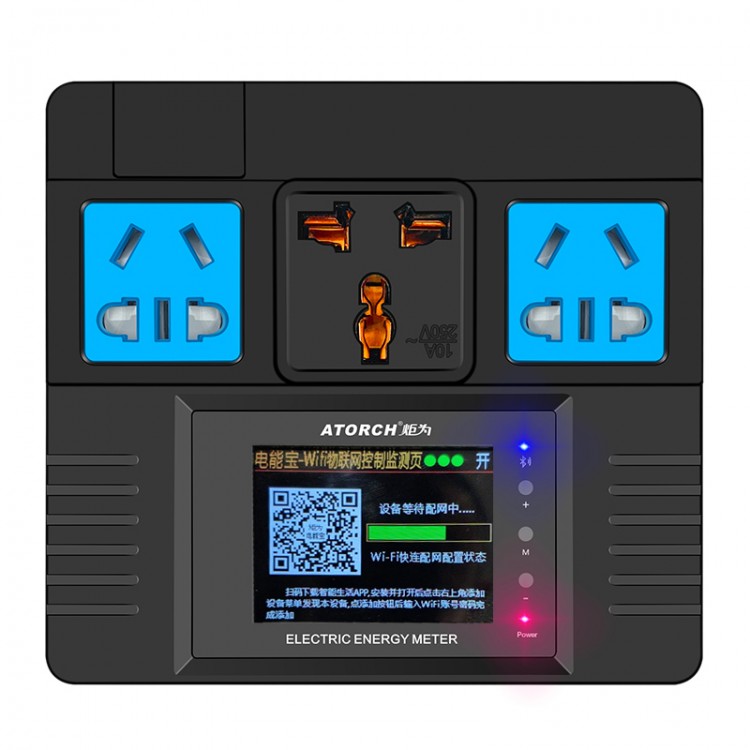

JL24 AC 85-265V 16A 3680W Electric Energy Meter Voltage Current Meter 2.4" Screen (IoT Wifi + Bluetooth)

JL24 AC 85-265V 16A 3680W Electric Energy Meter Voltage Current Meter 2.4" Screen (IoT Wifi + Bluetooth)

Download:
1. Download user manual, PC software installation instruction and PC software and APP for Android: http://www.mediafire.com/folder/0egz9vl3tejly/JL24
2. APP for IOS: search E_test on APP store for iPhone to download
3. APP for Android: search E-test at Google play to download

Description:
This equipment is used for smart on-off control, safety protection control, programmable control, Internet of Things data transmission and wireless control, accumulative power, calculation of electricity bill. It can also measure detailed parameters such as voltage, current, power and frequency.

Main Features:
1. The full digital operation and control
2. 2.4" true color TFT LCD display
3. 1.0-level measuring accuracy
4. Three operation keys
5. 7 in 1 functional test windows display
6. After power on, this device keeps the last working state and is OFF
7. You can measure the electricity (KWH) and the cumulative electricity bill (Cost), and you can set the electricity price in different countries!
8. Our products support three APP connection modes: phone (for IOS and Android) and computer
9. It has Alarm and Cut OFF working function,when the voltage, current, power exceeds setting can be set to alarm and Cut OFF working
10. Small size and beautiful appearance. Easy to install. Suitable for all kinds of electrical equipment for measurement

Electrical Parameters:
- Input voltage: AC 85~265V 50/60Hz
- Maximum current: 16A
- Maximum power: 3680W
- Working temperature: -10 to 60℃

Package Included:
- 1 x Main Unit
- 1 x Power Cable

Note:
- There is a layer of protective film on the screen, please tear off it before use.

2.4" screen and 7 kind of function display interface:
① Start screen
② Main function interface
③ Security protection interface
④ Intelligent power off protection (A)
⑤ Intelligent power off protection (B)
⑥ Timing power supply interface
⑦ Timing cycle interface
⑧ Timing countdown switch interface

1) APP for Apple:
Please search for E_test in the application store to download and install, then click the Bluetooth APP icon to open the software, and then click the Bluetooth icon above the software to enter the selection JL24-BLE to connect, you can achieve mobile phone remote wireless remote control settings and measurement function, the discharge status can be viewed at any time on the mobile phone, various data cleaning is visible, the voltage and current power curve of the discharge, etc.

2) APP for Android phone:
Scan the QR code on the back of the host to download the corresponding APP software or APP for Android: search E-test at Google play to down load . After the installation is complete, open the software and click the Bluetooth icon to enter the direct selection of JL24-BLE to successfully use it online. (No need for Bluetooth pairing, the software Bluetooth icon directly selects DL24. can)

3) Computer Bluetooth wireless online APP:
First add the Bluetooth device to the serial port device of JL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it. Open the software without installing and select the Bluetooth serial port model just added. You can successfully use online

Application Scenarios:
