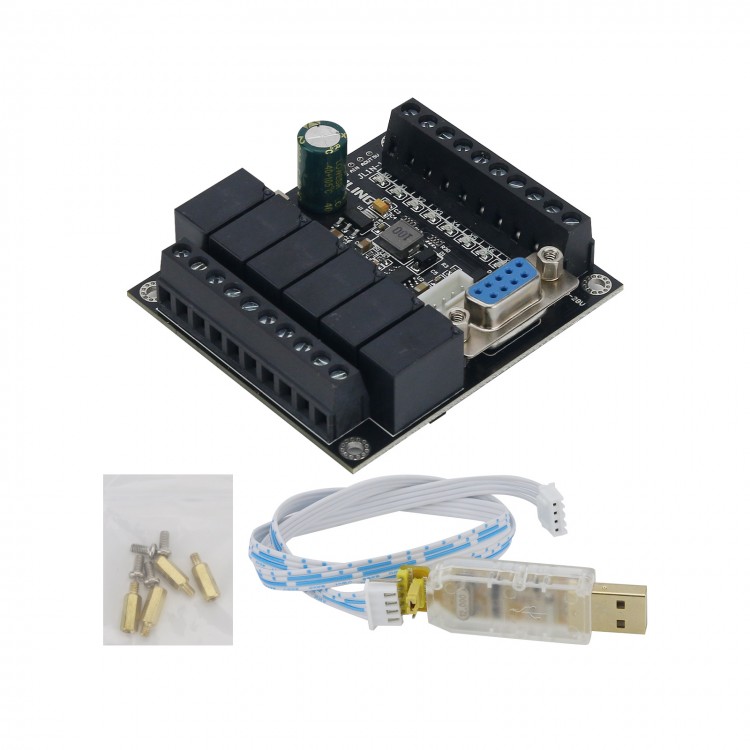

JLING FX1N-14MR PLC Board Programmable Controller Module JL1N-14MR 8 IN 6 OUT With Programming Cable

JLING FX1N-14MR PLC Board Programmable Controller Module JL1N-14MR 8 IN 6 OUT With Programming Cable

Description:
Using imported industrial grade 32-bit CPU, the PLC is compatible with FX1N series, which can download, upload, control and monitor. It can be used in various industrial automatic control occasions, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment. It can also be used in industrial control equipment for production machinery, industrial assembly lines, and various machine tools in industries such as single process control devices.

The power supply circuit of the product has been designed with multiple anti-interferences, so it is not afraid of various harsh working environments with electromagnetic interference. The PLC has been sprayed with paint, so it can better adapt to a complex application environment.

Features:
* PLC industrial control board
* Imported chip
* Stable performance
* Download online
* Encryption function
* Online monitoring

Specifications:
* Brand: JLING
* Product Name: Industrial PLC board
* Output type: relay output
* Input points: 8 points
* Output points: 6 points
* Supply voltage: 10~28V
* Output current: DC 24V; AC 220V
* Analog input: 1AD
* Analog output: 1DA
* Memory capacity: 2000 steps
* Stepper motor: support
* Connect text screen: support
* Connect to touch screen: support
* Programming software: For Gx Developer; For Gx Works2
* Installation method: Fixed by 4pcs M3 screws; Rail housing

Package Included:
* 1 x Set of PLC Board

Support Simulated Electrical Components:
Auxiliary relay:
* General use: M0-M383
* Power off hold: M384-M1535
* Special use: M8000-M8255

State:
* Hold: S0-S999

Timer:
* 100MS: T0-T199 (0.1-3276.7 seconds)
* 10MS: T200-245 (0.01-327.6 seconds)
* 1MS cumulative type: T246-T249 power-off hold
* 100MS cumulative type: T250-T255 power-off hold

Counter:
* 16-bit increment number: C0-C15 (0-32767)
* 16-bit up-count (power-off hold): C16-C199
* 32-bit increase/decrease bidirectional: C200-C234
* High-speed counter (power-off hold): C235, C238, C251 and C253

Data Register:
* 16-bit general purpose: D0-D127
* 16-bit power-off hold: D128-D5029
* 16-bit index: V0-V7 and Z0-Z7, a total of 16 points
* 16-bit special use (AD): D5030 (input voltage range 0-10V)
* 16-bit special use (DA): D5101 (output voltage range 0-3.3V)

Pointer:
* For JAMP and CALL branches: P0-P127, a total of 128 points
* Input interrupt, timing interrupt: I0~I5, a total of 6 points

Constant:
* Decimal number (K): 16-bit: -32.768 to +32.767; 32-bit: -2.147, 483, 648 to +2.147, 483, 647
* Hexadecimal number (H): 16 bits: 0~FFFF; 32 bits: 0~FFFFFFF

Support Commands:
* Basic instructions: LD, LDI, OUT, AND, ANI, OR, ORI, LDP, LDF, ANDP, ANDF, ORP, ORF, ORB, ANB, MPS, MRD, MPP, MC, MCR, INV, PLS, PLF, SET, RST, NOP, END
* Program flow: CJ, CALL, SRET, IRET, EI, DI, FEND
* Transfer and Compare: CMP, ZCP, MOV, BCD, BIN
* Four logical operations: ADD, SUB, MUL, DIV, INC, DEC, WAND, WOR, WXOR
* Cyclic shift: SFTR, SFTL
* Data processing: ZRST, DECO, ENCO
* High-speed processing: REF, HSCS, HSCR, SPD, PLSY, PWM, PLSR
* Convenient commands: ALT, RAMP
* Peripherals: FROM, TO, RS, PID
* Positioning: ZRN, PLSV, DRVI, DRVA
* Contact comparison: LD=, LD>, LD<, LD< >, LD≤, LD≥, AND=, AND>, AND<, AND< >, AND≤, AND≥, OR=, OR>, OR<, OR< >, OR≤, OR≥

Attention:
All commands support 32-bit commands and trigger commands.

Tips:
Some customers respond that it is slow to download program. We default the length of the download program to 8000 steps. In fact, most of the programs written by customers will not exceed 2000 steps. Therefore, setting it in the software in GX or WORK2 can increase the download speed by 4 times.

The setting method is as follows:
After clicking the + sign in front of the parameter in the engineering program data list, the PLC parameter will appear. Then double-click the PLC parameter and the parameter setting interface will appear. In the parameter setting interface, set the memory capacity from 8000 to 2000.

The drivers for programming cable USB to TTL and USB to 232 are the same. Driver address: http://pan.baidu.com/s/1jG5sLng. After installing the driver, a serial port will appear. Please select the baud rate as 9600 when downloading.

This PLC series has 2 independent 232 serial ports, one is RS232 9pin port (2: TXD, 3: RXD, 5: GND), the other is TTL 4pin port (1: GXD, 2: TXD, 3: RXD, 4: 5V). These two ports are programmable and connected to a touch screen. When programming, the 9pin port uses a USB-232 line; the 4pin port uses a USB-TTL line. When connecting a touch screen, the RS232 9pin port uses a 9pin male-to-female wire to connect the touch screen (actually only 3 wires are used, namely 2-2, 3-3, 5-5). The 4pin port of TTL level needs to use JLING's TTL to 232 conversion board to convert to 232 level before connecting to the touch screen.

Input high-speed pulse C235, C238, C251, C253 and the function is compatible with FX1N series.

Y0, Y1 can send 10K pulse, and the function is compatible with FX1N series.
