JLink V10 Emulator ARM STM32 Downloader EDU Programming Debugger Support JTAG SWD Interface

JLink V10 Emulator ARM STM32 Downloader EDU Programming Debugger Support JTAG SWD Interface

Description:
1. ARM V10 fully supports MDK, IAR, DS5, KEIL 5, and various mainstream development methods. The method of use is exactly the same as Jlink.
2. ARM V10 is a JTAG emulator designed to support emulation of ARM core chips. With IAR EWAR, ADS, KEIL, WINARM, RealView and other integrated development environments, supported CPU: ARM7/9/11, Cortex-A5/A7/A8/A9, Cortex-M0/M1/M3/M4/M7, Cortex- R4, Microchip PIC32 and Renesas RX100/RX200/RX610/RX621/RX62N/RX62T/RX630/RX631/RX63N.
3. Easy to operate, easy to connect and easy to learn, it is a practical development tool for learning and developing ARM and production.

Features:
1. The main control chip adopts NXP main control, without losing the firmware, and the hardware is upgraded to the latest version of V10.1.
2. It can provide 5V voltage 0.8A current for the development board (pin 19).
3. Support standard JTAG interface and 2-wire SWD debugging interface. The speed can reach 20M(JTAG)/15M(SWD) per second.
4. Support debugging of all ARM chips, support MDK or IAR, and other standard compilation environment IDE supported by JLink.
5. Original firmware, fully automatic firmware upgrade.
6. Delicate process, comparable to original.

Instructions:
1. Install the required application software, such as MDK, IAR.
2. Install the driver, double-click to run JLink-Windows-V662b.exe, the default installation is enough.
3. Double-click CrackJlinkV10.exe and follow the prompts.
(Please contact customer service for the file compressed package.)

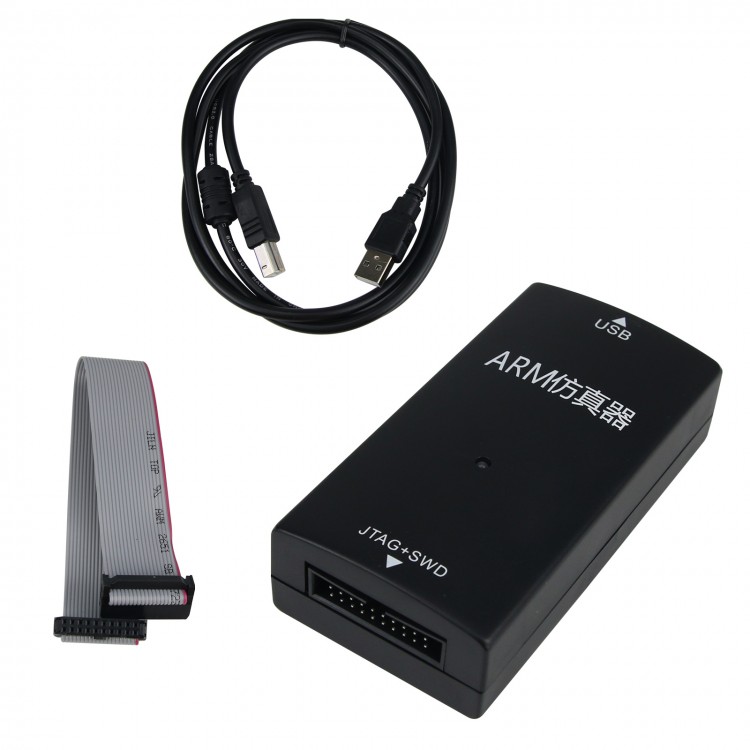

Package List:
-1 x JLink V10 Emulator
-1 x USB Cable
-1 x JTAG Cable
