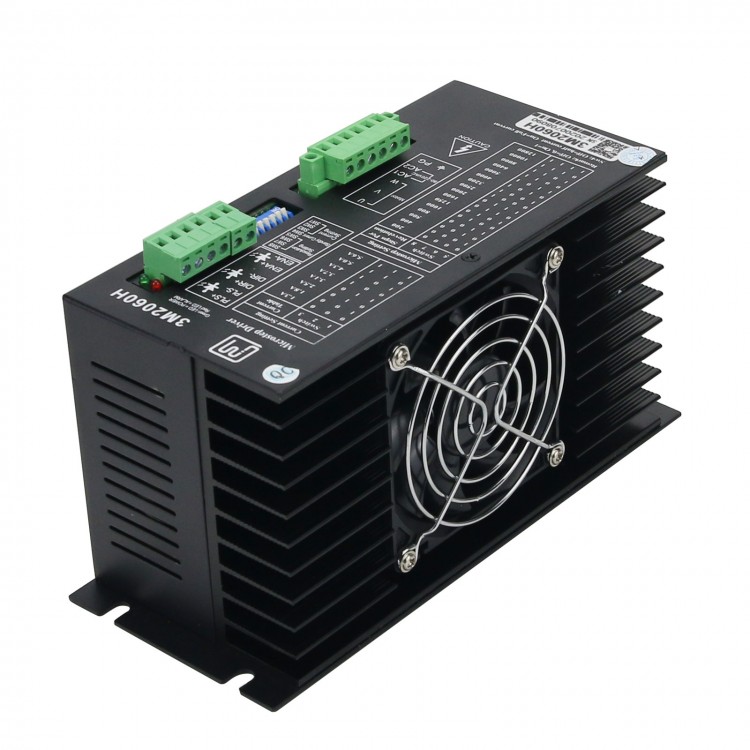

JMC AC 3M2060H Stepping Motor 220V Input 86/110/130 3-phase Stepper Motor Driver 3M2060H-L 32-bit DSP

Availability: In stock, usually dispatched in 1 business day

  • Price:$126.32
  • Price in reward points: 1263 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $123.79 $121.27 $117.48 $112.42 Contact US
Quantity:

JMC AC 3M2060H Stepping Motor 220V Input 86/110/130 3-phase Stepper Motor Driver 3M2060H-L 32-bit DSP

Description:

- The 3M2060H-L is a low noise digital stepper motor driver with a new 32-bit DSP technology.

- Can meet the needs of applications in most occasions. Thanks to built-in micro-segmentation technology,

- High subdivision can be achieved even under low subdivision conditions.

- Low, medium and high speed operation is very stable and the noise is very small. The parameter auto-tuning function is integrated inside the drive.

- It is possible to automatically generate operating parameters for different motors to maximize the performance of the click.

- Main application areas

- Suitable for all kinds of medium and large-scale automation equipment, column engraving machine, cutting machine, packaging machinery, electronic processing equipment,

- It is excellent for applications such as automatic assembly equipment and equipment where users expect low noise and high speed.

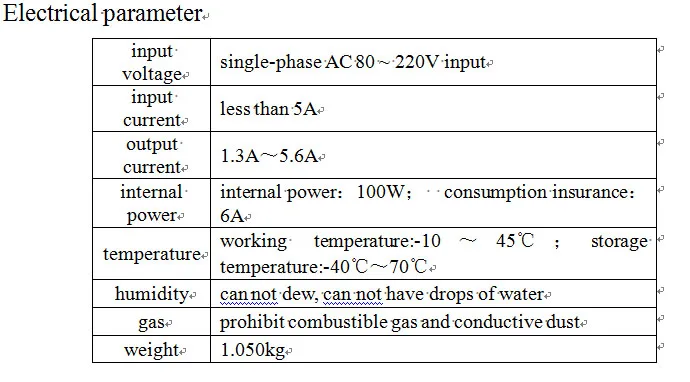

Electrical parameter

3M2060 Electrical parameter

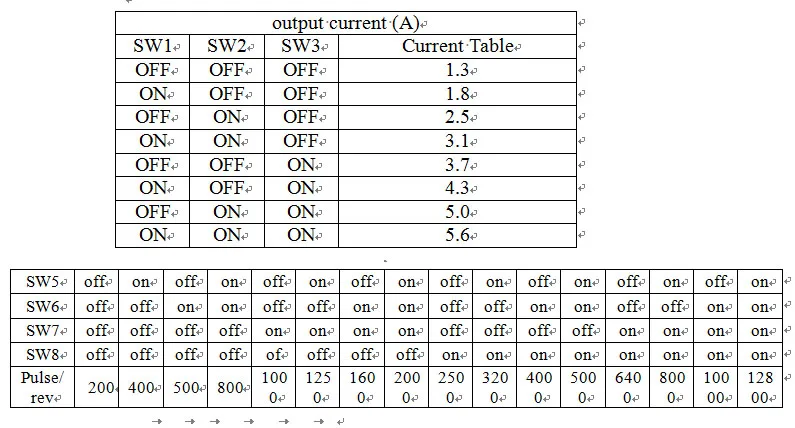

Current subdivision

3M2060 current subdivision

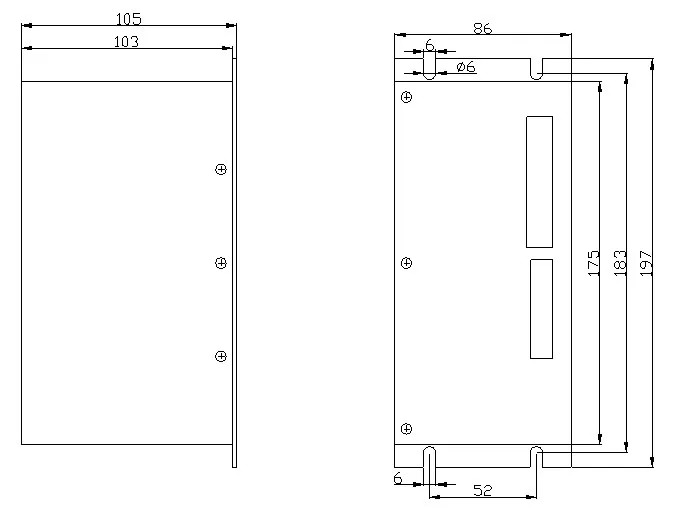

Installation

3M2060 Installation
