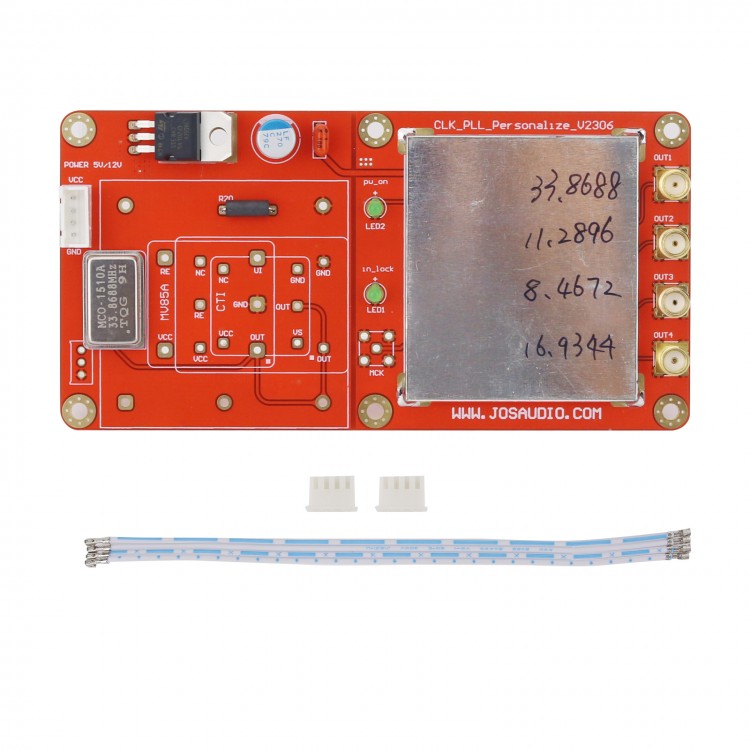

JOSAUDIO OCXO Frequency Divider Clock Diver Ultra-Low Noise to Upgrade Optical Drive CD Player DAC

JOSAUDIO OCXO Frequency Divider Clock Diver Ultra-Low Noise to Upgrade Optical Drive CD Player DAC

Features:

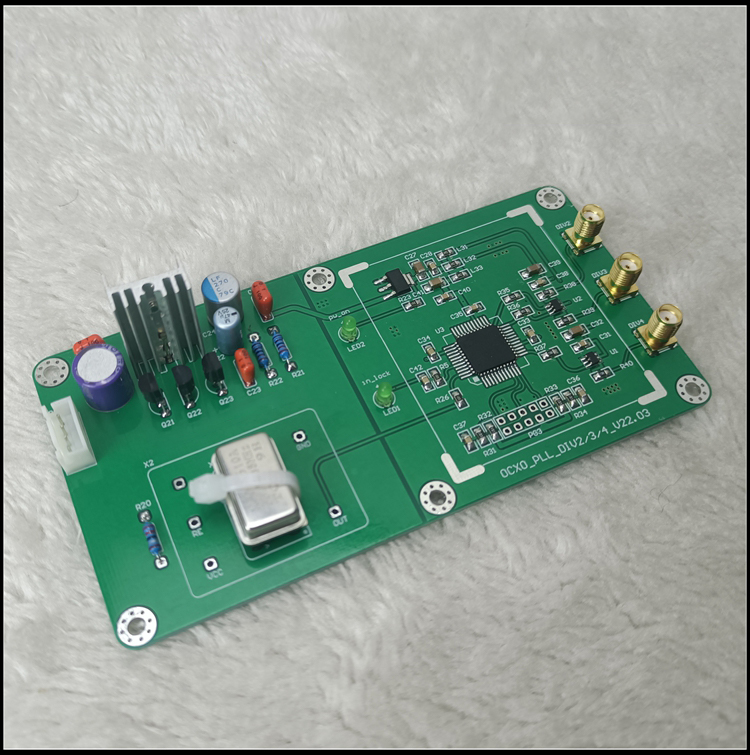

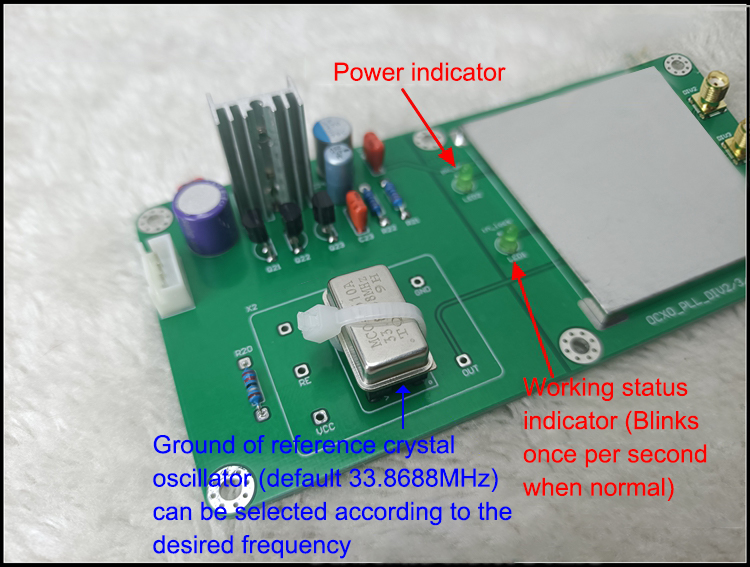

- CPLD high-performance logic ICs are used for physical frequency division. The quality of synchronization of the frequency division waveform is good, without phase difference, and phase noise is small. Users who need higher clock performance can upgrade the reference crystal oscillator to obtain, such as ordering the corresponding thermostatic crystal oscillator or femtosecond crystal oscillator, or temperature complementary crystal oscillator.

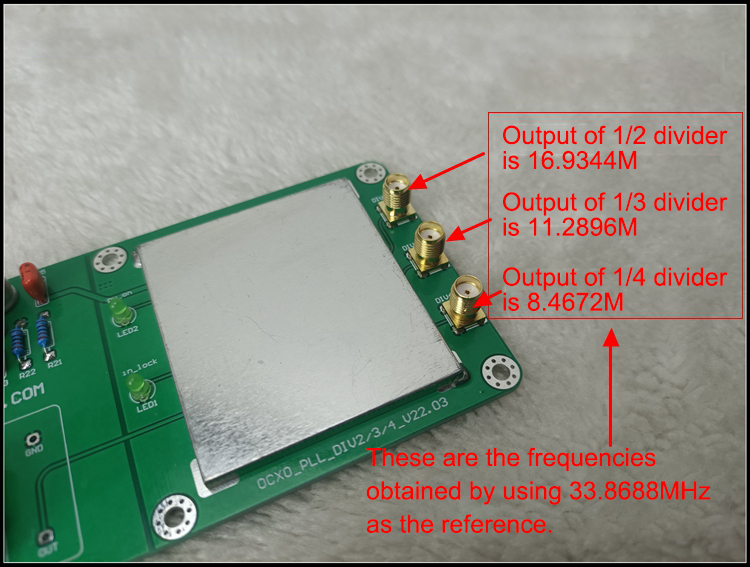

- It outputs 3-way crossover frequency with reference crystal oscillator as the source, and the default is 1/2 divider, 1/3 divider and 1/4 divider. Other crossover points can be changed according to customer requirements. The default common crossover clock is to use the reference 33.8688M. At this time, output of 1/2 divider is 16.9344M, output of 1/3 divider is 11.2896M, output of 1/4 divider is 8.4672M.
- This module can be used to upgrade optical drives, CD players and decoders; it is especially suitable for 2~3 way circuits that require phase synchronization.

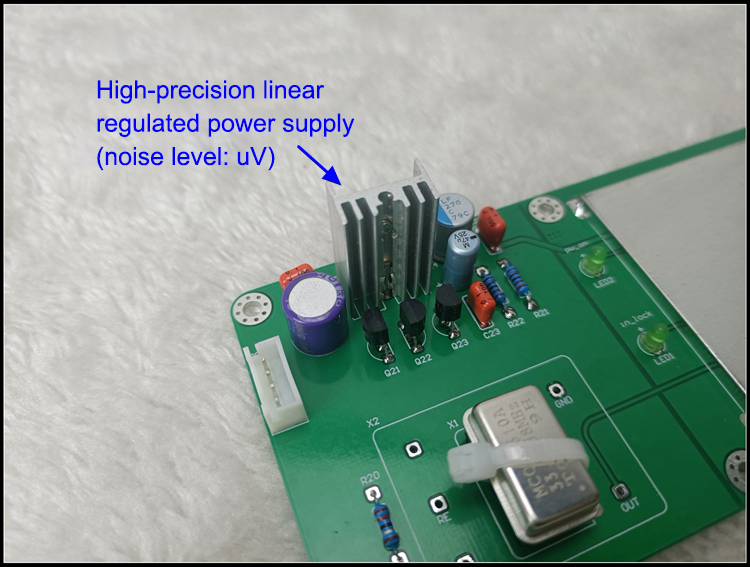

- The power supply uses a nV level regulated power supply to ensure the best working condition of the crystal oscillator. Current is 1~2A. It is default that heat sink can be regulated to work at 500mA. High-current working requires increased heat sink area, mainly considering the constant temperature crystal oscillator. Usually, the current for the ordinary crystal oscillator will not exceed 100ma.

Package Included:
- 1 x Module
