| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $143.79 | $140.85 | $136.45 | $130.58 | Contact US |

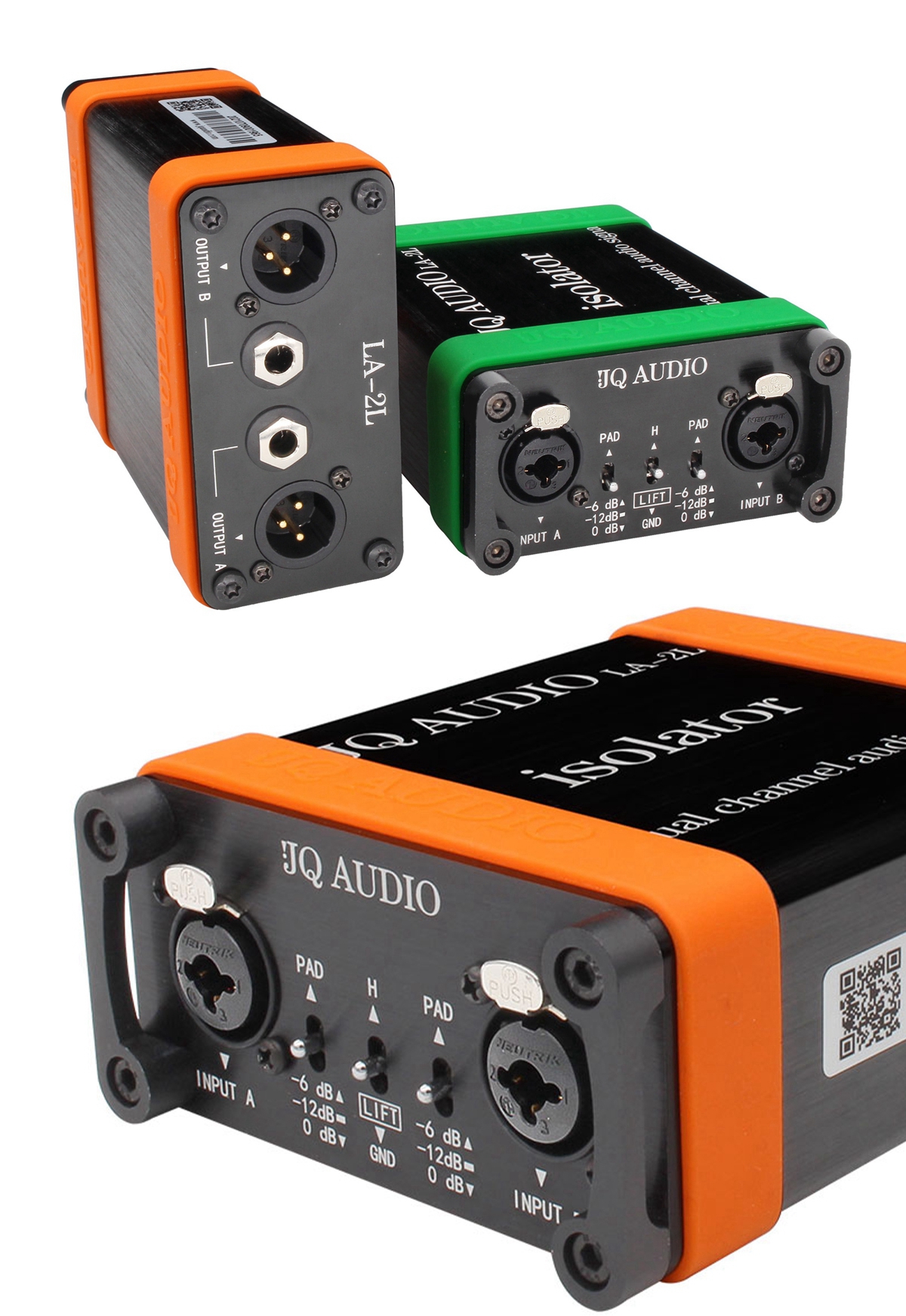

JQ AUDIO LA-2L Multi-function Audio Isolator for Removing Current Acoustic Noise of Audio System
Features:
- Increase the input three gear attenuation switch.
- Three grounding mode selector switches.
- Circuit upgrade.
- The "H" gear is added, and the shock wave is effectively reduced by misoperation plugging.
- Add silicon protection kit to better protect against magnetic impact.

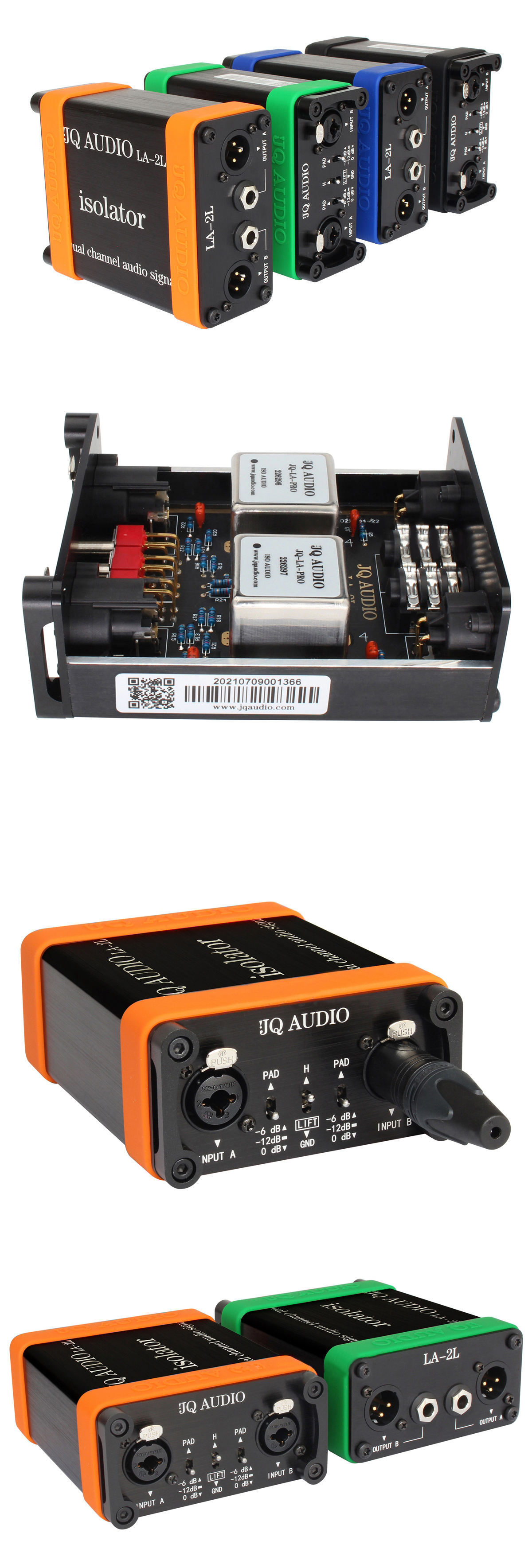

- Industrial design of the shell, CNC processing.
Parameter:
- Model: LA-2L
- Input impedance: 600ohm (AC impedance)
- Output impedance: 600ohm (AC impedance)

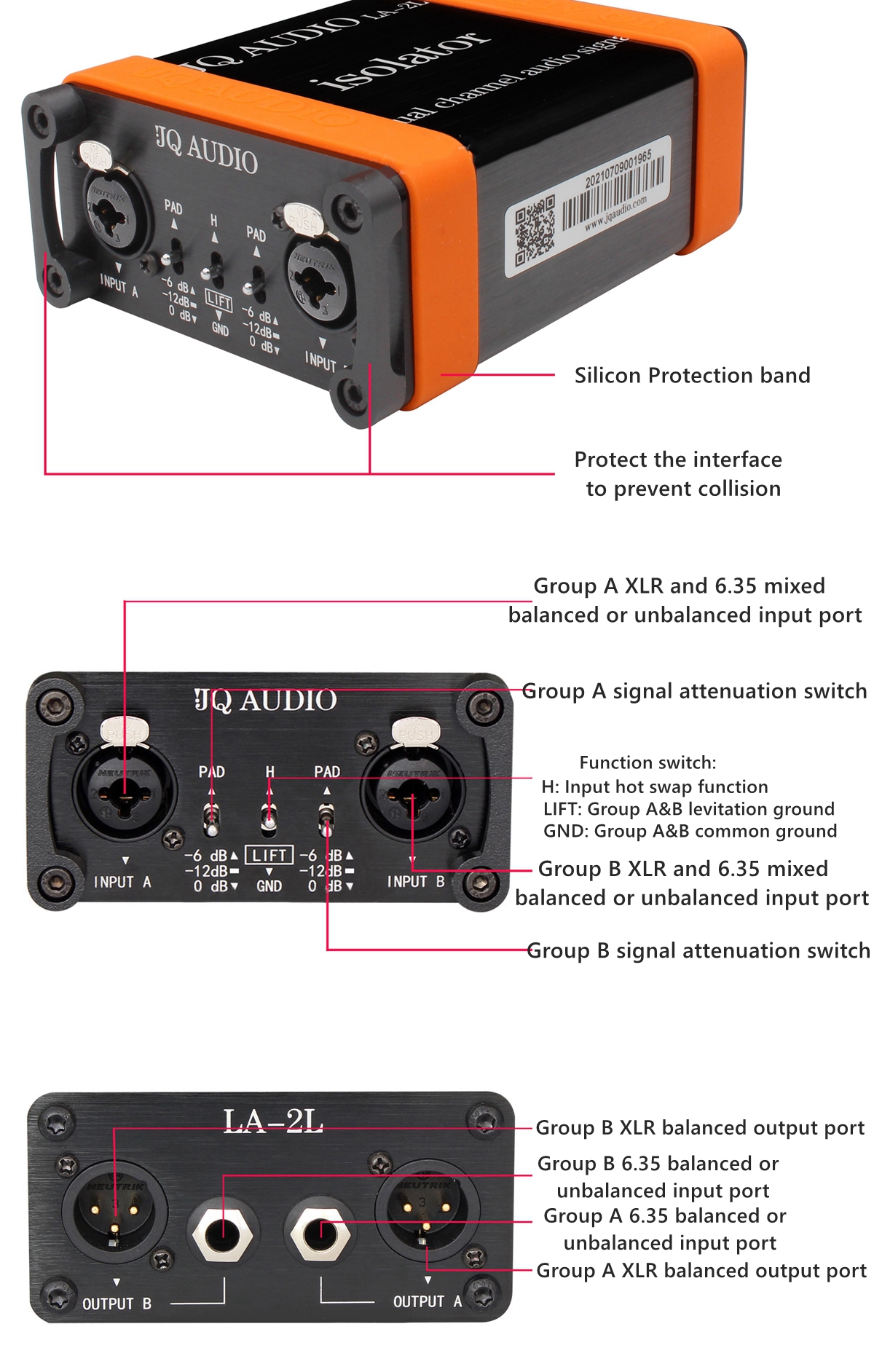

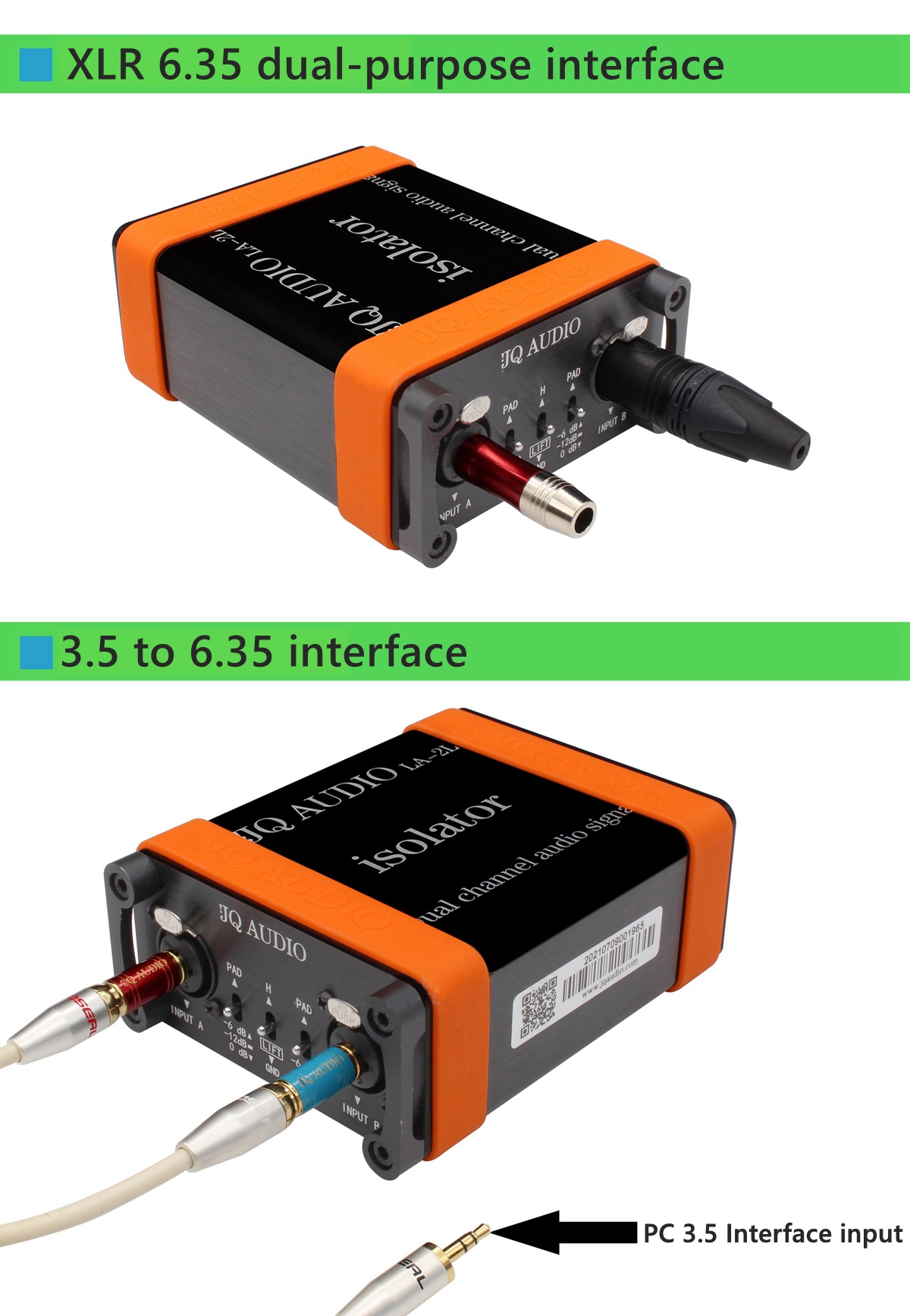

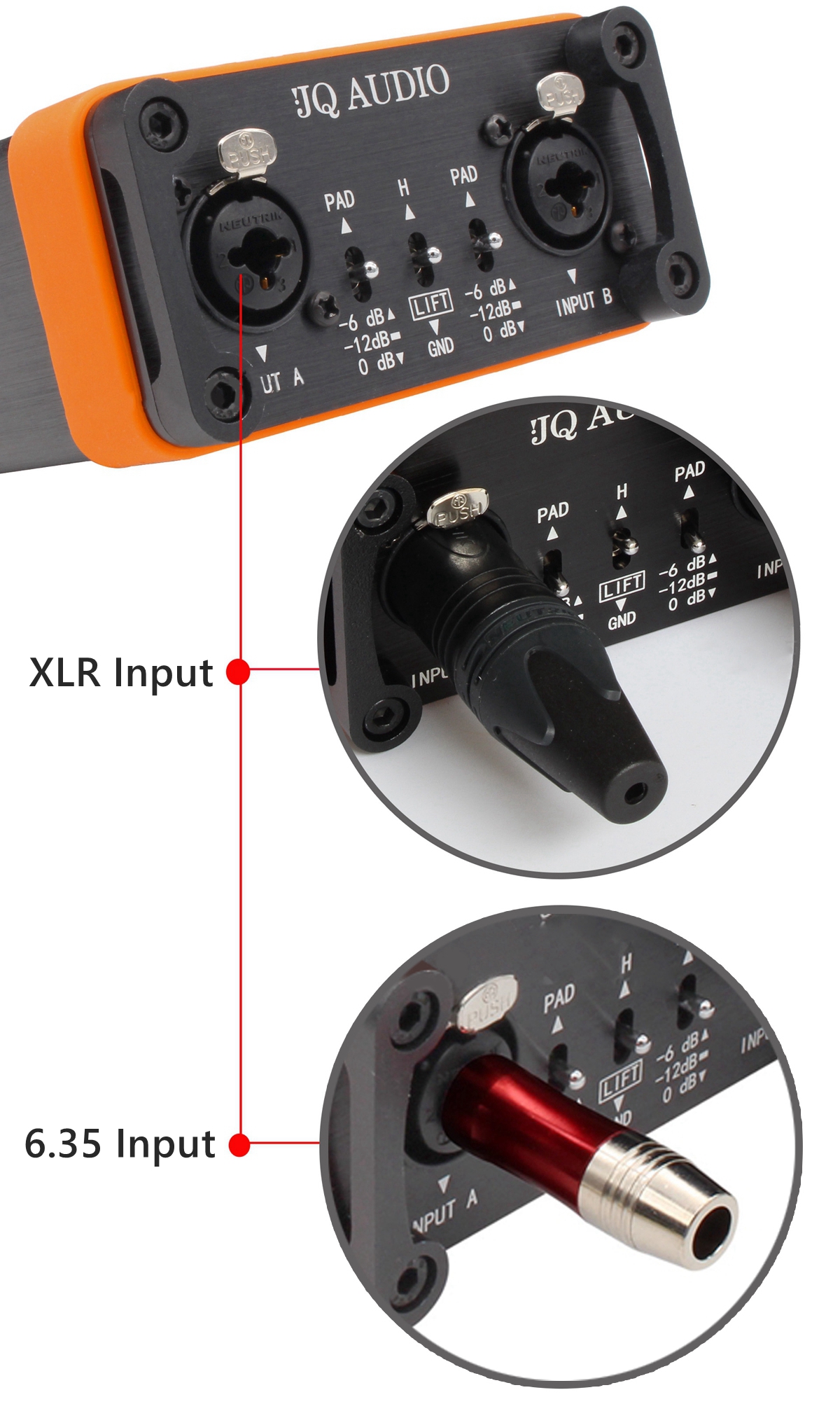

- Input interface: 6.35/XLR (mixed interface) x 2

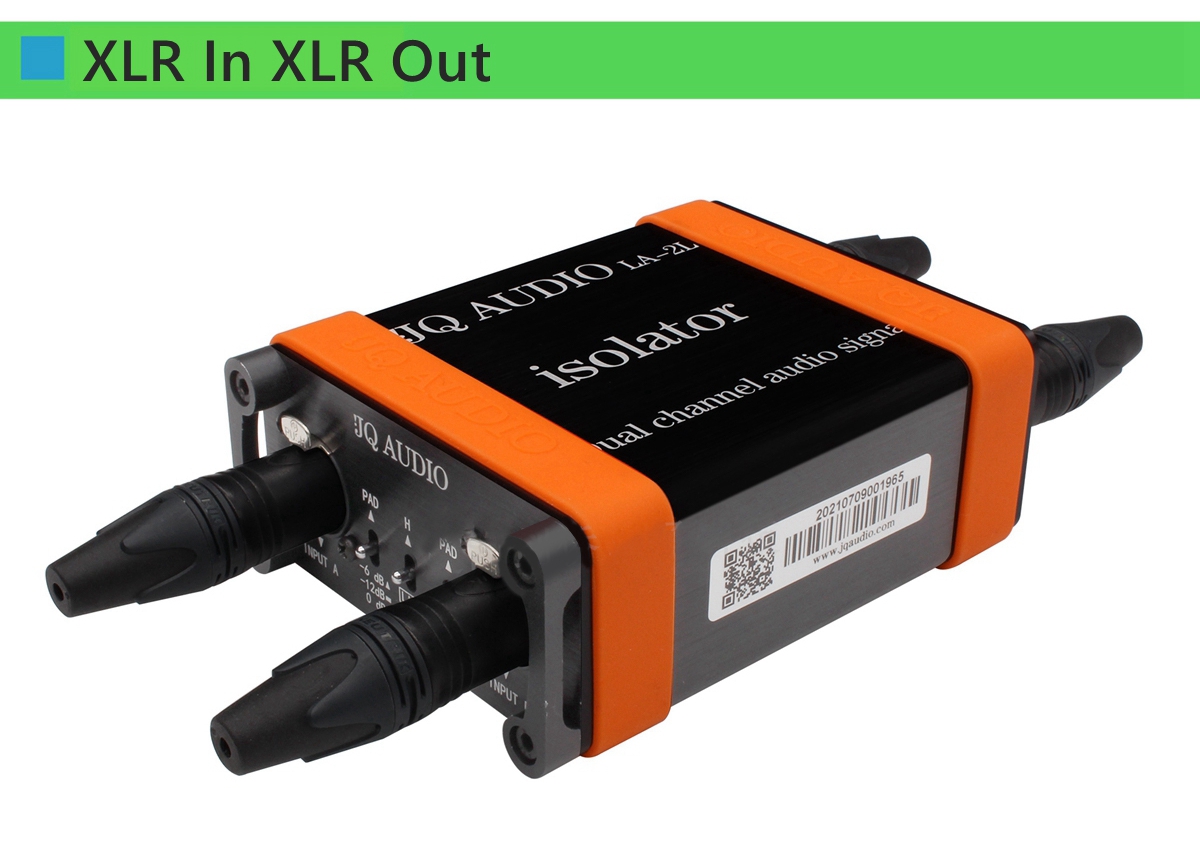

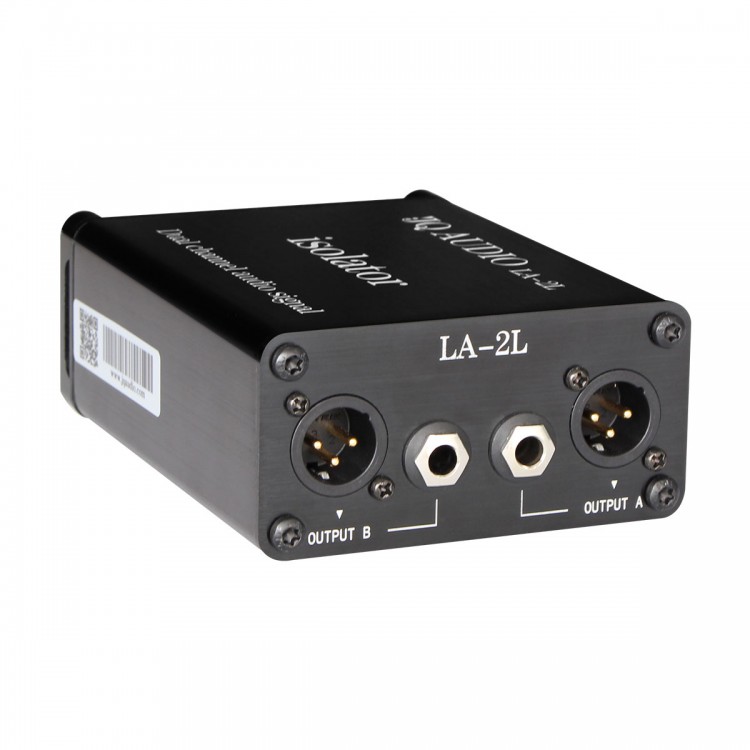

- Output interface: 6.35 x 2, XLR x 2
- Mode: passive

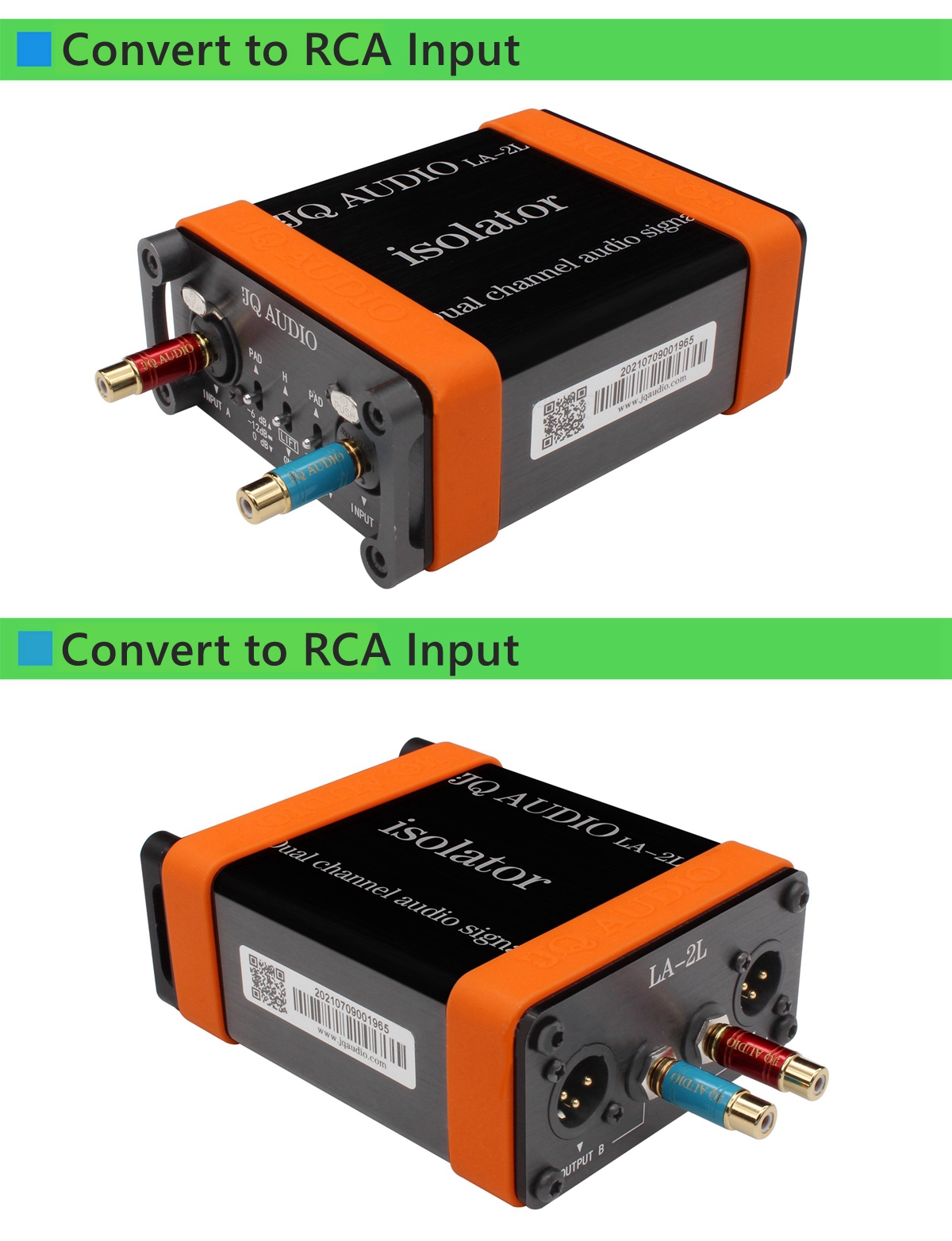

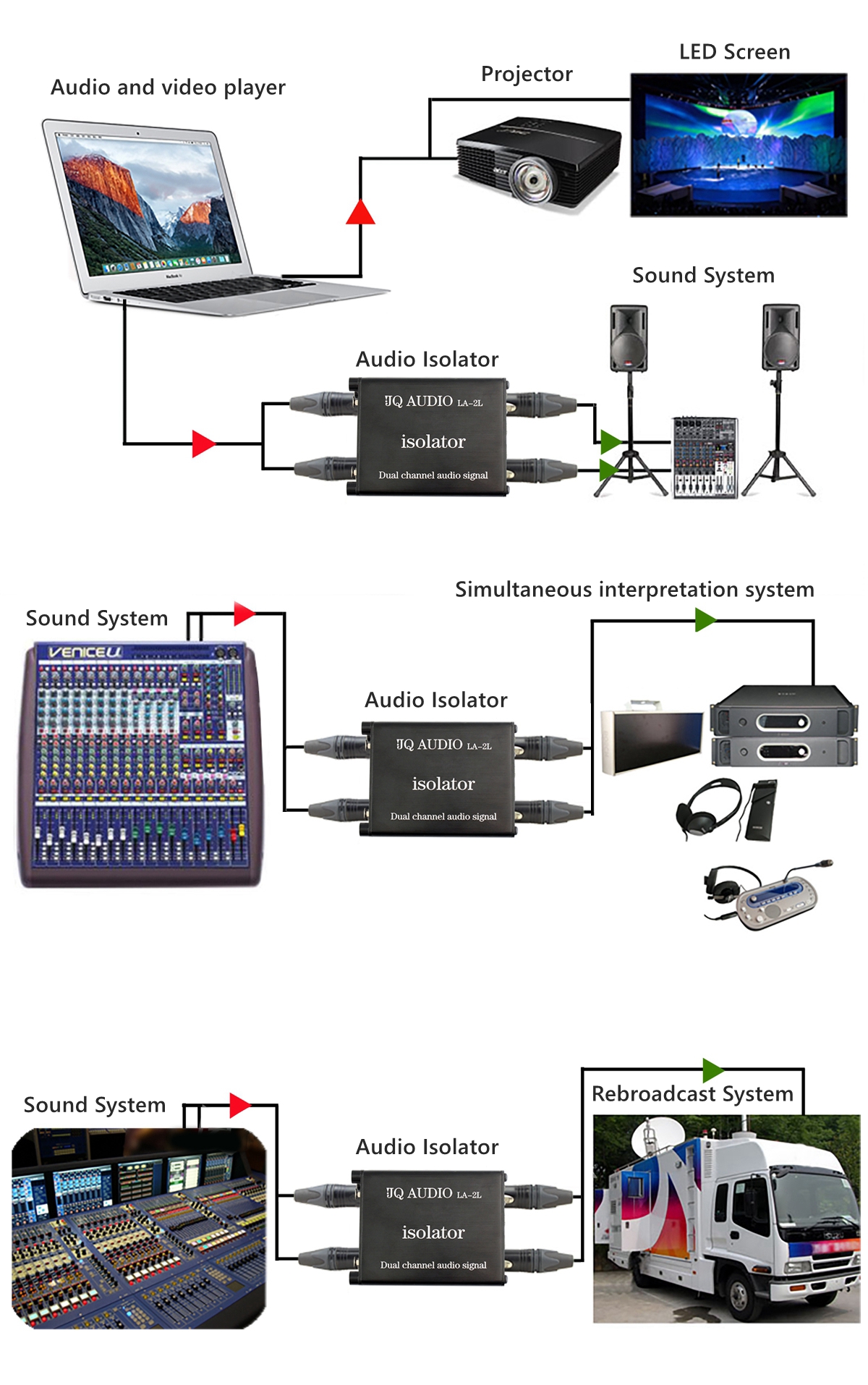

- Main function: Physical isolation of two channels, balanced/unbalanced mutual conversion
- Features: Each input channel is equipped with three gear attenuation switch, and three grounding modes selection
- Frequency response: 20Hz-20KHz (±<0.3db ref 1khz)
- Fixed loss: <0.7db (ref 1khz 1V rms)
- Insulation resistance: DC1000V 100ohm
- Isolation voltage: AC 50Hz-60Hz 0V-1500V
- Size: 135 x 100 x 50mm

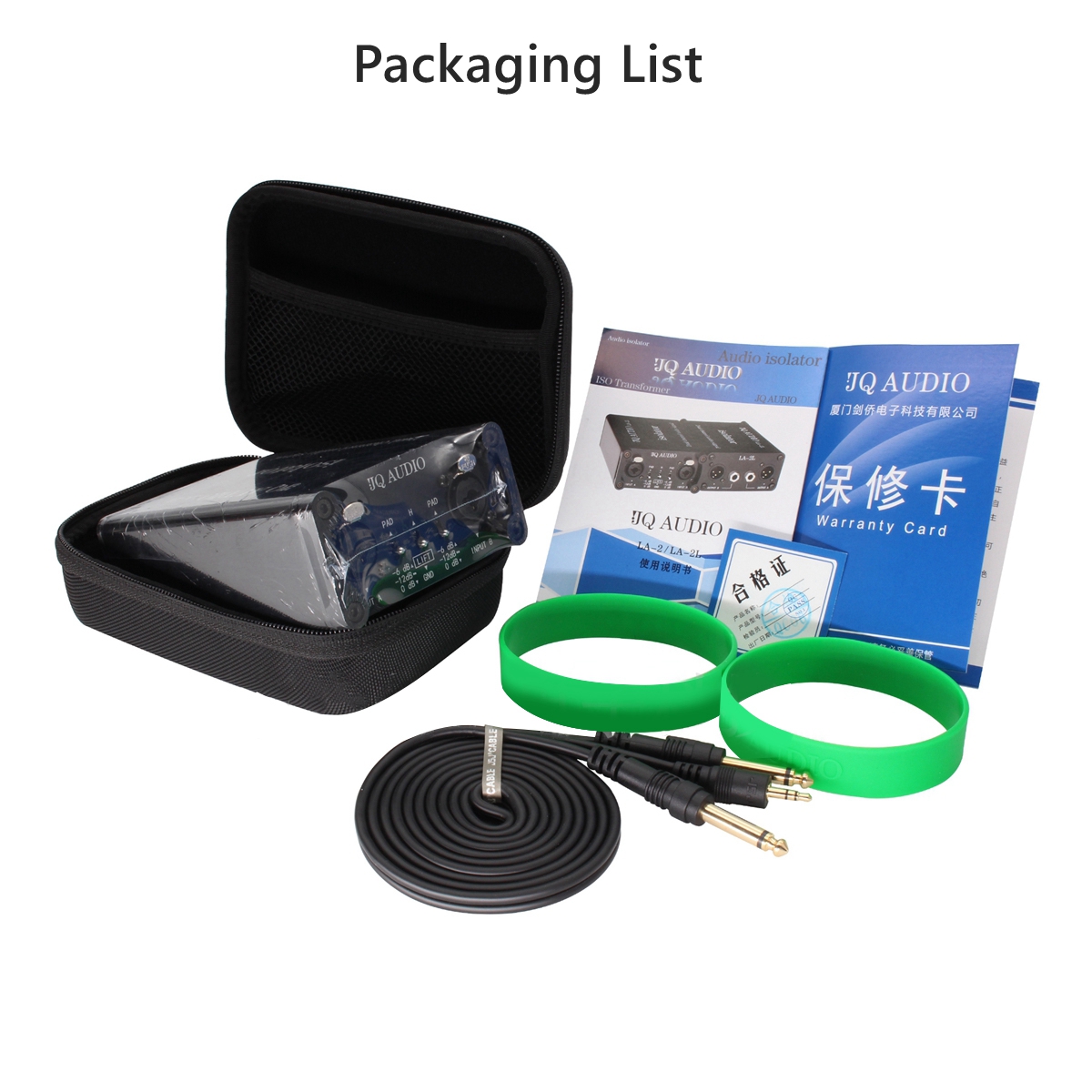

Package Included:
- 1 x Audio Isolator
- 1 x Bag
- 1 x 3.5 to dual 6.5 connection line
- 2 x Silicon protection band (random color)
- 1 x User manual
- 1 x Warranty card
