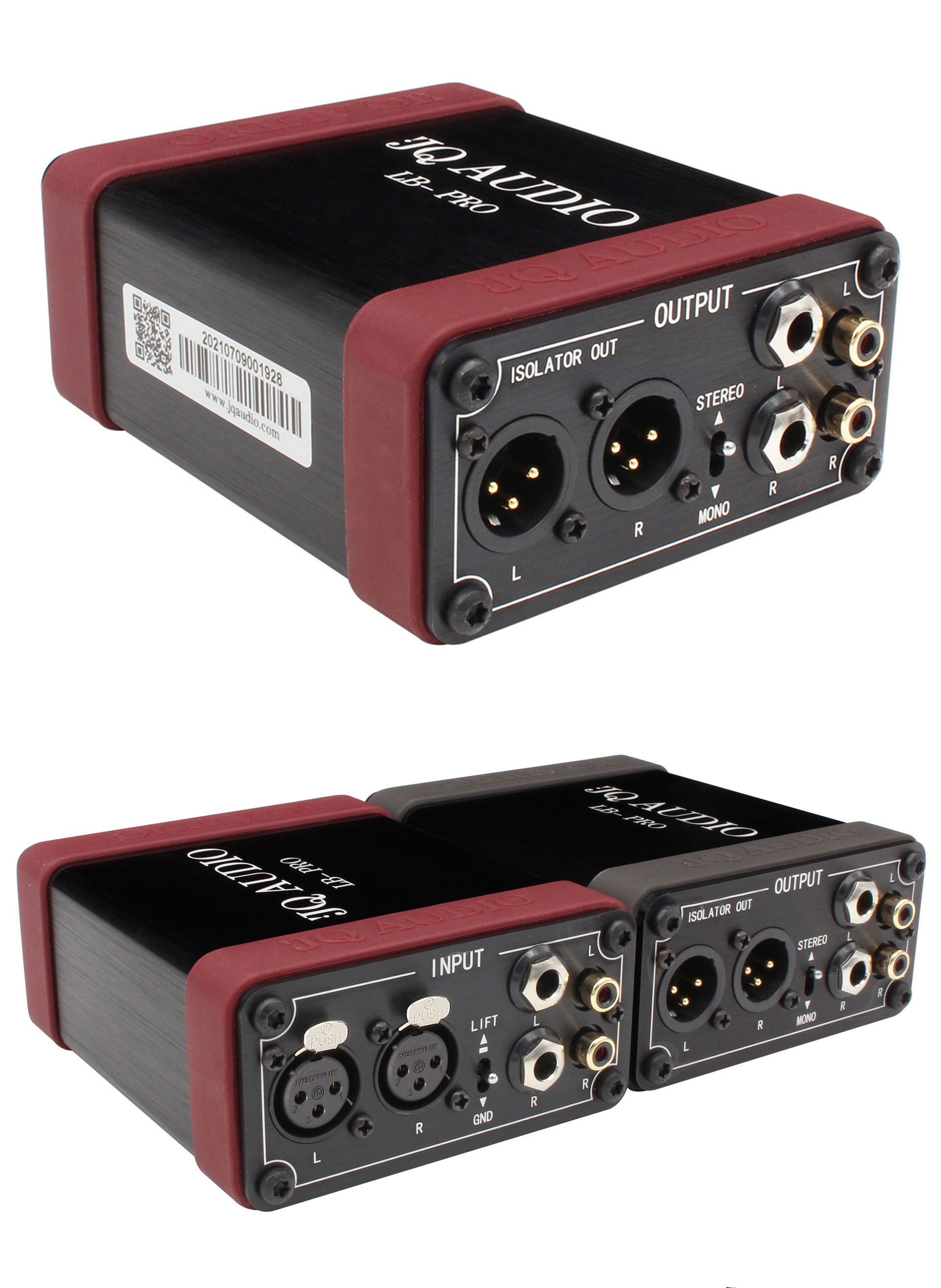

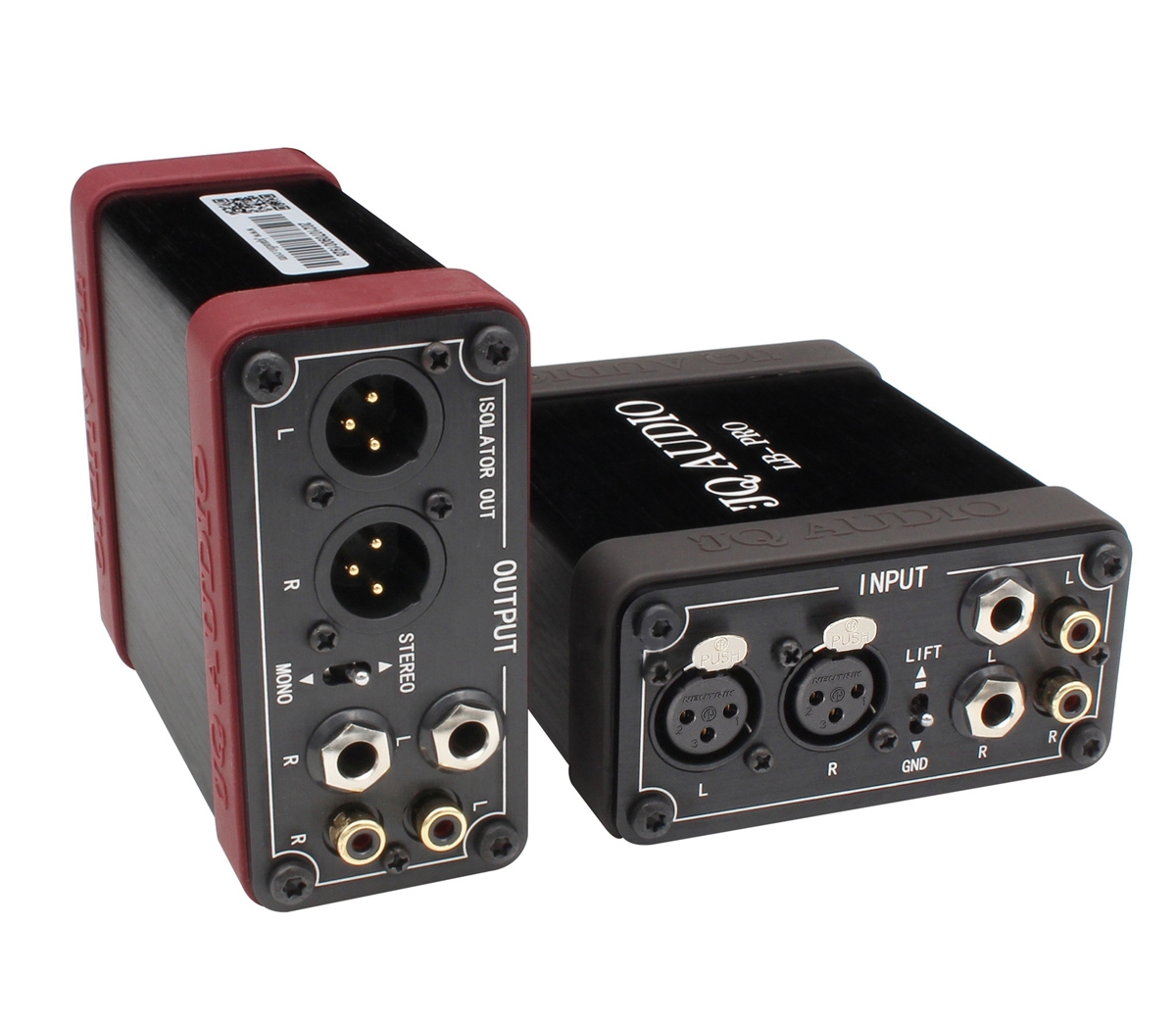

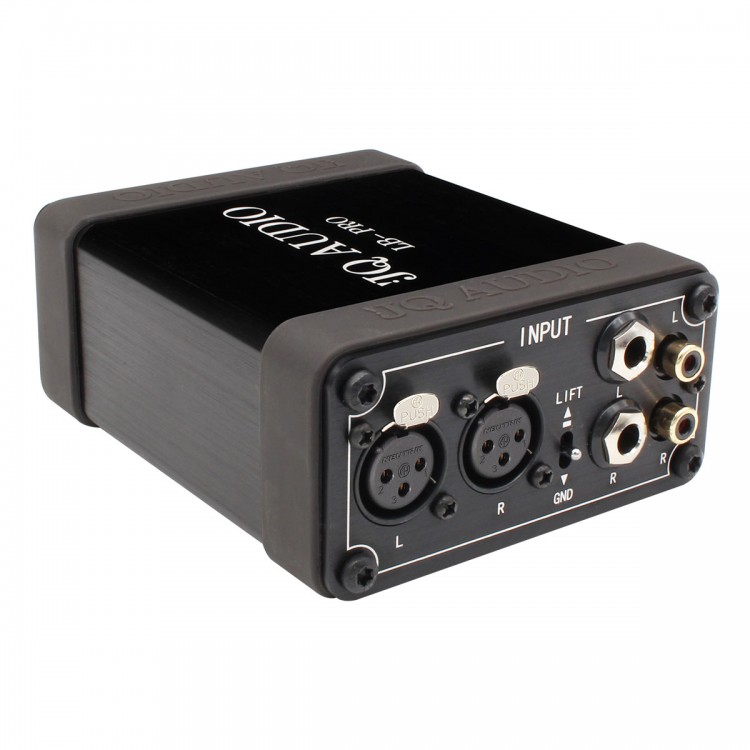

JQ AUDIO LB-PRO Multi-function Audio Isolator for Removing Current Acoustic Noise of Audio System
Parameter:
- Model: LB-PRO
- Input impedance: 600ohm/10K (AC impedance)
- Output impedance: 600ohm/10K (AC impedance)

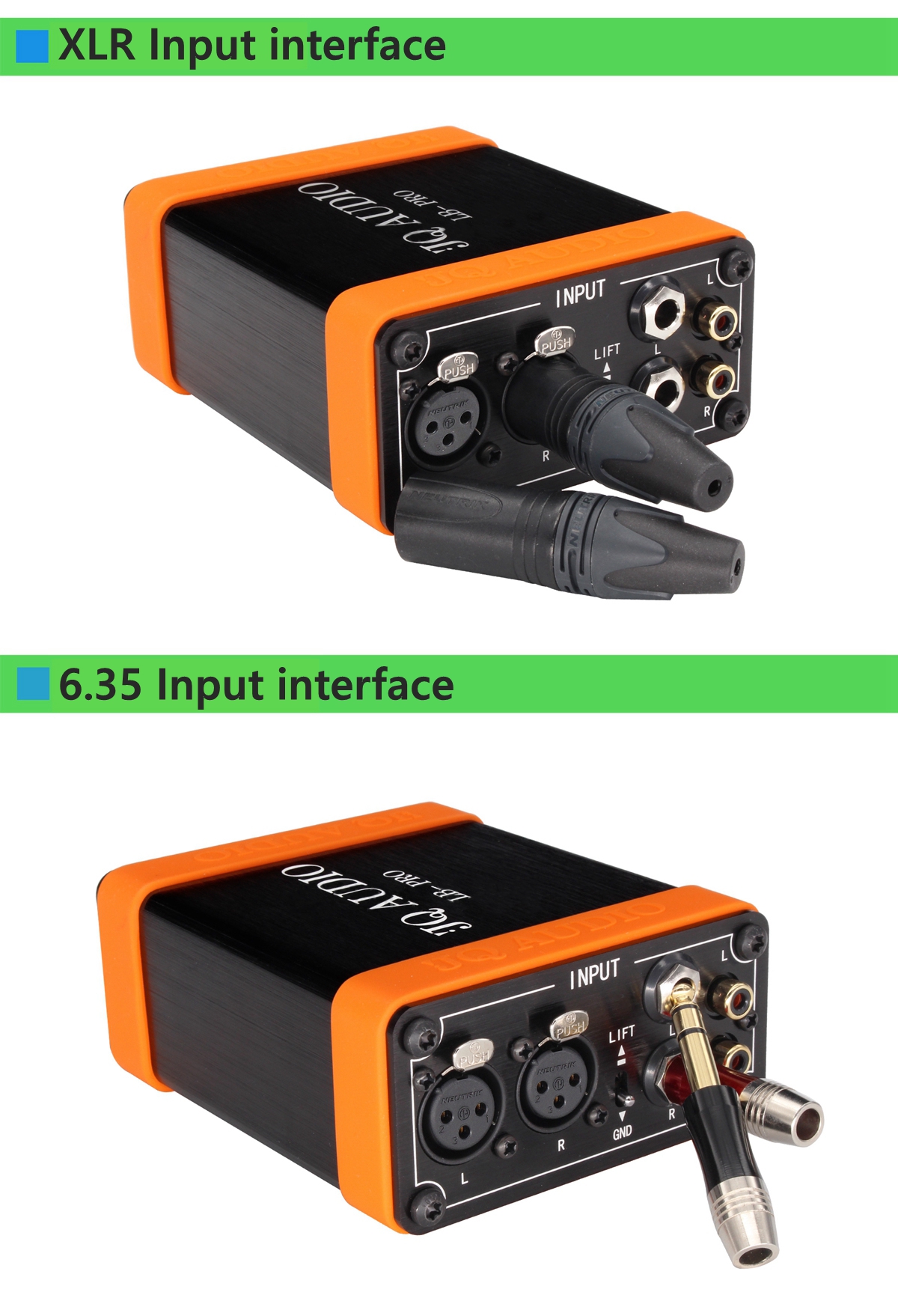

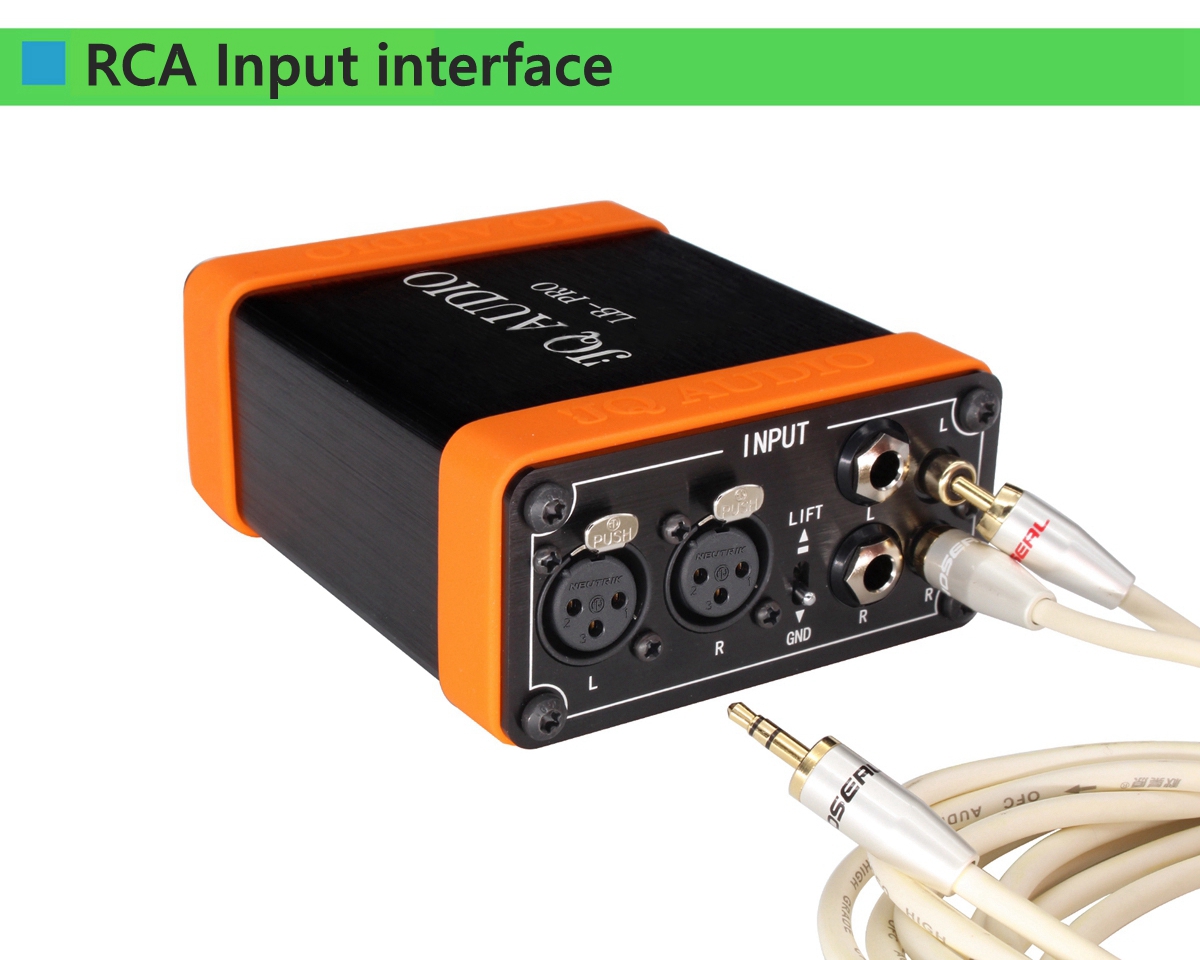

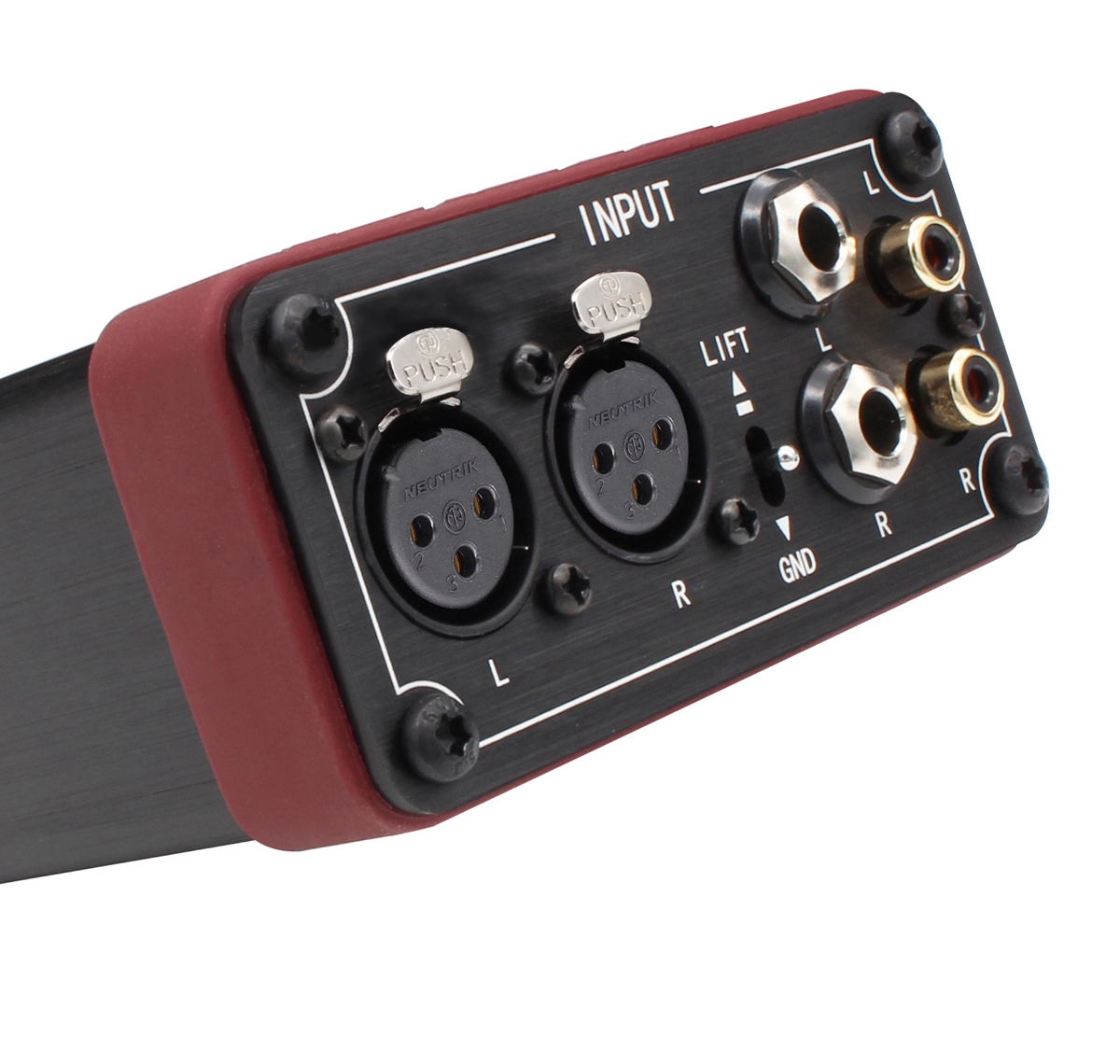

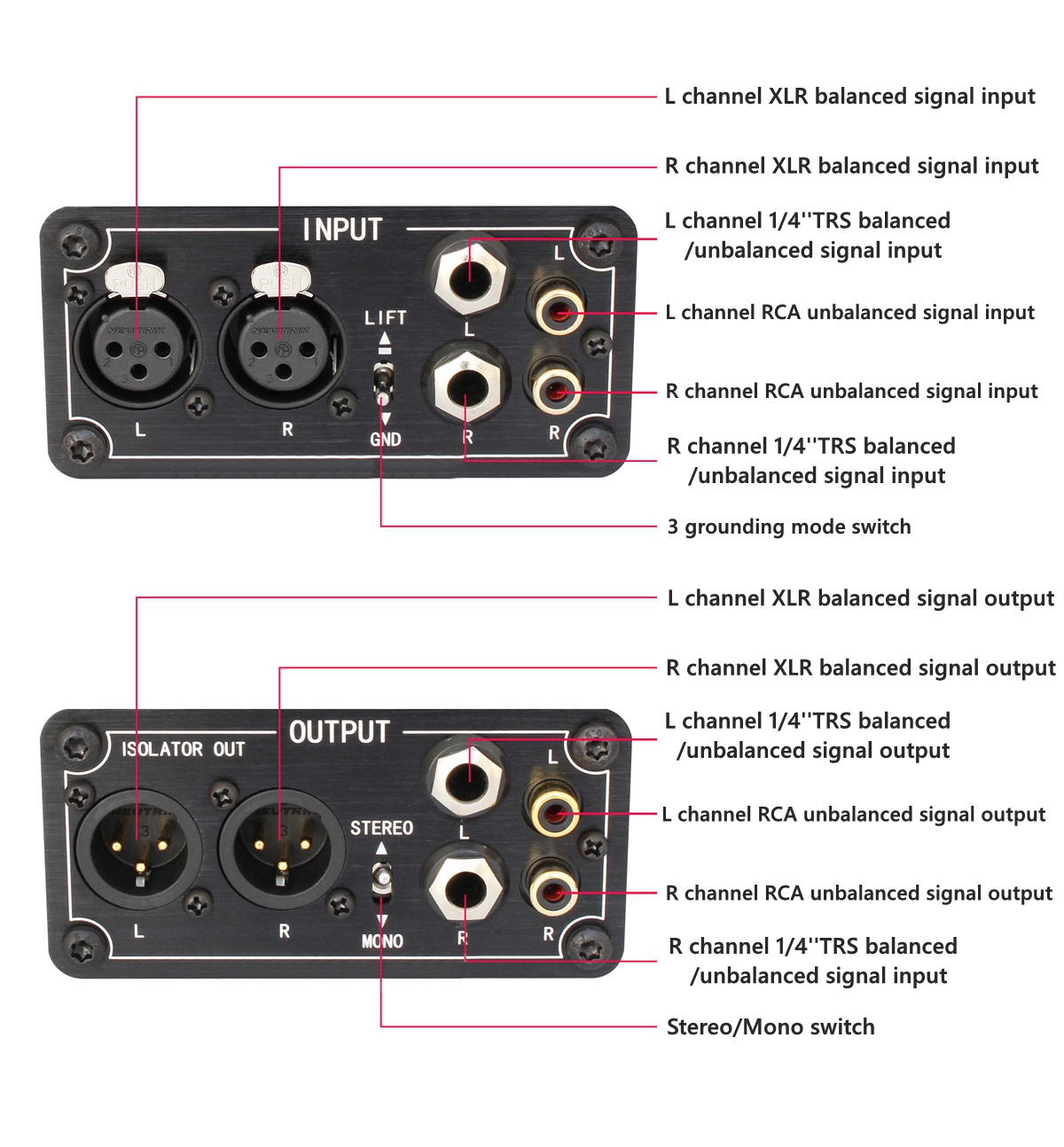

- Input interface: XLR x 2, 1/4’’ TRS x 2, RCA x 2

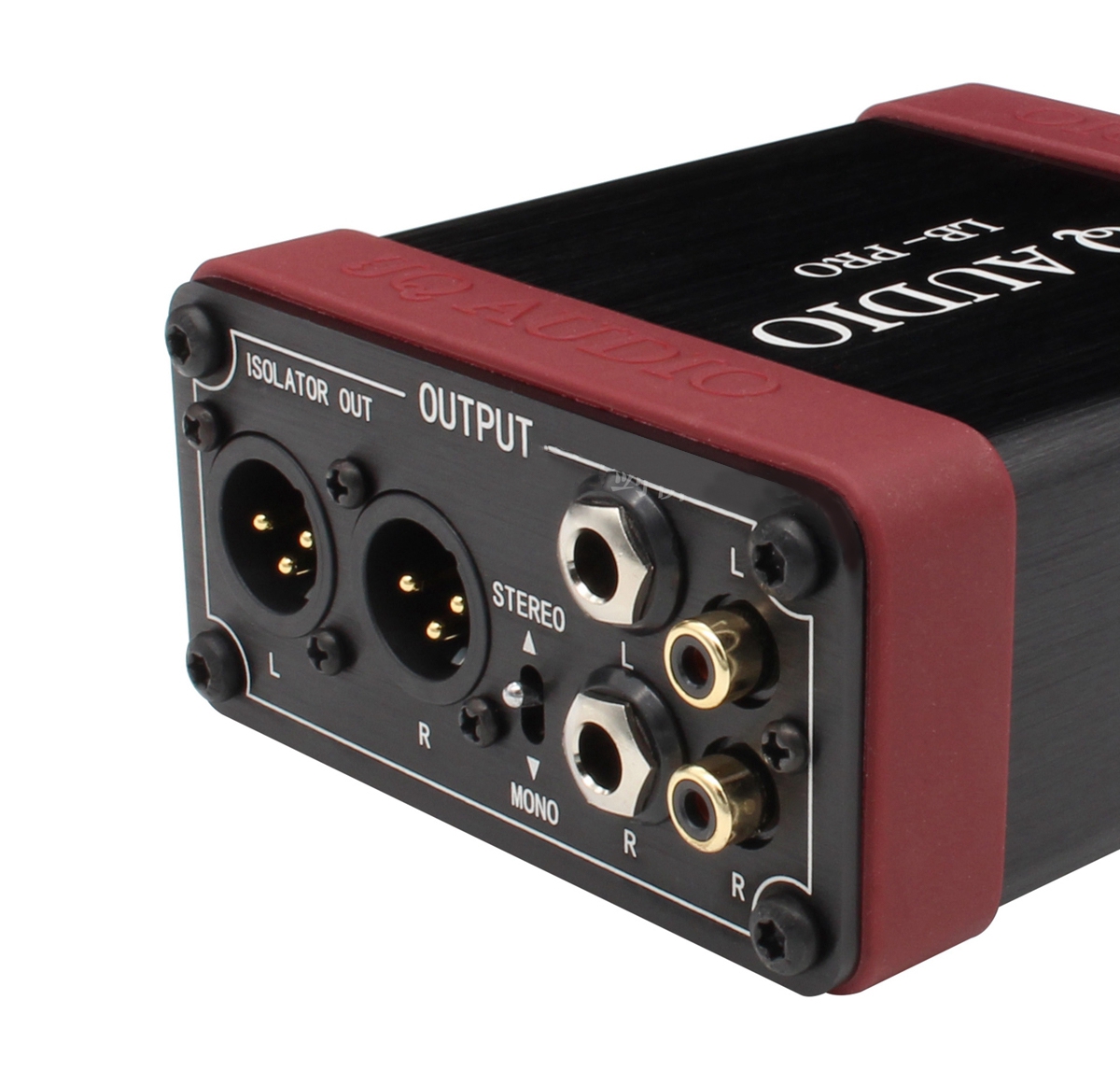

- Output interface: XLR x 2, 1/4’’ TRS x 2, RCA x 2
- Mode: passive
- Main function: Physical isolation of two channels, balanced/unbalanced mutual conversion
- Features: Each input channel is equipped with three gear attenuation switch, and three grounding modes selection
- Frequency response: 20Hz-30KHz (±<0.2db ref 1khz)
- Fixed loss: <0.7db (ref 1khz 1V rms)
- Insulation resistance: DC1000V 100ohm
- Isolation voltage: AC 50Hz-60Hz 0V-1500V
- Size: 135 x 100 x 50mm

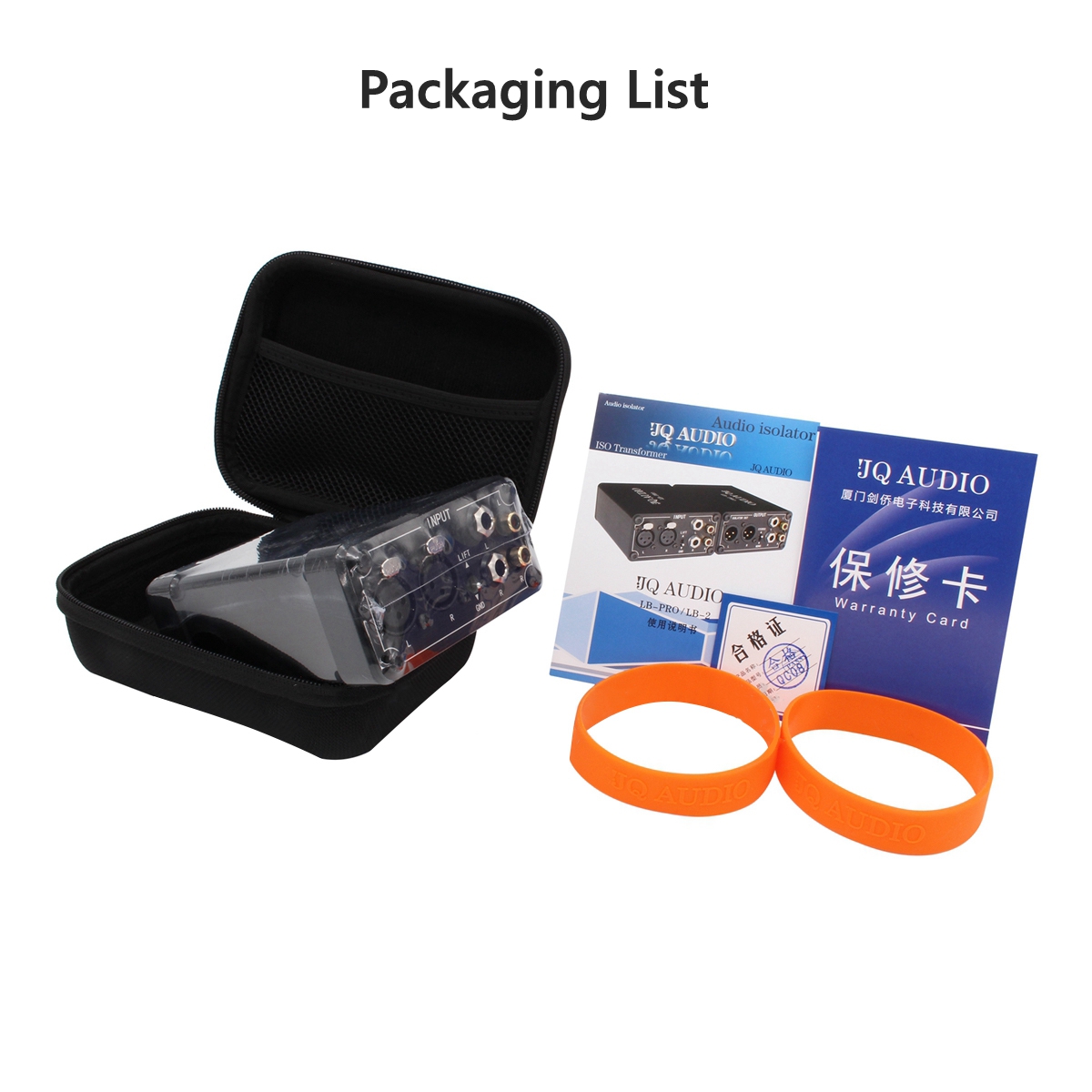

Package Included:
- 1 x Audio Isolator
- 1 x Bag
- 2 x Silicon protection band (random color)
- 1 x User Manual
- 1 x Warranty Card
