| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $766.94 | $751.29 | $727.81 | $696.51 | Contact US |
Hawk Eye 4-Channel Receiving FPV Monitor Distribution Display HDMI-compatible TV Dual Output 5.8G for Racing Drones
$183.48
JS 640X512 4MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module
$900.97
JS 384X288 4MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module
$594.09

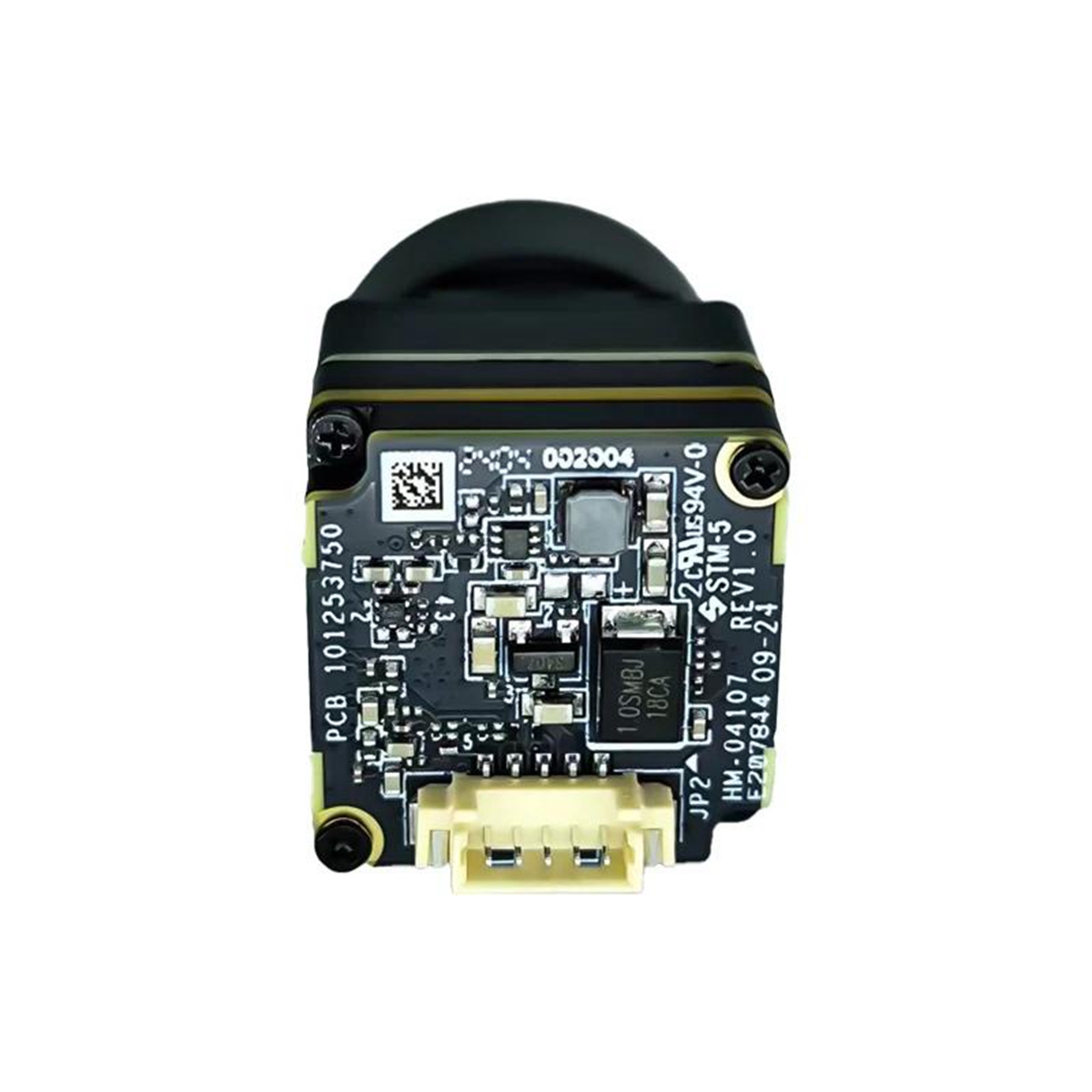

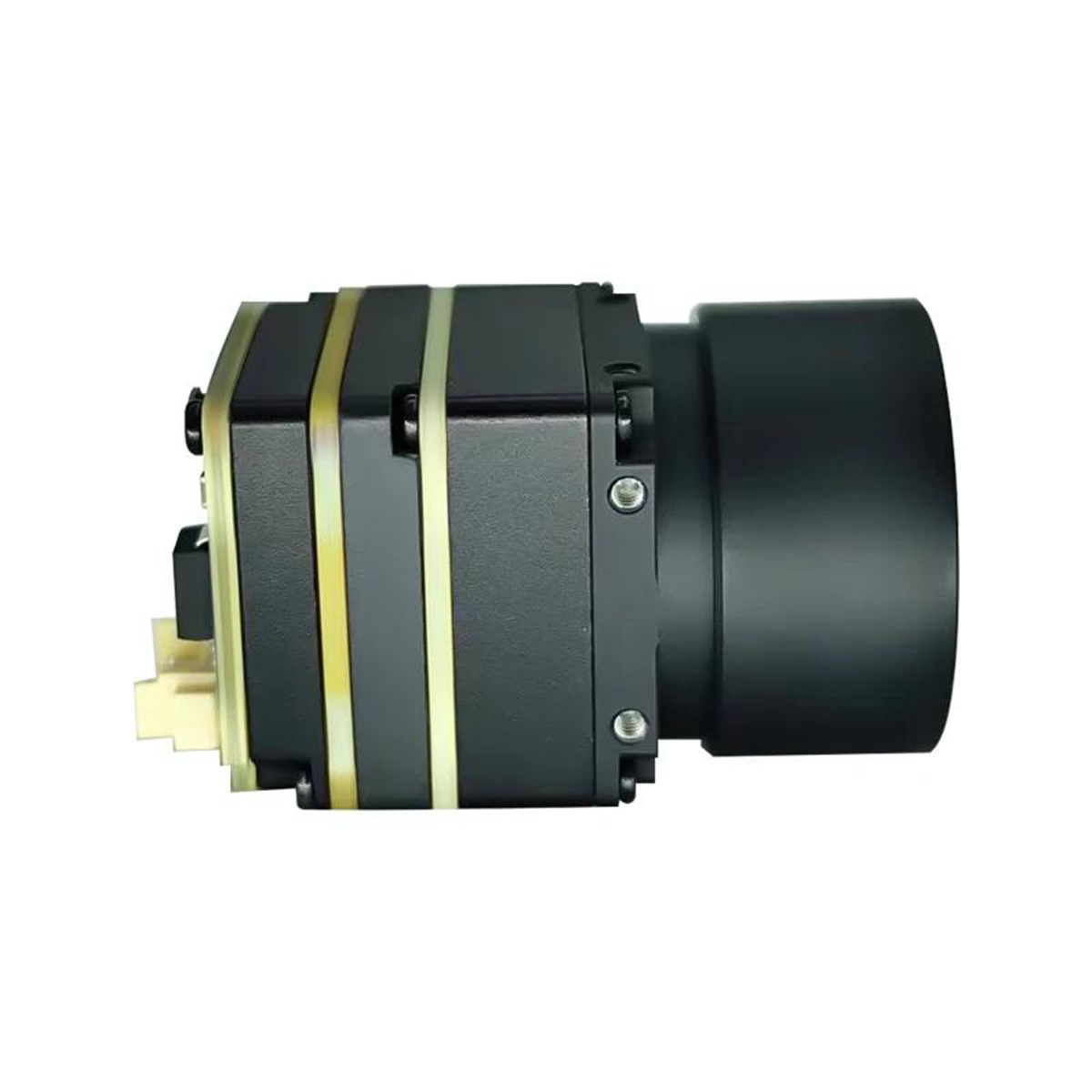

JS 640X512 9.1MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

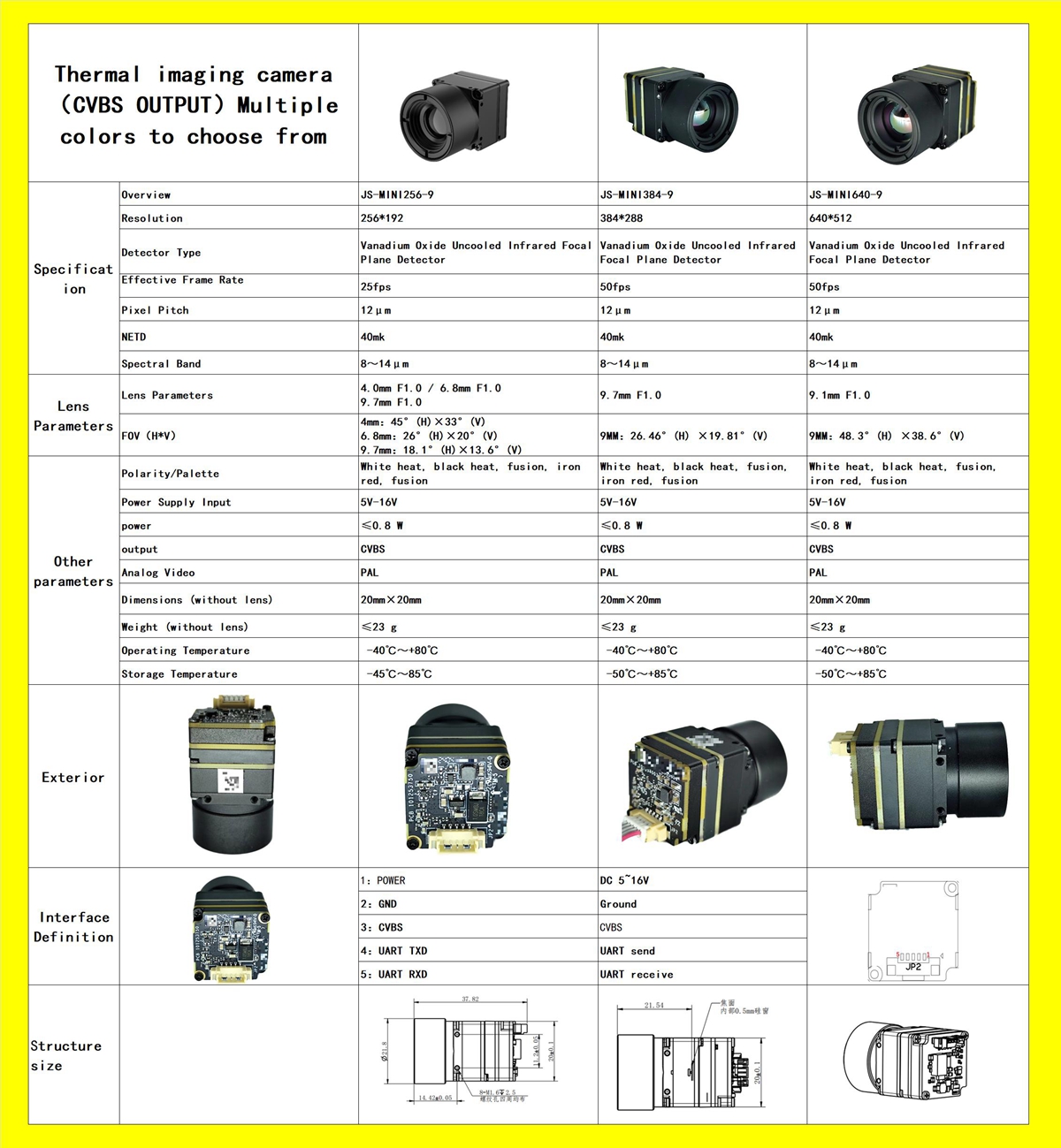

Specification:
- Resolution: 640 x 512
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 9.1mm F1.0
- FOV (HxV): 9mm: 48.3°(H) x 38.6°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -50℃ ~ 85℃
Package Included:
- 1 x Thermal Imager
