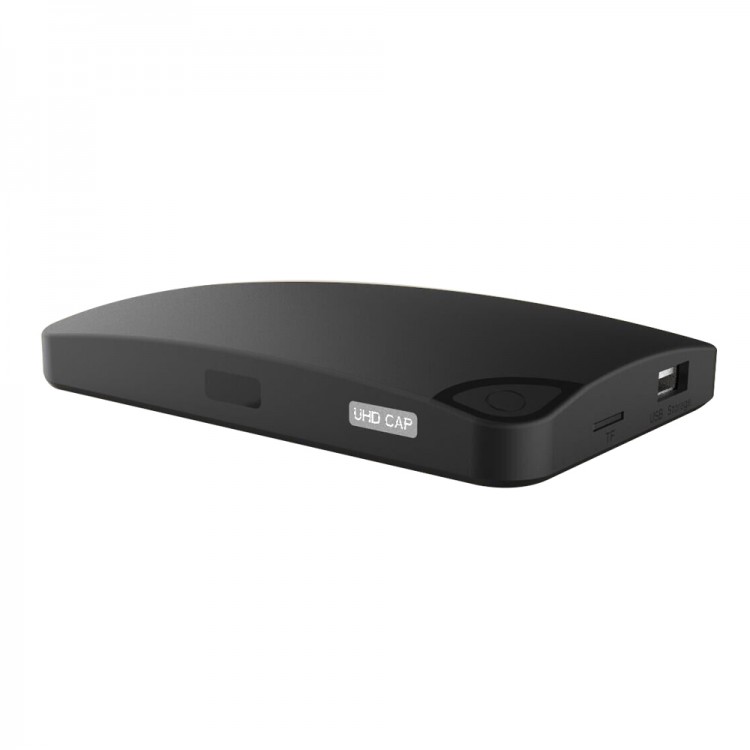

JS3060 2K 4K UHD Box PVR Video Recording HD USB3.0 HDMI AV SDI

JS3060 2K 4K UHD Box PVR Video Recording HD USB3.0 HDMI AV SDI

Key Features:

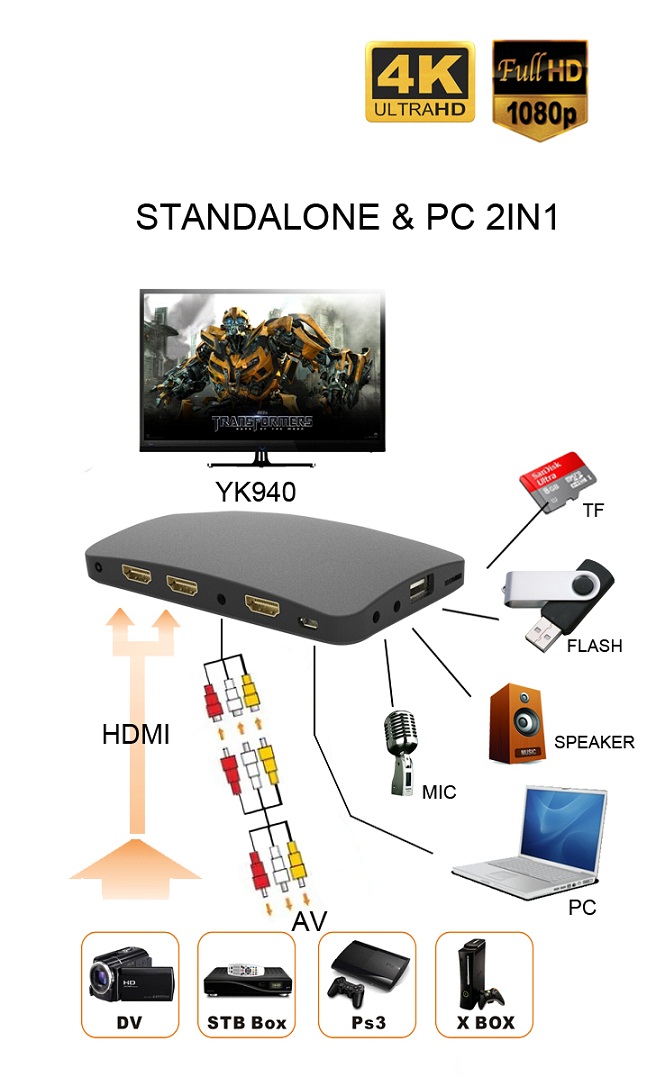

- 4K2K UHD Recording from DVD,OTT,Receiver,PC,PS and Xbox
- Dual mode design,HD recording on external USB
- Storage (Standalone) and TF CARD or PC HDD
- OSD control with multi-language
- H.264 HD hardware encoding up to 1080P 30FPS
- 2 Port HDMI input,1Port HDMI output,AV/L/R Cable
- HDMI pass-through without latency
- Recording data rate up to 16Mbits/sec in MP4 format
- Recording audio via integrated microphone input
- Support remote control (IR)

Specification:
- Bit rate:Bit rate Max: 16Mbps, default 10Mbps
- Recording file size:Unlimited
- Input:
1 HDMI,2 HDMI
Composite (CVBS) L/R
MIC (Audio in)
- Output:
HDMI
USB 2.0 storage and TF Card
Micro USB for PC connection
Line Out

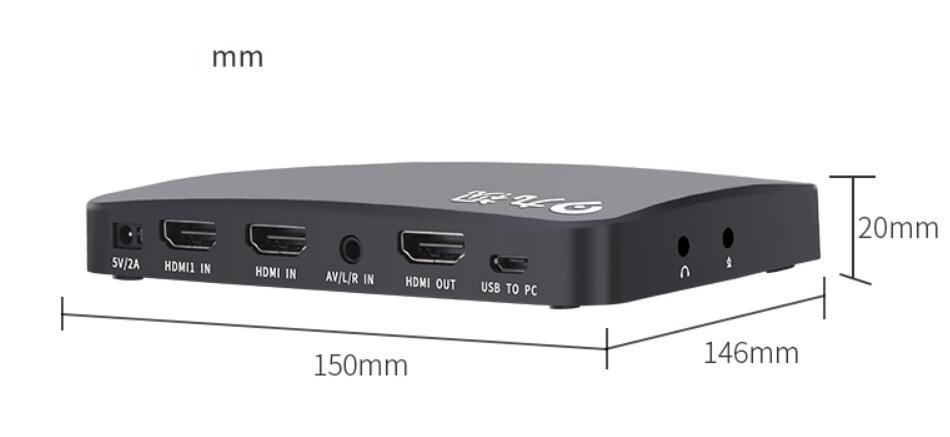

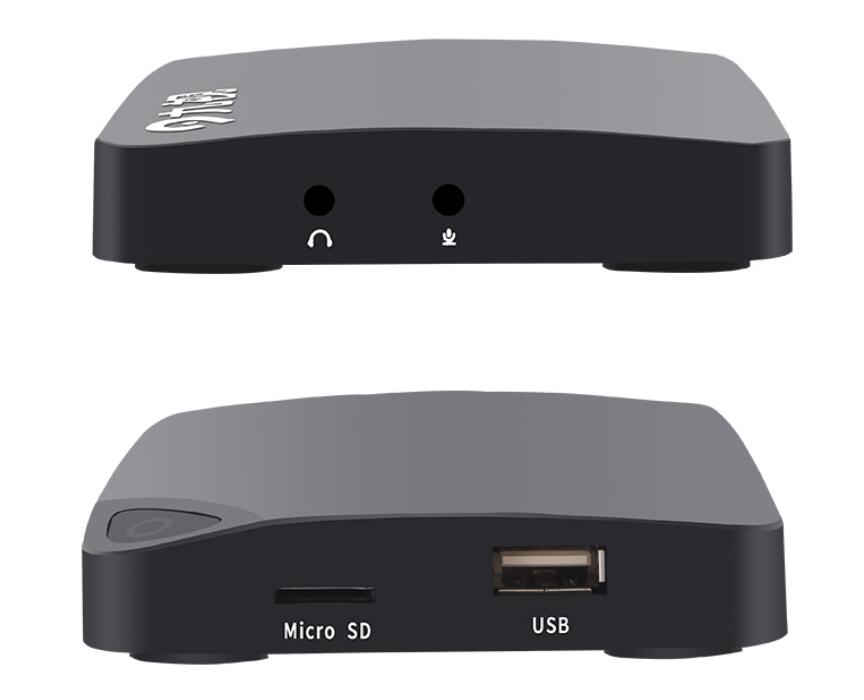

Interface:
- 2 HDMI input/output
- CVBS / L/R/ Microphone input / Audio out
- USB 2.0 external hard drive (IDE and SATA/2.5” & 3.5”/7200, 5400, 4200)
- USB output to PC and TF Card
- Power 5V/2A input

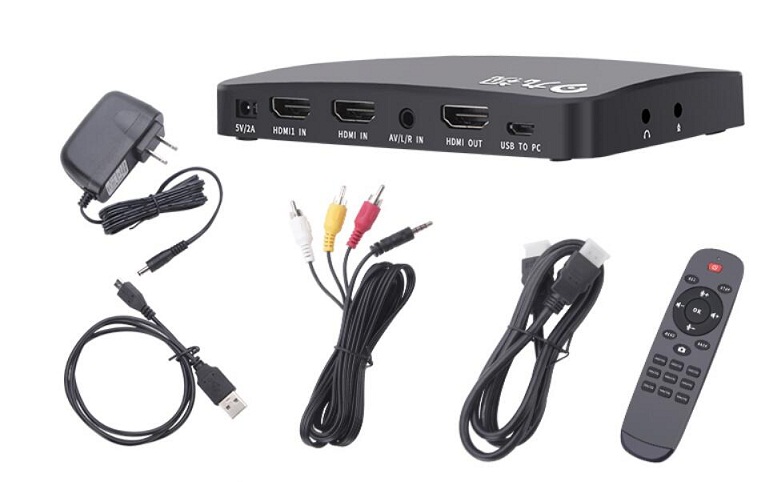

Package Contents:
- 1 x UHD box
- 1 x Remote control unit
- 1 x HDMI cable
- 1 x Micro USB to USB cable
- 1 x AV/L/R Cable
- 1 x Software DVD
- 1 x Power Adapter 5V/2A
