JSK-5800ACT-VH 5" HD CCTV Tester Security Camera Tester VGA HDMI Input For 5MP TVI 5MP AHD 4MP CVI
Product Functions:
● Video signal test function
● HD video surveillance tester with built-in high-definition 5.0-inch 800 (RGB) * 480 wide viewing angle display, supporting PAL/NTSC image signals
● PTZ control function
The video surveillance tester has built-in PTZ control protocol. For Pelco-D/P. Through RS485 interface, you can control the up, down, left, and right of the pan/tilt, zoom, focus, and aperture size.
● DC12V 1A power supply output function
The video surveillance tester is designed to supply camera with a 12V 1A power supply output port to provide temporary power to camera.
● Audio test function
It can test audio devices such as pickups in the video surveillance front end.
● Enhanced network cable test function
The network cable test function passes the UTP CABLE TEST test port on the meter.

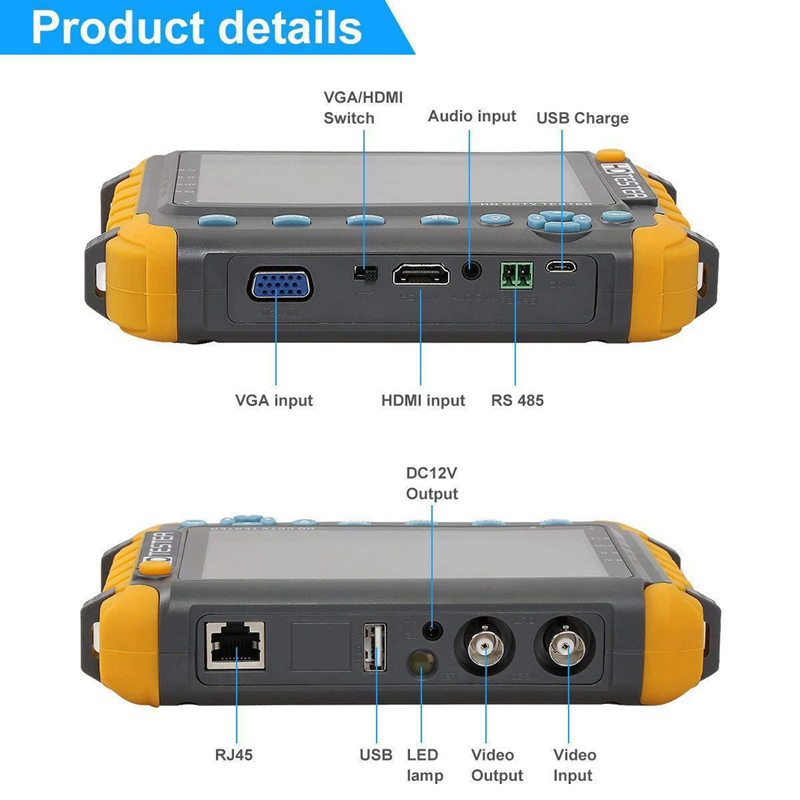

● VGA input
Support VGA video input, when accessing VGA video cable, please enter menu to select VGA mode, resolution supports 1024*768, 1280*1024.
● HDMI input
Support HDMI video input, when connected to HDMI video cable, it will automatically switch to HDMI mode, resolution supports 480i/P, 576i/P, 720i/P, 1080i/P.

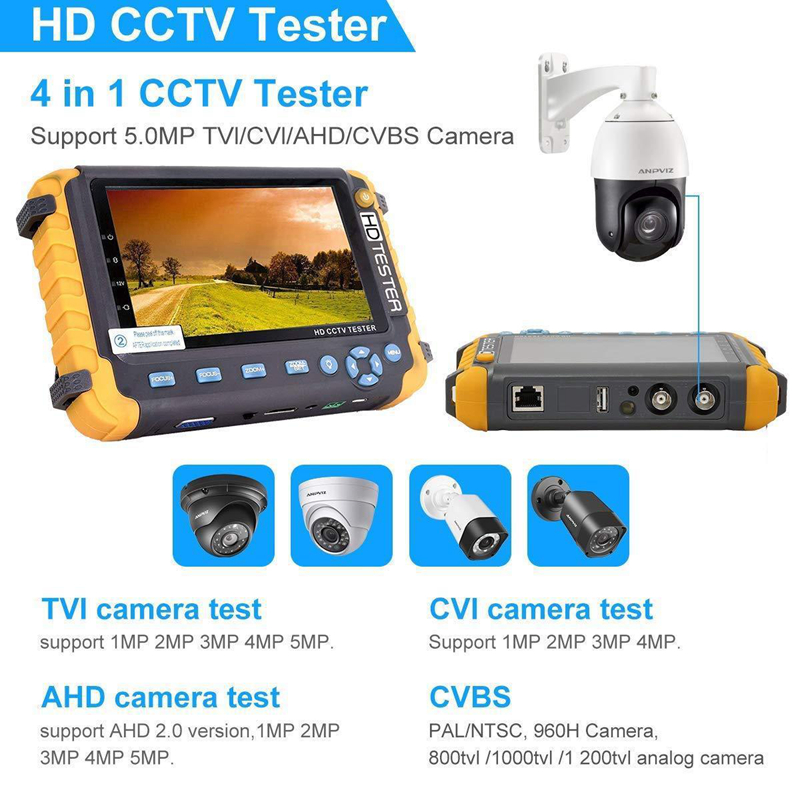

● TVI camera test
TVI coaxial HD video surveillance test, support 720p 25/30/50/60fps/1080p 25/30fps, 5MP resolution camera image test.
● AHD camera test
AHD coaxial HD video surveillance test, support 720p 25/30fps/1080p 25/30fps, 5MP resolution camera image test.
● CVI camera test
CVI coaxial HD video surveillance test, support 720p 25/30fps/1080p25/30fps, 4MP resolution camera image test.
● Rechargeable
Charge in 2-3 hours (excluding CCD power supply output).

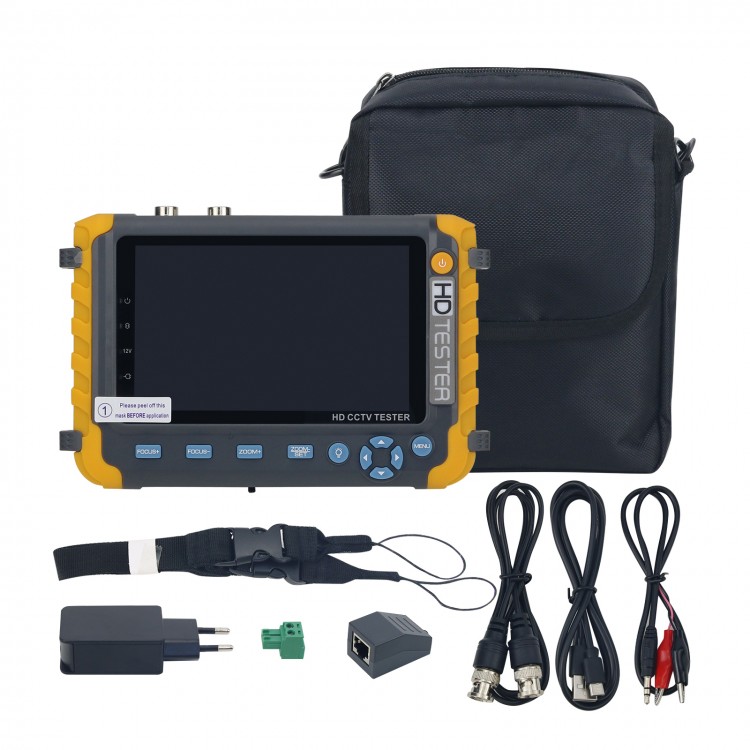

Package Included:
- 1 x Set of CCTV Tester
Note: Camera pictured is not included.
