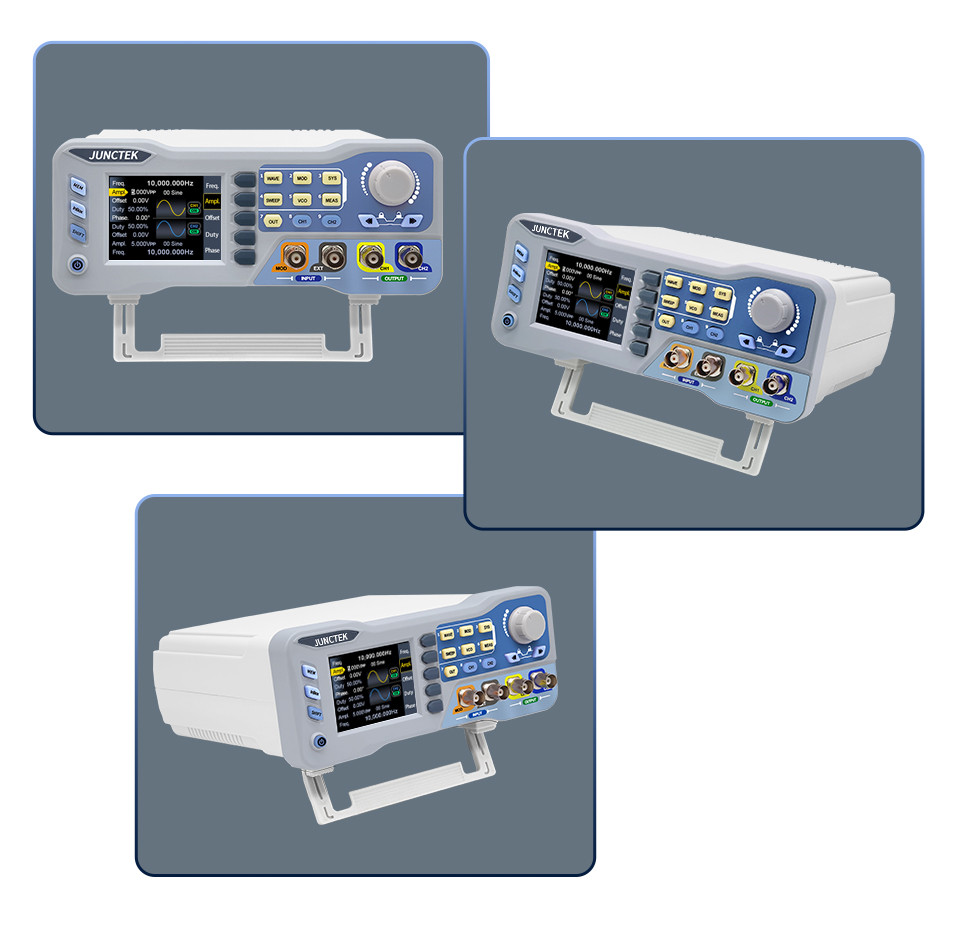

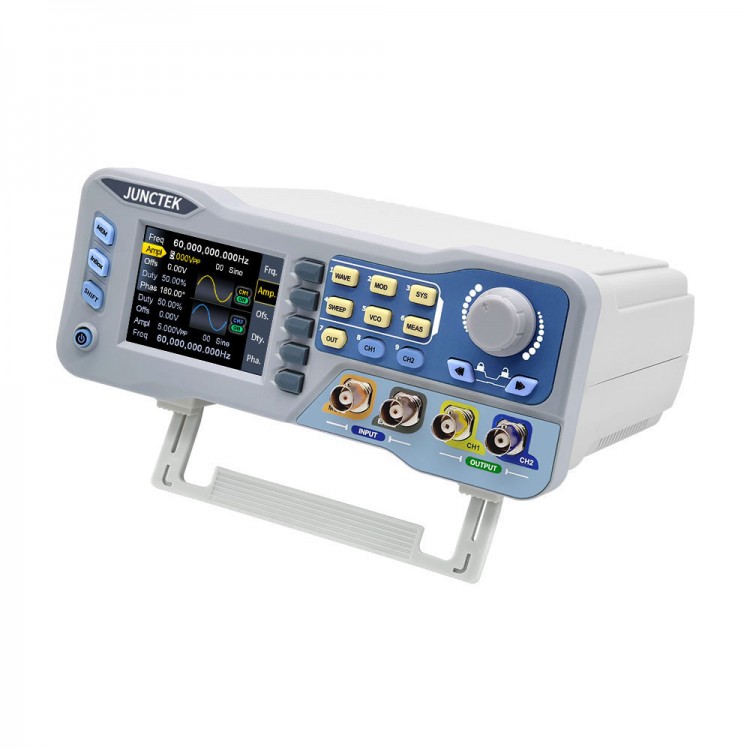

JUNCTEK JDS8080 80MHz Signal Generator 2CH 275MSa/S DDS Function Generator Frequency Meter Counter
Description:

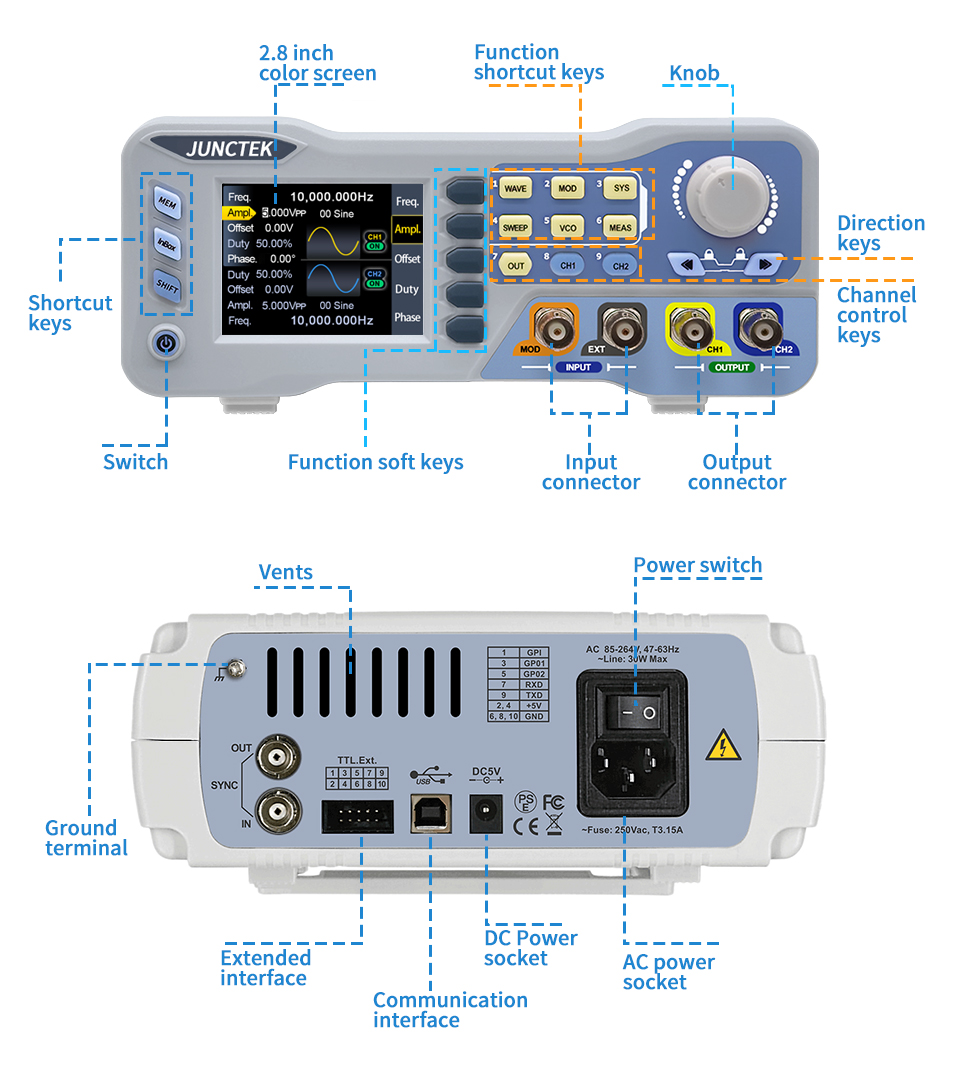

JDS8000 series dual-channel function / arbitrary waveform signal generator adopts a 2.8-inch color screen and comfortable silicone keys. It can output sine wave, square wave, triangular wave, pulse wave, DC signal and arbitrary waveform. It has the functions of waveform modulation, burst, digital adjustment of pulse width, scanning frequency, scanning amplitude, scanning duty cycle, VCO voltage controlled scanning, etc. Equipped with a frequency meter and counter, it is suitable for DIY, scientific research, teaching Product development, debugging and other scenarios.
Features:

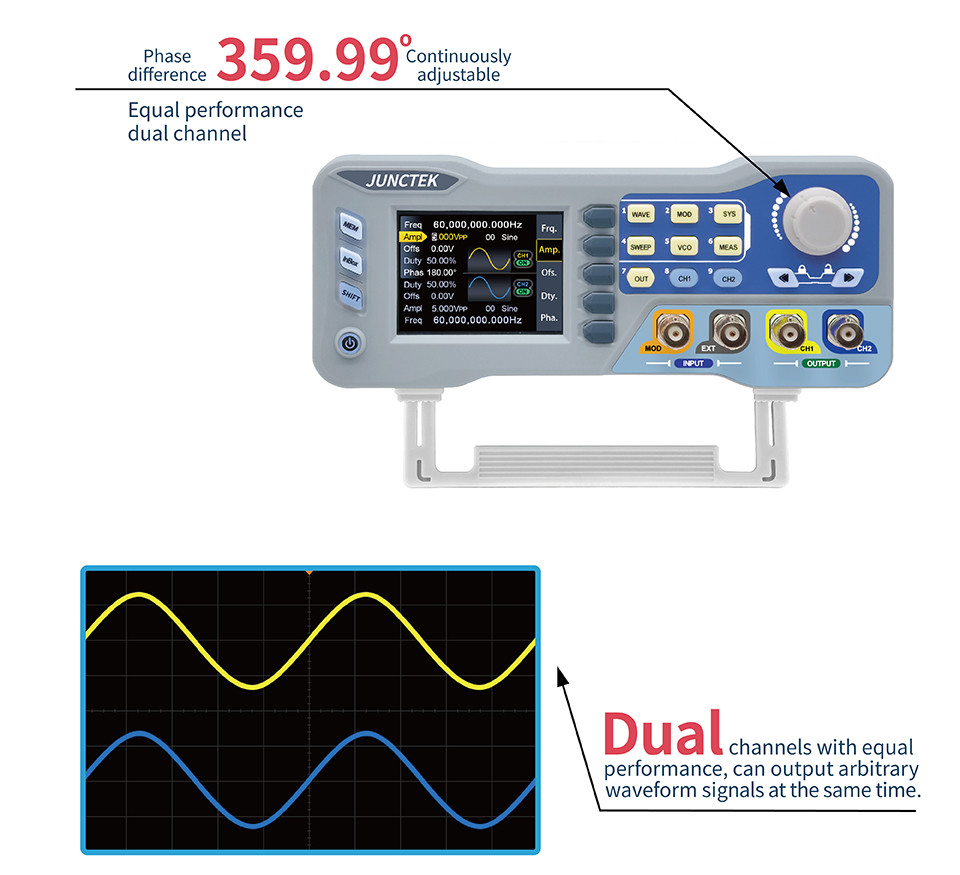

- The performance of the two channels is exactly the same, and the same or different waveforms can be output at the same time, With the phase difference of 0-359.99° freely adjustable;

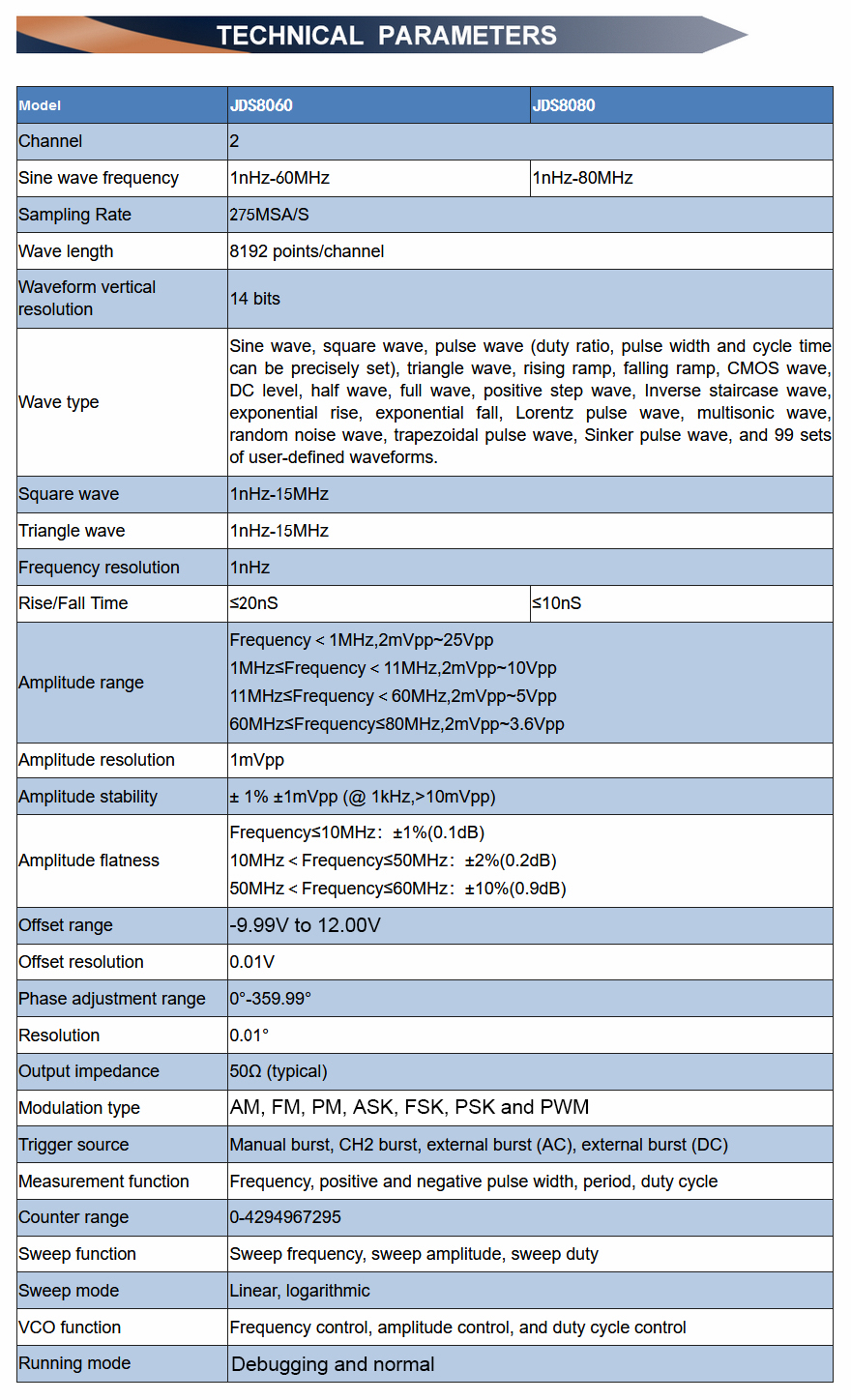

- Sine wave output frequency range: 1nHz-60MHz (JDS8060) or 1nHz-80MHz (JDS8080), Output amplitude: 1mVpp-25Vpp;

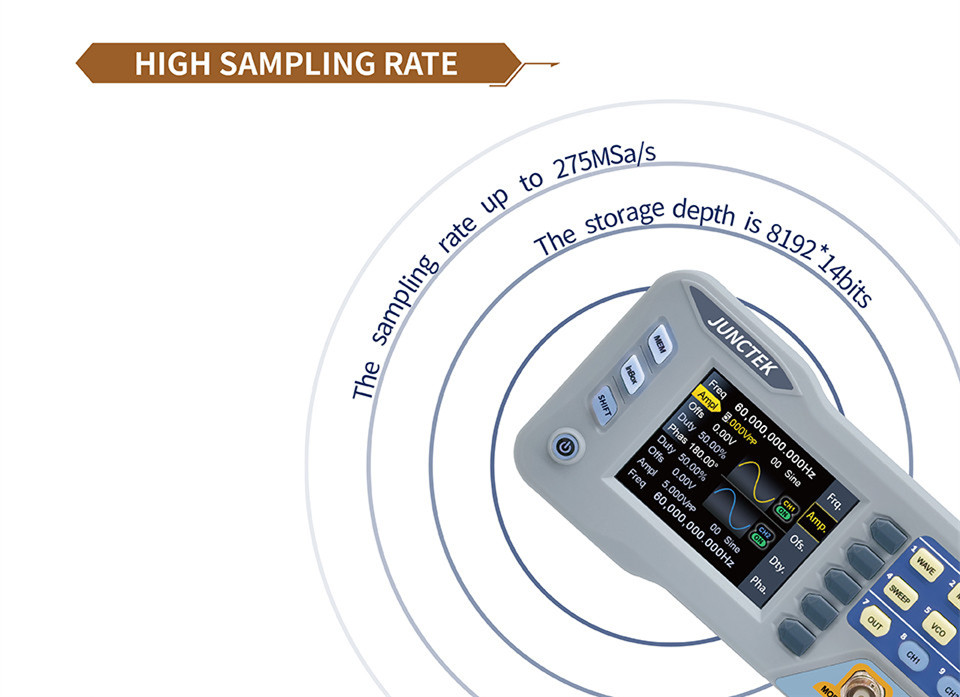

- The sampling rate is up to 275MSa/s, The vertical resolution is 14bits*8192 points, and more waveform data can be obtained per unit time, Thus making the waveform more accurate;

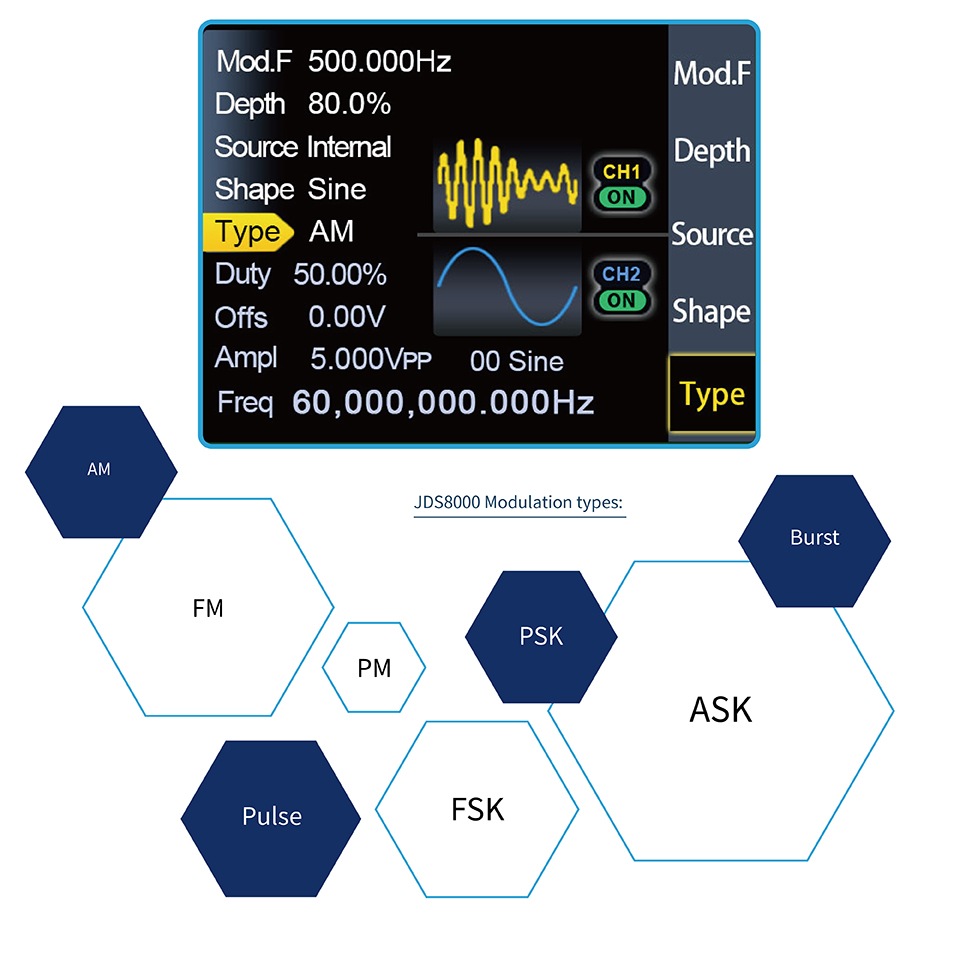

- Modulation function: Both channels can output modulation waveform signals such as AM FM PM ASK FSK PSK;

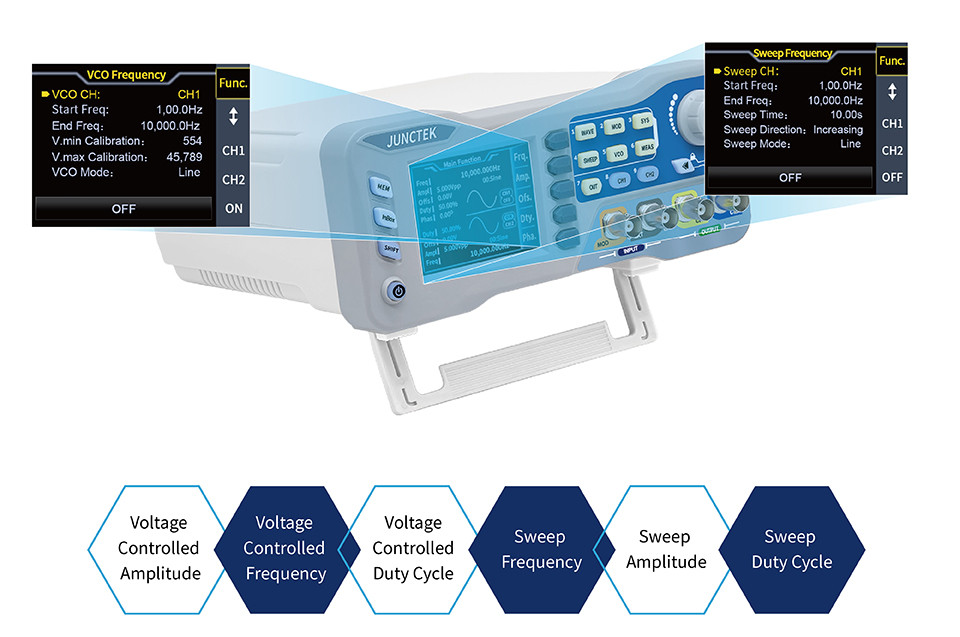

- Scanning function: Scanning frequency, scanning amplitude and scanning duty cycle, With linear and logarithmic scanning modes；
- VCO voltage control scanning; Controlling the frequency, amplitude and duty cycle of the output waveform through the change of the external voltage signal;

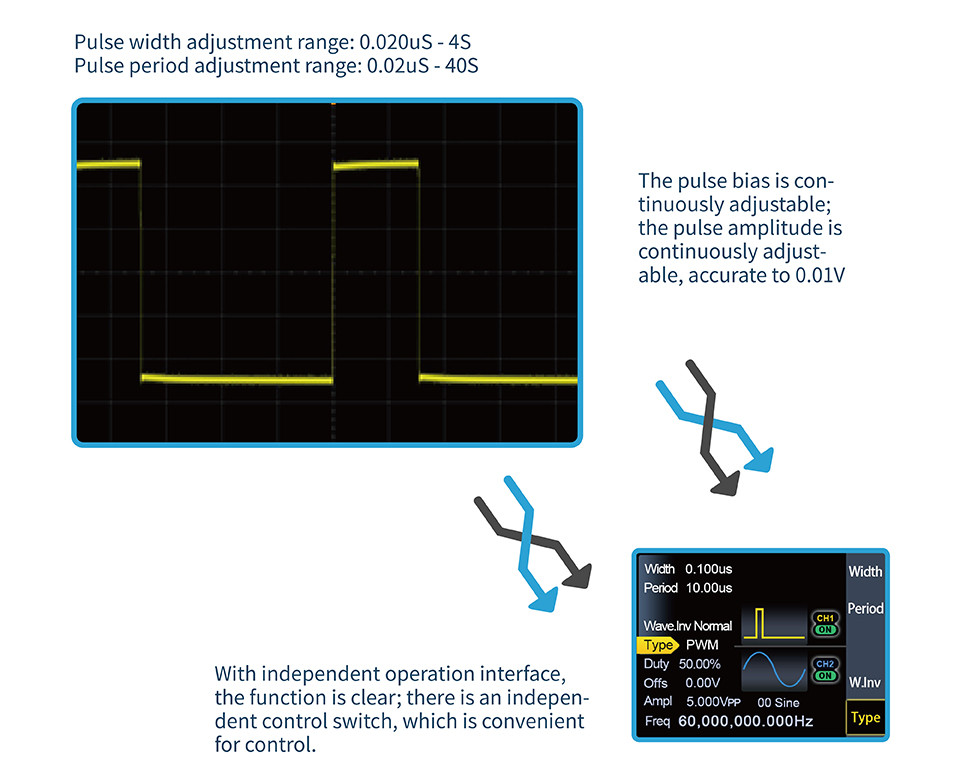

- Pulse width modulation function: Digital adjustment of pulse width and pulse cycle time;

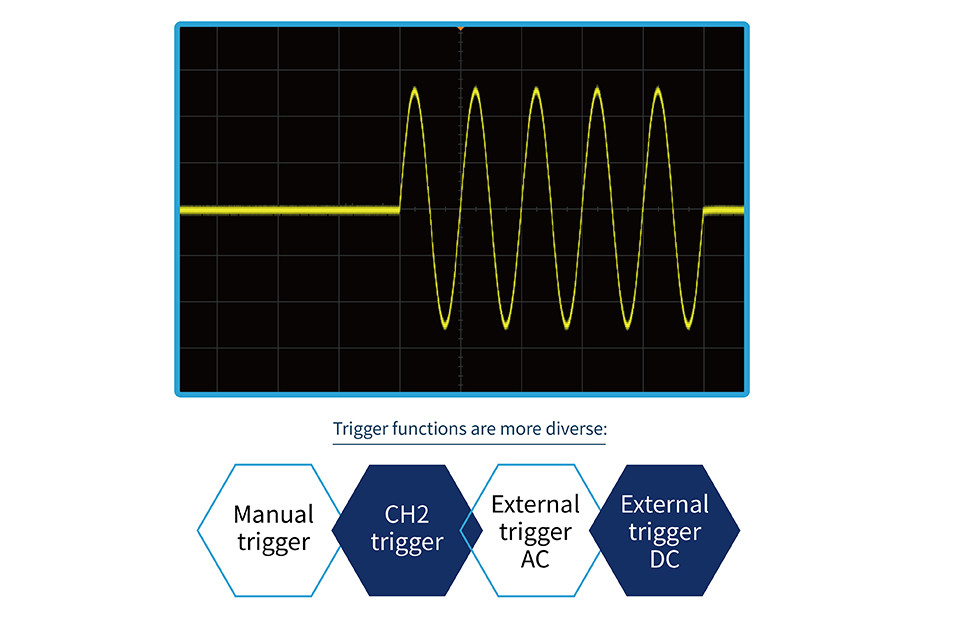

- Burst function: It can be set to output waveform signals of 1-1048575 arbitrary cycles;

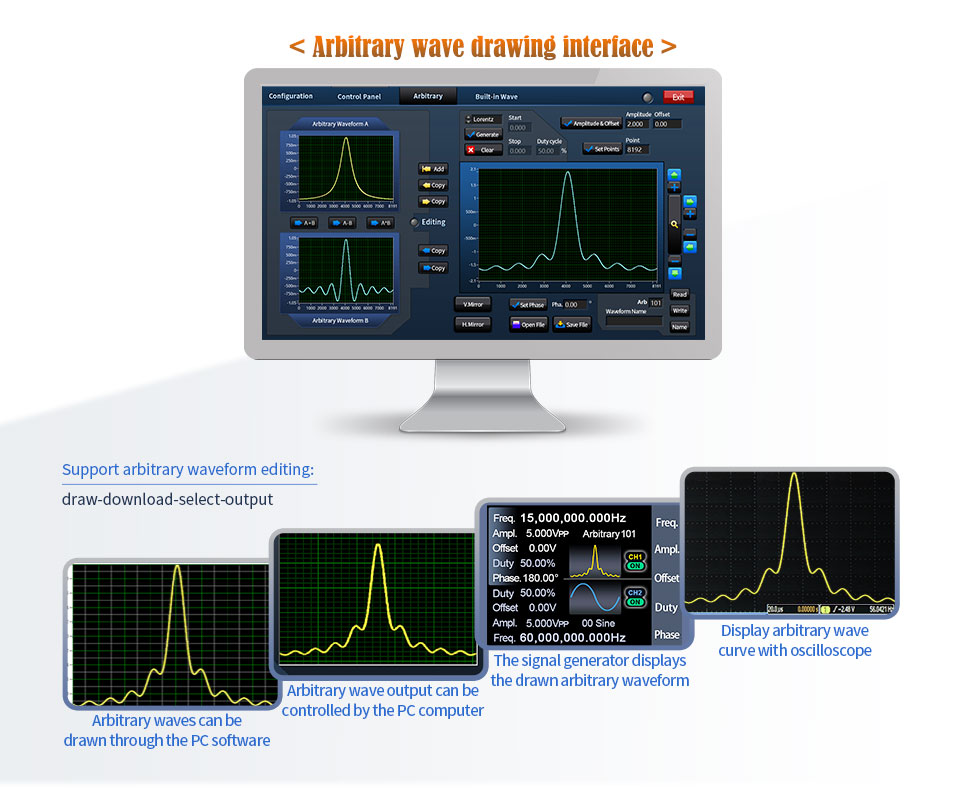

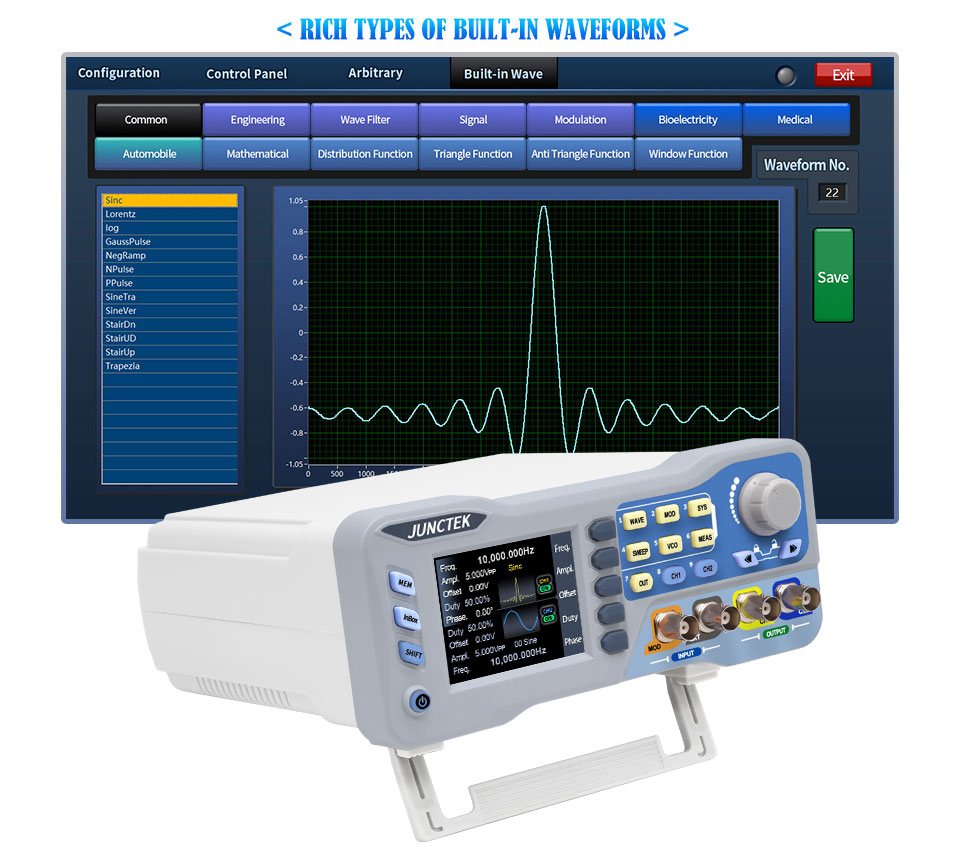

- Arbitrary wave function: More than 160 commonly used arbitrary waveforms are built in the upper computer software, and arbitrary waveforms can be customized and downloaded to the signal generator with one click;

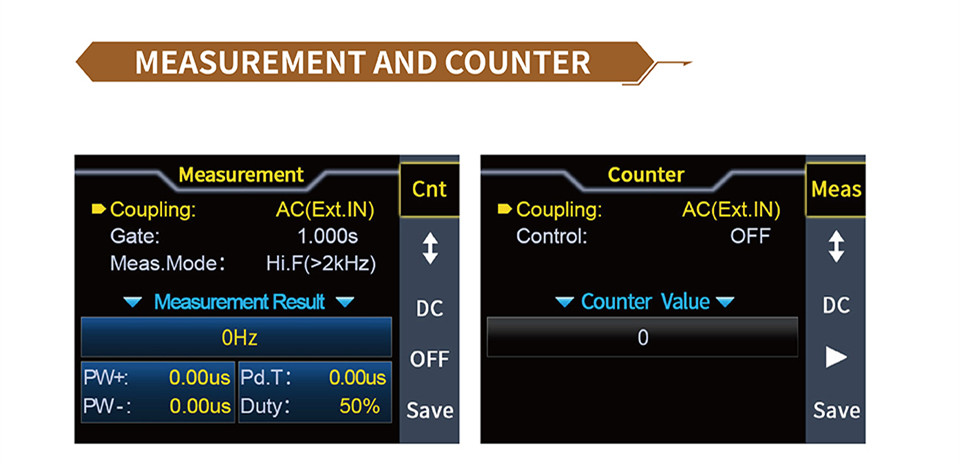

- Measurement function: Equipped with 1hz-100mhz frequency meter and counter, with AC coupling and DC coupling modes;
- Firmware update function; New firmware can be obtained through firmware upgrade software to continuously improve product performance;

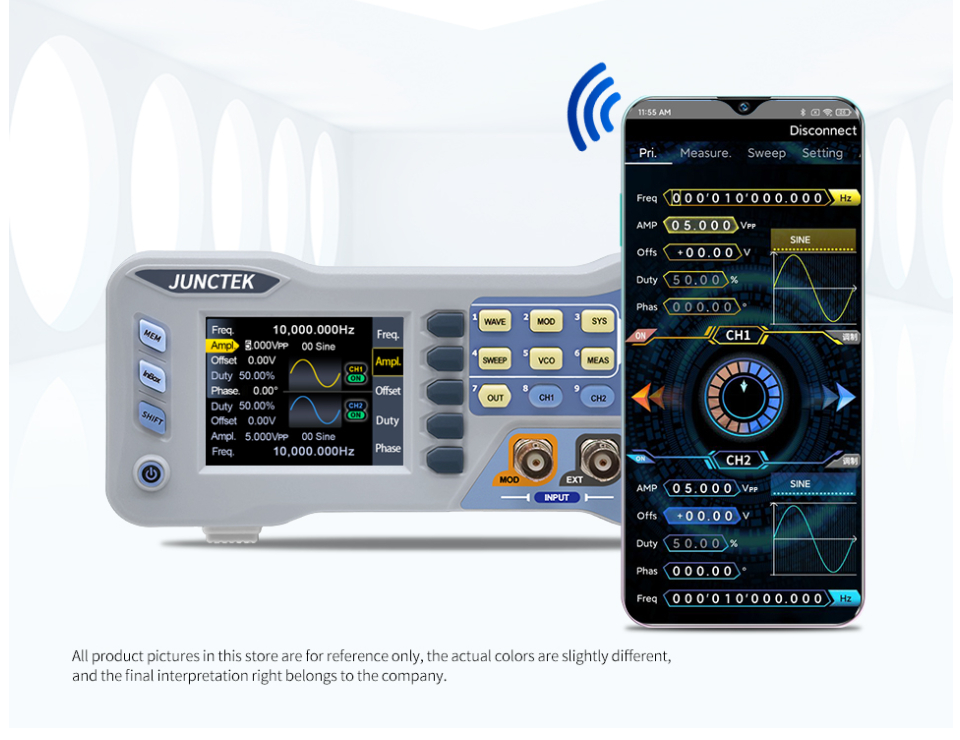

- Mobile APP: Built-in Bluetooth chip, It can control and draw any waveform through mobile app;

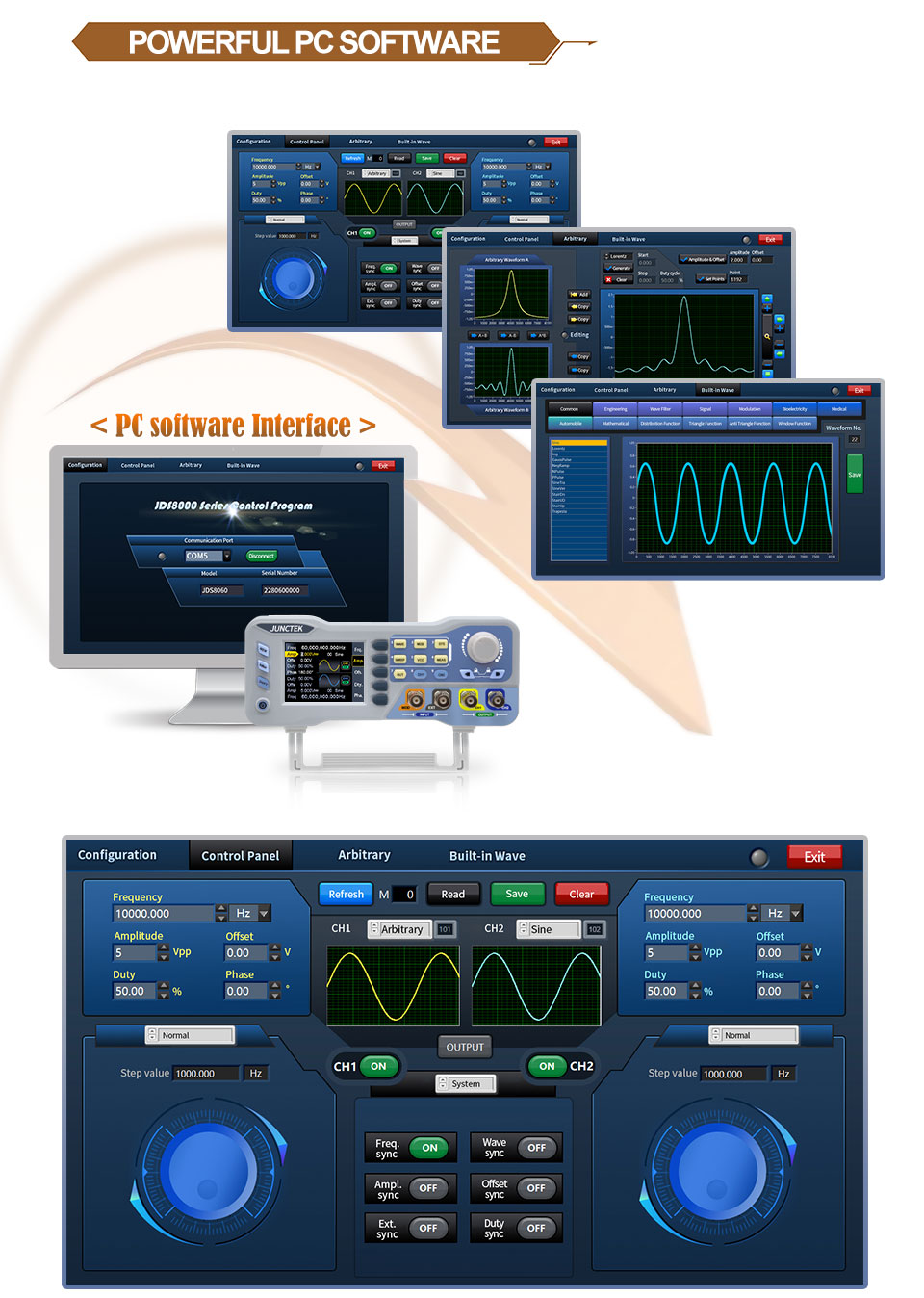

- Secondary development function: provide free communication protocol and computer software to facilitate programming control;
- Multi level synchronization function:Two or more machines can output multi-channel waveform signals after being connected.
Package Included:
- 1 x Signal Generator
- 1 x Power Cable
- 1 x Q9-Q9 Straight Through Cable
- 1 x USB Data Cable
- 2 x Q9 Alligator Clip Cables
- 1 x Quick Guide
