JUNTEK DPM8616 60V 16A Programmable Power Supply DC Power Supply (TTL Communication)

JUNTEK DPM8616 60V 16A Programmable Power Supply DC Power Supply (TTL Communication)

Description:
DPM8600 series programmable DC power supply can digitally display the output voltage, current, temperature and other parameters. They have two different output status of constant voltage and constant current. They are especially suitable for use in factory equipment power supply, product aging and debugging, solar charging, LED lamp bead driving and battery charging and discharging.

Features:
- Based on the switching power supply technology of BUCK structure
- Can automatically stop output when over-temperature
- Automatically save parameters when power is off
- With quick discharge function, the voltage response speed is adjusted very fast
- Communication protocol is divided into a simple communication protocol and a MODBUS-RTU communication protocol
- Provide PC software and communication protocol to support secondary programming control

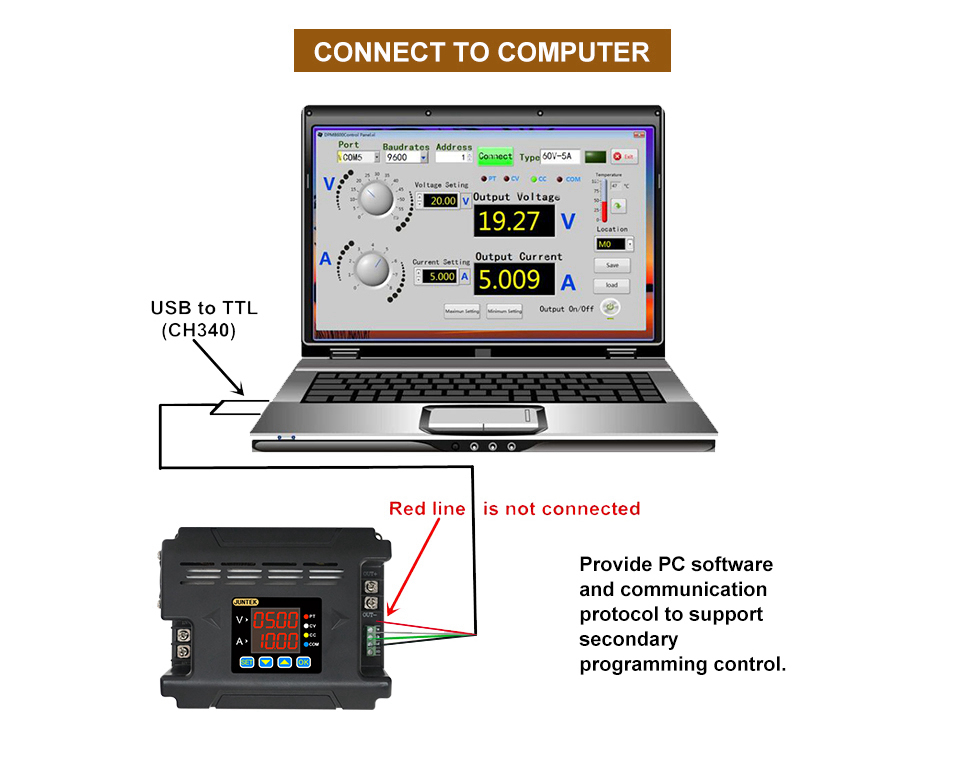

- Standard "USB to TTL" supports TTL serial communication, it is convenient for everyone to use our PC software to control the power supply

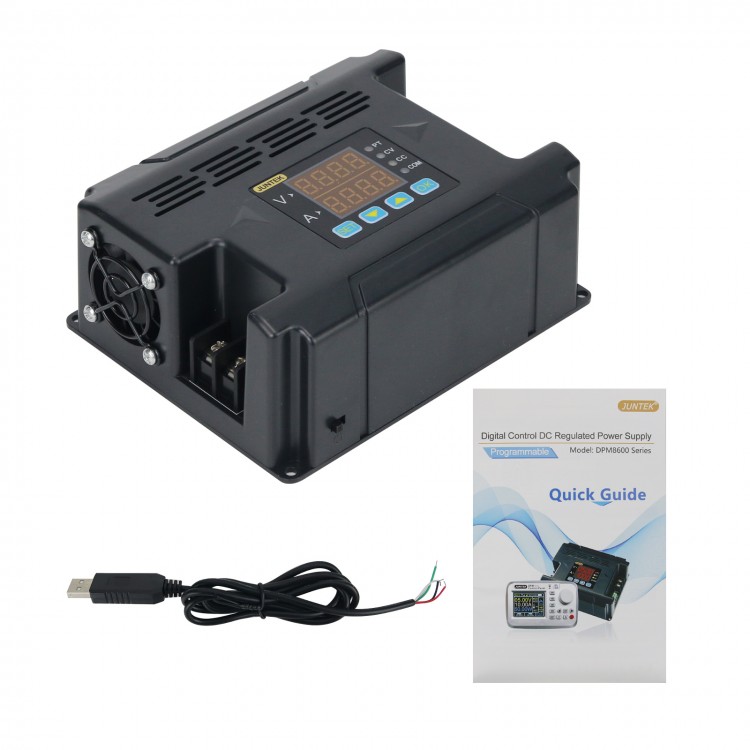

Package Included:
- 1 x Programmable Power Supply
- 1 x USB to TTL Communication Cable

Note:
- Battery is not included.

Dimensions:

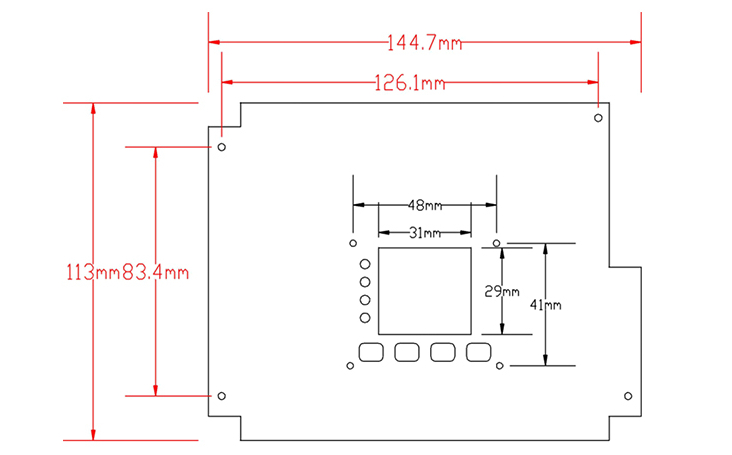

The red line indicates the installation dimension of the internal motherboard
The black line marks the installation dimension of the internal display panel

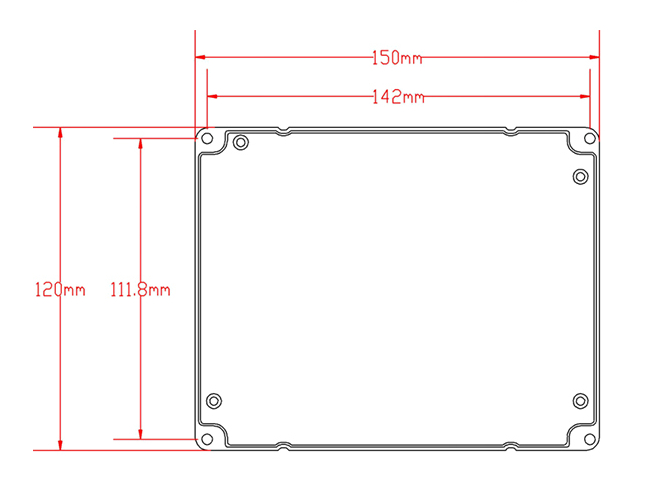

Outer casing installation size


Download Materials:
- English manual: http://68.168.132.244/DPM8600_EN_manual.pdf
- Communication protocol and software: http://68.168.132.244/DPM8600_Setup.zip
