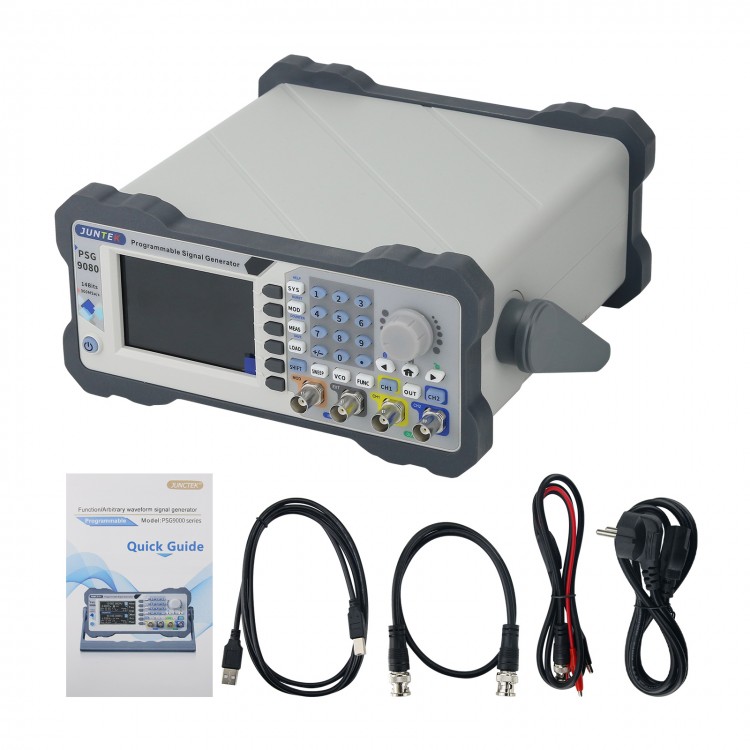

JUNTEK PSG9080 Programmable Arbitrary Generator 1nHz-80MHz Function Generator Pulse Generator

JUNTEK PSG9080 Programmable Arbitrary Generator 1nHz-80MHz Function Generator Pulse Generator

Description:
PSG9080 is a programmable function/arbitrary wave signal generator. It can output sine wave, square wave, triangle wave, pulse wave, and arbitrary wave, etc. The frequency range of the instrument is up to 80MHz, with Waveform modulation, frequency sweep, VCO, measurement signal frequency and programming functions, etc. It can simultaneously display output signals, amplitude, phase, duty cycle and frequency. Provide new options for education, research and development, production, testing and other industries.

The instrument is exquisite in appearance and equipped with a 3.5-inch high-resolution color LCD screen to bring a new visual experience.

Seven Functions:
- Function generator
- Arbitrary waveform generator
- Pulse generator
- Noise generator
- Frequency meter
- Counter
- Frequency scanner

Features:
- Programmable output: The type of waveform output (such as sine wave, square wave, triangle wave, arbitrary wave, etc.), output time, and output sequence can be freely formulated to realize automatic work.
- Firmware update in real time: Firmware upgrade can be updated at any time to fix bugs, or used for your special customization needs. Press the corresponding soft key to confirm entering the update mode, and perform a one-key firmware upgrade by connecting with the PC software.
- Voltage-controlled adjustment: The frequency, amplitude and duty cycle of the output can be controlled by an external analog voltage signal to achieve voltage-controlled sweeping frequency, sweeping amplitude and sweeping duty cycle, which are widely used in industrial debugging.
- Modulation function: The modulated waveforms can be output in single channel or dual channel. Modulation: The process of adding information from a signal source to the carrier to make it suitable for channel transmission. It is the technology that makes the carrier wave change with the signal.
- High sampling rate: The sampling rate of up to 300MSa/s can obtain more waveform data per unit time, thus making the displayed waveform more accurate.
- Personal color: In order to meet the personalized needs of customers, four color schemes for the system are provided. You can use the numeric keys and knob to select the desired system color, press the soft key save to save the selected color.
- Equivalent performance dual channel output: The same or different function signals or arbitrary waveform signals can be output simultaneously; all parameters can be adjusted independently, the phase difference between the two channels is continuously adjustable from 0 to 359.9 degrees; the signal frequency can be up to 80MHz, and the output signal can be within 1MHz up to 25Vpp.
- Burst function: Sine wave, square wave, saw tooth wave, or arbitrary wave can be used to generate burst signals, the number of periods is continuously adjustable between 1-1000000000.
- The pulse width can be adjusted accurately: The pulse width and the pulse period time of the pulse wave are digitally and accurately adjustable, enabling a wide range of pulse waveforms to be accurately set without jitter output.
- Can draw arbitrary waveform: PC software and communication protocol are provided for free, arbitrary waveforms can be drawn using the PC software; using the communication protocol can be secondary development programming; all functions of the instrument can be controlled by the PC software (The instrument can be also finished all operations without connecting to the computer.)

Technical Parameters:
- Model: PSG9080
- Channel: 2
- Maximum frequency of sine wave: 80MHz
- Sampling Rate: 300MSa/S

Waveform Characteristics:
- Wave length: 8192 points/channel
- Waveform vertical resolution: 14 bits
- Waveform type: Sine wave, square wave, pulse wave (duty cycle, pulse width and cycle time can be accurately set), triangle wave, rising saw-tooth wave, falling saw-tooth wave, CMOS wave, DC level, half wave, full wave, positive step wave, inverse step wave, exponential rise, exponential fall, Lorentz pulse wave, muti-sound wave, random noise wave, trapezoidal pulse wave, sink pulse wave, amplitude modulation waveform, frequency modulation waveform and 99 groups of user-defined wave-forms.

Frequency Characteristics:
- Sine wave frequency range: 1nHz-80MHz
- Square wave frequency range: 1nHz-30MHz
- Triangle wave frequency range: 1nHz-50MHz
- Pulse wave frequency range: 1nHz-30MHz
- TTL digital wave frequency range: 1nHz-20MHz
- Arbitrary wave frequency range: 1nHz-50MHz
- Pulse width adjustment range: 5nS~4S
- Pulse period adjustment range: 10nS~40S
- Frequency minimum resolution: 1nHz
- Frequency accuracy: ±5ppm 0 to 50℃
- Frequency stability: ±3ppm per 1 year

Sine Wave Spectral Purity:
- Total harmonic distortion: ≤0.5% (at 1kHz, 5Vpp)

Signal Characteristics:
Square Wave:
- Rising/falling edge time: ≤10nS
- Overshoot: ≤10%
- Asymmetry: ≤0.1%

Ramp and Triangle Wave:
- Linearity: ≤1% (less than 1MHz)
- Asymmetry: ≤1% (less than 1MHz)

Pulse Wave:
- Pulse Width: 5nS~4S
- Pulse period: 10nS~40S
- Duty cycle: 0.01%-99.99%
- Rising/falling edge: ≤10nS
- Overshoot: ≤10%

Arbitrary Wave:
- Wave length: 8192 points (8K points)
- Vertical resolution: 14 bits
- Minimum rise/fall time: ≤10nS
- Overshoot: ≤10%
- Arbitrary waveform non-volatile storage number: 99

Output Characteristics:
Amplitude:
- Amplitude range:
  Frequency≤1MHz, 2mVpp~25Vpp;
 1MHz≤Frequency<11MHz, 2mVpp~10Vpp;
 11MHz≤Frequency<60MHz, 2mVpp~5Vpp;
  60MHz≤Frequency<80MHz, 2mVpp~3.6Vpp.
- Amplitude resolution: 1mVpp
- Amplitude stability: ± 1% ±1 mVpp (at 1 kHz, >10 mVpp)
- Amplitude flatness:
  ±1% (0.1dB)<10MHz;
  ±2% (0.2dB)<10MHz~50MHz;
  ±10% (0.9dB)<50MHz~70MHz;
  ±20% (1.9dB)<70MHz~80MHz.

DC Bias:
- Offset adjustment range: -9.99V to 15.00V
- Offset resolution: 0.01V

Phase Characteristics:
- Phase adjustment range: 0° to 359.9°
- Phase resolution: 0.1°

Waveform Output:
- Output impedance: 50Ω (typical)
- Protection: Short circuit protection

Modulation Characteristics:
- Modulation type: AM, FM, PM, ASK, FSK, PSK, PWM

AM:
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/external
- Modulated wave: Sine wave, square wave, saw-tooth wave, noise wave, arbitrary wave
- Modulation depth: 0% to 200%
- Modulation frequency: 1mHz to 1MHz

FM:
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Modulated wave: Sine wave, square wave, saw-tooth wave, noise wave, arbitrary wave
- Modulation frequency: 1mHz to 1MHz
- Frequency deviation: 0.1Hz to carrier frequency

PM:
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Modulated wave: Sine wave, square wave, saw-tooth wave, noise wave, arbitrary wave
- Phase deviation: 0° to 360°
- Modulation frequency: 1mHz to 1MHz

ASK:
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Polarity: Positive and negative
- Rate: 1mHz to 1MHz
- ASK amplitude: 0% to 200%

FSK:
- Carrier wave: Sine wave, square wave, saw tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Modulated wave: 50% duty cycle pulse wave
- Polarity: Positive and negative
- Rate: 1mHz to 1MHz
- Frequency hopping: 0.1Hz to 80MHz

PSK:
- Carrier wave: Sine wave, square wave, saw tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Polarity: Positive and negative
- Rate: 1mHz to 1MHz
- PSK phase: 0° to 360°

PWM:
- Carrier wave: Pulse wave
- Wave inversion: Regular and reverse
- Pulse period: 0.01uS to 40S
- Pulse Width: 0.001uS to 4S

Burst:
- Idle: Zero position, positive maximum, negative maximum
- Mode: Single, automatic
- Trigger source: Manual burst, CH2 burst, external burst (AC), external burst (DC)
- Pulse number: 1-1000000000

Measurement and Counting Function:
Measurement Mode:
- Measurement function: Frequency, positive and negative pulse width, period, duty cycle
- Coupling method: DC, AC
- Gate time: 0.001S-10.000S
- Measurement mode: Low frequency, high frequency
- Frequency measurement range: 1Hz~100MHz
- Input signal amplitude range: 2Vpp~20Vpp
- Period measurement: 10nS~4S
- Pulse Width: 4S
- Duty cycle measurement range: 0.01%~99.99%

Counter mode:
- Counter range: 0-4294967295
- Coupling method: DC and AC coupling
- Counting method: Manual

External Modulation Input Characteristics:
- Input signal amplitude range: 0~3Vpp
- Input signal frequency range: DC~200kHz

Scanning Characteristics:
- Sweep channel: CH1 or CH2
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Sweep function: Sweep frequency, sweep amplitude, sweep duty
- Sweep mode: Linear, logarithmic
- Sweep direction: Increment, decrement, round trip
- Start/end frequency: Consistent with the upper and lower limits of the corresponding carrier frequency
- Start/end amplitude: Consistent with the upper and lower limits of the corresponding carrier amplitude
- Start/end duty cycle: Consistent with the upper and lower limits of the corresponding carrier duty cycle
- Sweep time: 0.01S-640S

Voltage Control Characteristics:
- Voltage control channel: CH1 or CH2
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Voltage-control function: Frequency control, amplitude control, and duty cycle control
- Sweep mode: Linear, logarithmic
- Start/end frequency: Consistent with the upper and lower limits of the corresponding carrier frequency
- Start/end amplitude: Consistent with the upper and lower limits of the corresponding carrier amplitude
- Start/end duty cycle: Consistent with the upper and lower limits of the corresponding carrier duty cycle
- Voltage-control voltage range: 0V-5V, starting point and end point can be set arbitrarily

Programming Features:
- Running mode: Debugging, normal
- Storage: P00-P19 (20pcs)
- Programming number: 00-99
- Programming time: Single serial number programming time 0-99S

General Specifications:
Display:
- Screen: 3.5 inch TFT color LCD display
- Resolution: 320*480
- Color: 64K true color

Store and Load:
- Quantity: 100 groups
- Location: 00 to 99 (The data of 00 storage location is loaded by default)

Interface:
- Interface method: USB to serial interface
- Extension interface: Serial port with TTL level mode, convenient for secondary development
- Communication rate: Standard 115200bps
- Protocol: Using the command line, the protocol is open

Power Supply:
- AC power: Supply voltage: 85V-264V, 47-63Hz
- Power consumption: Less than 30W
- Fuse: 250VAC,T3. 15A
- DC power: Supply voltage/current: DC5V±0.5V 3A

Environment:
- Temperature : 0~40℃
- Humidity: Humidity<80%

Machine Size:
- Size: 247 x 243 x 402 mm (LxWxH)
- N.W.: 950g
