JUWEI-17 Harmonic Equatorial Mount (Silver with Narrow Dovetail Groove) + Wired Hand Controller

JUWEI-17 Harmonic Equatorial Mount (Silver with Narrow Dovetail Groove) + Wired Hand Controller

JUWEI-17 Harmonic Equatorial Mount:
Features:
- Excellent load capacity: 13kg without counterweight; more stable for guiding
- Versatile: It can work in equatorial mount and theodolite modes
- Handle + APP control: Wi-Fi control for real-time star map
- Precise control: harmonic reducer + synchronous belt
- Lightweight design: its body structure without counterweight
- Equipped with OnStep system, it supports computer/mobile phone/ZWO smart Wifi controller/NINA/WiFi/Bluetooth/handle control, etc.

Performance Parameters:
- Item name: JUWEI-17 Harmonic Equatorial Mount
- Equatorial mount mode: Equatorial mount/theodolite
- OnStep system: Supports computer/mobile phone/ZWO smart Wifi controller/NINA/WiFi/Bluetooth/handle control, etc.
- Net weight of equatorial mount: 5.15kg
- Load without counterweight: 13kg
- Transmission mode: harmonic + reduction wheel
- Reducer: Double 17 harmonic reducer
- Reduction ratio: 400:1
- Motor: 42 stepper motor
- Chassis specifications: GEM4
- Chassis diameter: 125mm
- Center column: 12mm
- Latitude adjustment range: 10-90 degrees
- Azimuth adjustment range: 20°
- Counterweight shaft interface thread: Diameter M12
- Counterweight diameter: 20mm
- Counterweight length: 230mm
- Power supply voltage: DC12V
- Data interface: USB2.0/WiFi
- Guiding interface: handle and ST4
- Automatic zeroing: mechanical automatic zeroing

Hand Controller:
- Easy to operate
- GOTO autoguiding
- Automatic and accurate tracking
- Your ideal choice for telescope equatorial mounts
- Can be used with JUWEI-17 harmonic equatorial mounts

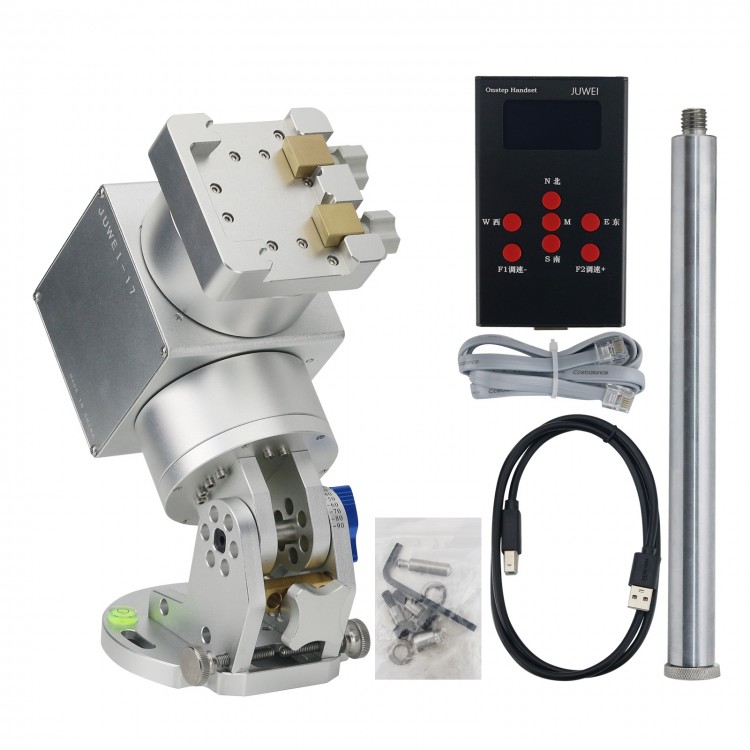

Package Included:
- 1 x Harmonic equatorial mount
- 1 x Data cable
- 1 x Counterweight shaft
- 2 x Compression screws
- 2 x Nylon gaskets
- 2 x Stainless steel gaskets
- 1 x Horizontal adjustment column
- 1 x Allen wrench
- 1 x Wired hand controller
- 1 x Network cable

Packaging Details:
- Weight: 7kg

Note:
- The colors of the hand controller are black, red and blue. And the controller of different colors will be delivered at random. Thank you for your understanding!
