JUWEI-17 Silvery Harmonic Equatorial Mount with Narrow Dovetail Groove for Astronomical Telescope Compatible with Theodolite Mode

JUWEI-17 Silvery Harmonic Equatorial Mount with Narrow Dovetail Groove for Astronomical Telescope Compatible with Theodolite Mode

Features:
- Super load: 13kg without weight hammer/18kg with weight hammer (not included)
- Multi functional: equatorial and theodolite
- Handle + APP control: WiFi control, real-time star map
- Precision control: harmonic reducer + synchronous belt
- Lightweight design: no heavy hammer, body structure
- Equipped with an onstep system, supporting computer /phone /for ZWO box /for nina /WiFi /Bluetooth /Handle control, etc.

Specification:
- Product name: JUWEI-17 harmonic equatorial mount
- Mode: equatorial mount/theodolite
- Matched onstep system: support computer /phone /for ZWO box /for nina /WiFi /Bluetooth /Handle control, etc.
- Equatorial mount net weight: 5.15kg
- Without hammer load: 13kg
- Transmission mode: harmonic + reduction wheel
- Reducer: Double 17 harmonic reducer
- Reduction ratio: 400:1
- Motor: 42 stepper motor
- Chassis specifications: gem4
- Chassis diameter: 125mm
- Central column: 12mm
- Latitude adjustment range: 10 - 90 degrees
- Direction adjustment range: 20°
- Heavy hammer rod interface thread: M12 (diameter)
- Hammer rod diameter: 20mm (diameter)
- Heavy hammer rod length: 230mm
- Power supply voltage: DC12V
- Data interface: USB2.0/WiFi
- Guide star interface: handle and ST4
- Automatic zero position: mechanical automatic zero position

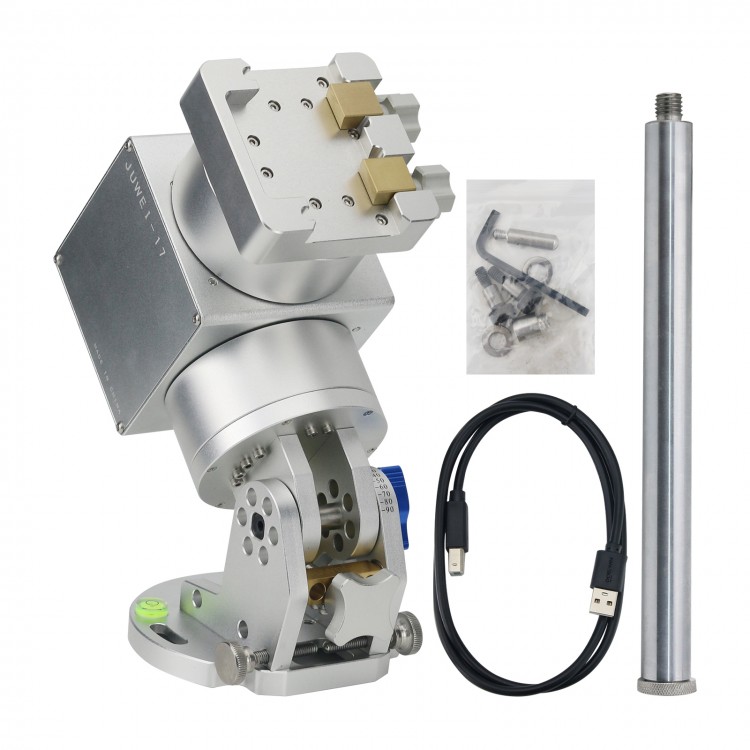

Package Included:
- 1 x Equatorial Mount
- 1 x Data Cable
- 1 x Heavy Hammer Rod
- 2 x Horizontal Azimuth Fine Adjust Screws
- 2 x Nylon Filler Piece
- 2 x Stainless Steel Filler Piece
- 1 x Horizontal Adjustment Column
- 1 x Allen Wrench

Note:
- The tripod displayed in the picture is not included.
