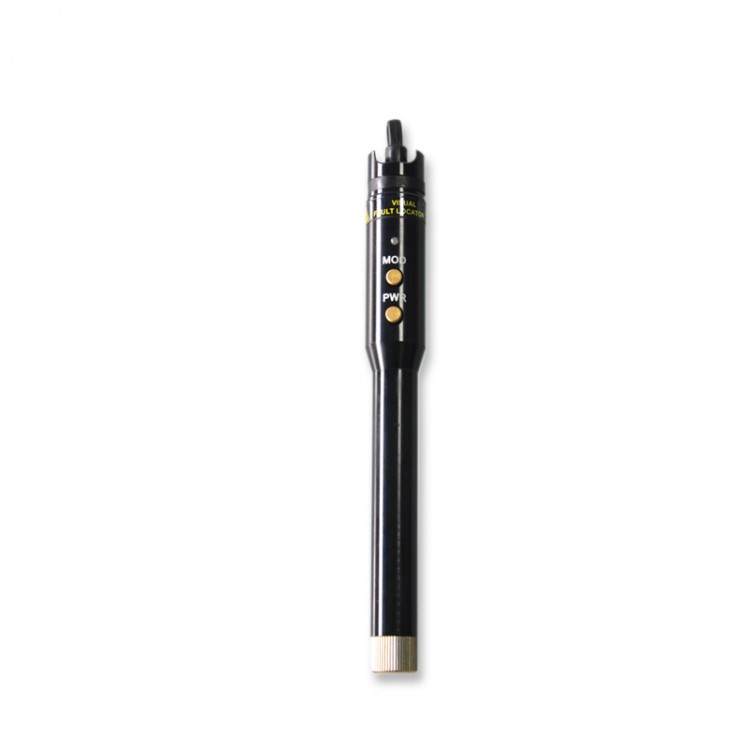

JW3105P 650NM 10MW Visual Fault Locator Pen Red Light Source Fiber Optic Light Source For SM MM Fibers
Description:
JW3105P uses a 650nm semiconductor laser, which can inject visible red light into optical fibers. By observing the light leakage position on a tested optical fiber, the position of optical fiber failure point can be easily and accurately determined. This product is widely used in the detection of bare fibers, jumpers, and other faults that can leak red light. It can work with OTDR to make up for the shortcomings of OTDR near-end blind zone. In addition, it can be used as a core wire comparison in multi-core cables and ribbon fiber tests.
Features:
1. Constant power output
2. Anti-drop design of laser head
3. ±8KV ESD protection level
4. CE certification
5. Extra small and lightweight
Specifications:
- Light source type: FP-LD
- Wavelength: 650 ±10nm
- Output power: 10mW
- Modulation method: CW/2
- Fiber type: SM and MM
Package Included:
- 1 x Set of Visual Fault Locator
Note:
- 2pcs AA alkaline batteries are not included in the package.
