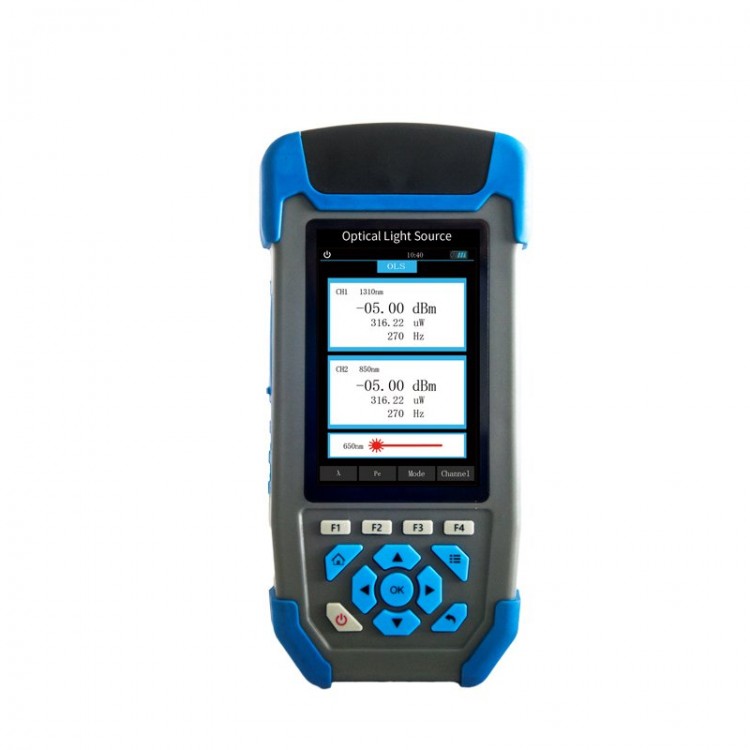

JW3120 Optical Light Source 1310NM 1550NM Fiber Optic Light Source Adjustable Power 3.5" Color Screen

JW3120 Optical Light Source 1310NM 1550NM Fiber Optic Light Source Adjustable Power 3.5" Color Screen

Description:
JW3120 is an optical light source with adjustable output power and a 3.5-inch color screen. It can provide up to 6 wavelengths of light. It has a continuous 15dB adjustable power range and can choose single and double channels. It can automatically identify the wavelength when it is used with our power meter, and it can easily and accurately measure the loss of optical fiber link.

Features:
- 3.5" color display
- Maximum 6-wavelength output
- Support for user self-calibration
- Single-channel or dual-channel output is supported
- The output power is continuously adjustable
- Support continuous light CW and modulation light output
- Support Visual Fault Locator (optional)

Applications:
- Engineering maintenance of optical fiber network
- Engineering maintenance of digital data network
- Teaching and research of optical communication
- Other optical fiber works

Specifications:
- Model: JW3120
- Wavelength: 1310/1550nm（customizable)
- Spectral width: ≤5nm (customizable)
- Typical output: -5dBm
- Stability: ≤0.05dB, 15min
- Output power adjustable range: -5 to -20dB
- Min step adjustable power: 0.05dB
- Modulation frequency: CW, 270HZ, 330HZ, 1KHZ and 2KHZ
- Interface type: (FC/SC)/PC (customizable)
- Display size: 3.5" TFT color screen

VFL (Optional):
- Wavelength: 650nm
- Output power: 1mW

Others:
- Power supply mode: 3.7V 4000mAh lithium battery/Micro USB
- Automatic-off (min): User-defined
- Communication interface: Micro USB
- Continuous working hours: ≥25H
- Operating temperature: -10 to 60℃
- Storage temperature: -25 to 70℃
- Size: 188 x 88 x 44mm/7.4 x 3.5 x 1.7"
- Weight: 370g/0.8 lb

Package Included:
- 1 x Set of Fiber Light Source
