Product Description:

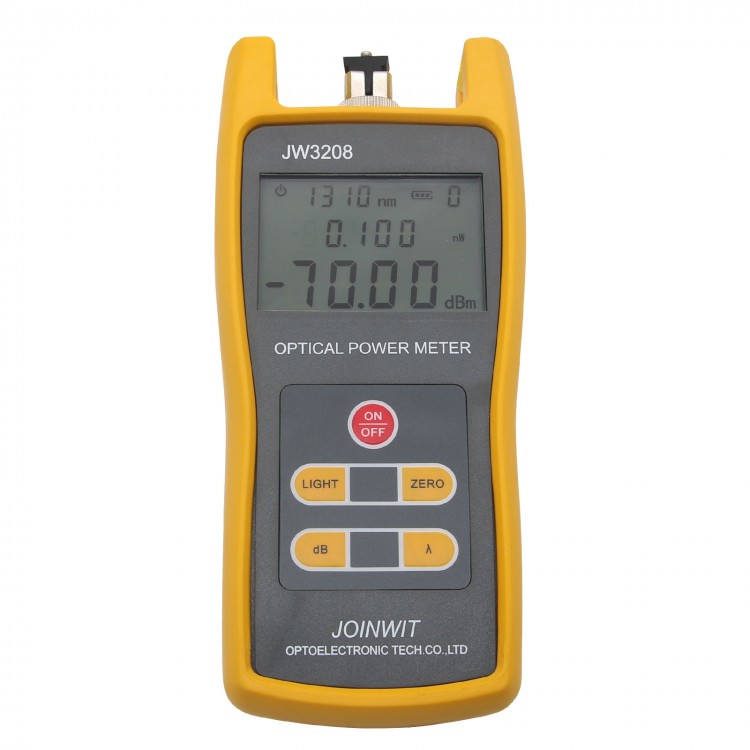

- JW3208 Handheld Optical Power Meter is handheld fiber Optic testing device.Wide power range,multi wavelength calibration,it can work with JW3109 light source and JW3303 optical attenuator.
- It aims at fiber network installation,fiber network engineering acceptance and fiber network maintenance
Features:
- User self calibration
- Linearity(mW) & Nonlinearity (dBm)display
- General interface:FC/SC/ST general interface
- Power:AA battery,can work 240 hours
- Auto switch ON/OFF,backlight switch function.
Specification:
- Model:JW3208A/C
- Wavelength range(nm):800~1700
- Calibrated (nm):850,980,1300,1310,1490,1550
- Detector type:InGaAs
- Detector area:Ф0.3mm
- Measurement Range (dBm):-70~+3(A type);-50~+26(C type)
- Uncertainty (dB):±0.22(5%)
- Linearity:0.03
- Display resolution(dB):0.01
- Operation Temperature (°C):-10~+60
- Storage Temperature (°C):-25~+70
- Auto switch off time:10 minutes
- Battery Operating time (h):240
- Outline size (mm)/weight:151x73x26(160g)
- Alkaline battery:3*AA,1.5V
Package List:
- 1 x JW3208A/C Optical Power Meter
- 1 x Soft Carrying Case
- 1 x User Manual
