Product Description:

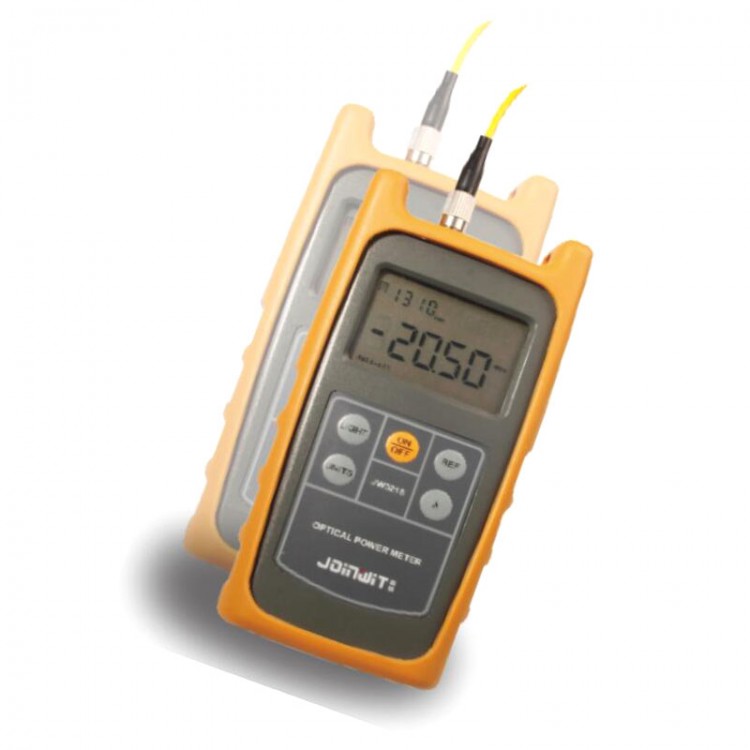

- JW3218 handheld Optical Power Meter can work with JW3118 light source.The latest integrated circuit design,simple & easy interface.
- It aims at fiber network installation,fiber network engineering acceptance and fiber network maintenance
- Auto switch off:10 minutes
- FC/SC/ST general interface
Specification:
- Model:JW3218A/C
- Wavelength range(nm):800~1700
- Calibrated (nm):850,1300,1310,1490,1550,1625
- Detector type:InGaAs
- Detector area:Ф0.3mm
- Measurement Range (dBm):-70~+6(A type);-50~+26(C type)
- Uncertainty (dB):±0.22
- Linearity:0.03
- Display resolution(dB):0.01
- Operation Temperature (°C):-10~+60
- Storage Temperature (°C):-25~+70
- Auto switch off time:10 minutes
- Alkaline battery:3*AA,1.5V
- Battery Operating time (h):260
- Outline size (mm)/weight:164x78x35(260g)
Package List:
- 1 x JW3218A/C Optical Power Meter
- 1 x Cotton Stick
- 1 x Soft Carrying Case
- 1 x User Manual
