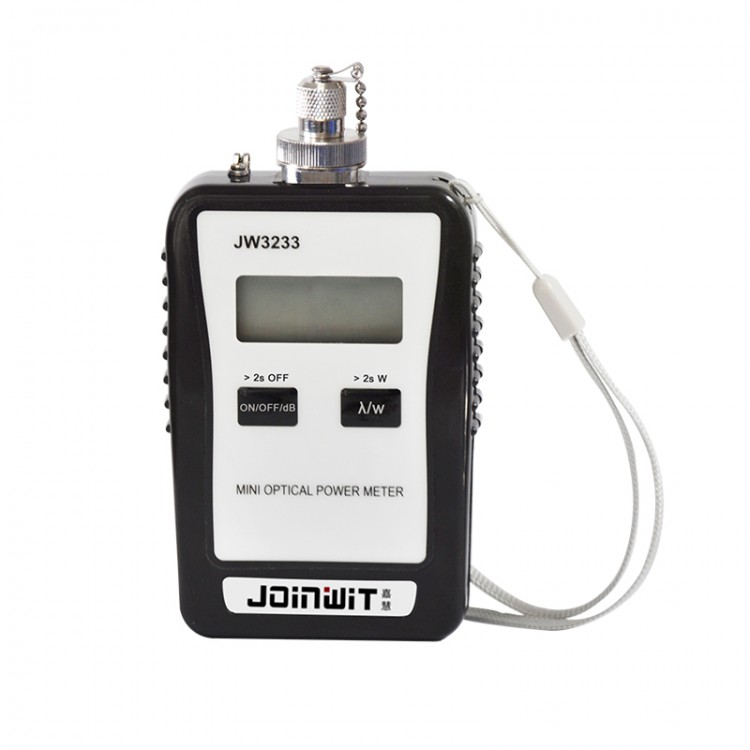

JW3233 Mini Optical Power Meter 600-1000NM -60 To 10DBM Fiber Optic Power Meter Pocket Size
Description:
Handheld Plastic Optical Power meter is the newest product of our company, which is used for testing the optical power with the wavelength range 600-1000nm. The unit is w, dBm, with high resolution. There are 5 calibration wavelengths, 635nm, 650nm, 780nm, 850nm and980nm. Linearity or nonlinearity could show the optical power. It can be used for testing optical power of shortwave length.
The instrument is small in size and light in weight. Low power consumption. Convenient to take. LCD display makes the testing more convenient and faster.
Applications:
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
Specifications:
- Model: JW3233
- Wavelength range: 600-1000nm
- Detector Type: Si (about 4x4mm)
- Measurement Range: -60 to +10dBm; ±5%
- Calibration wavelength: 635nm, 650nm, 780nm, 850nm and 980nm
- Resolution: Linearity: 0.1%; logarithmic display: 0.01dBm
- Operating Temperature: -10 to 60℃
- Storage Temperature: -25 to 70℃
- Automatic shutoff time: 10min
- Weight: 200g/0.44 lb
- Dimensions: 150 x 74 x 26mm/5.9 x 2.9 x 1"
Package Included:
- 1 x Set of Optical Power Meter
Note:
- 3pcs 1.5V AAA batteries are not included.
