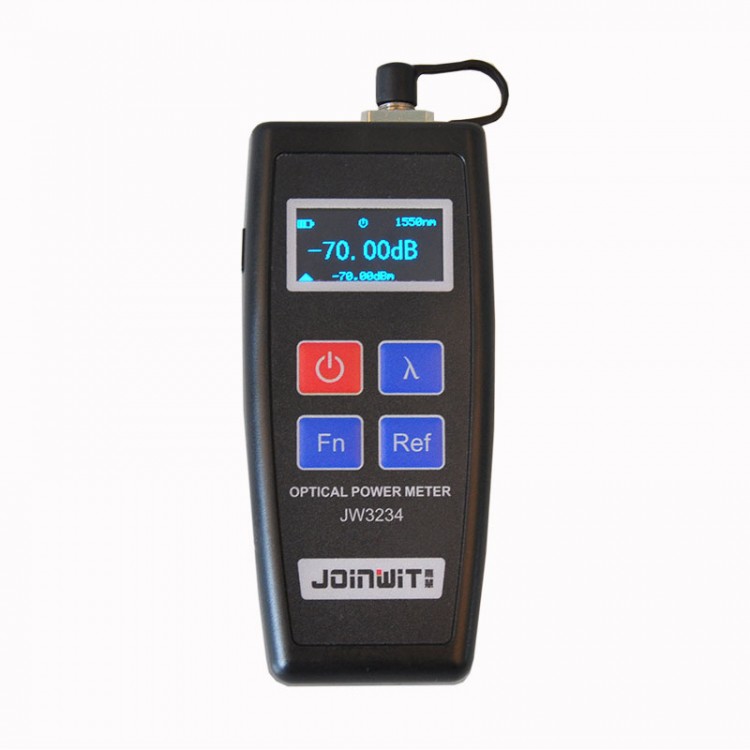

JW3234 Fiber Optical Power Meter Tester Fiber Optic Power Meter OLED Screen 6 Calibrated Wavelengths
Features:
- High precision, low error, large dynamic range
- Mini type ergonomic design, single hand operation, flexible and convenient to use.
- OLED HD full view display screen
- Universal adapter FC/SC/ST
- Wavelength memory function
- Micro-USB power supply
- Auto-off function to save energy
- 6 calibrated wavelength
- Support lanyard, falling/losing-proof
- Support dBm, dB, mW unit switching
Applications:
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
Specifications:
- Wavelength Range: 850 to 1700nm
- Probe Type: InGaAs
- Uncertainty: ±0.3 dB
- Calibrated Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
- Display Resolution: 0.05 dB
- Operating Temperature: -10℃ to 60℃
- Storage Temperature: -25℃ to 70℃
- Auto-off Time: 10 min
- Power Supply: micro USB or Power Bank
- Dimensions: 128 x 52 x 22 mm
- Weight: 70g
Optional Type:
- Type A: Measurement Range: -70 to 6 dBm
- Type C: Measurement Range: -50 to 26 dBm
Note:
- Please tell us the type you want when purchasing. Thank you!
- Battery is not included in the package.
Package Included:
- 1 x JW3234 Optical Power Meter
