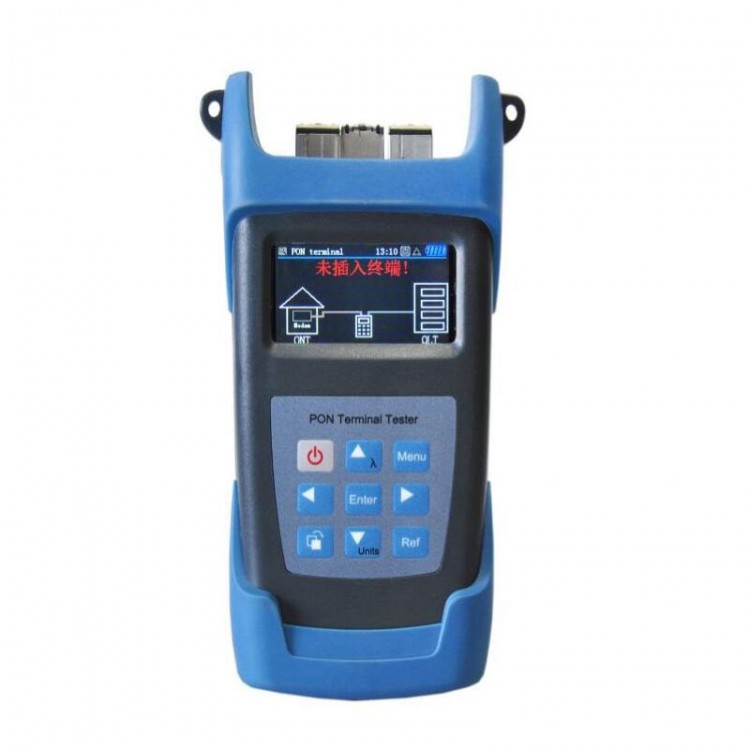

JW3313 PON Terminal Tester Optical Power Meter VFL FTTH Fiber Tester

JW3313 PON Terminal Tester Optical Power Meter VFL FTTH Fiber Tester

Product Description:
- The OP3313 PON terminal tester can check the terminal state of optical network resources and analyze the ONT and OLT state in PON network without maintenance personnel being into the user's home.
- At the same time,OP3313 PON terminal tester can integrate full-function PON power meter,visual fault locator,return loss tester,standard optical power meter,standard light source and some other modules.It is a versatile helper in current PON network maintenance and terminal resources inventory field.

Main benefits:
1.The independent invention patent will be used in the analysis and investigation of PON network terminal;
2.Checking the occupation and idle condition of optical network terminal resources
3.Judging whether the fiber optic modem is no power,the fiber fall off or the fiber is not connected with fiber optic modem intelligently.
4.Supporting return loss testing,qualitative judgment of optical path,installation quality of optical connector to make sure high speed optical communication;
5.Fully support the PON optical power meter function;
6.Supporting 1310nm and 1550nm stable light output mode;
7.Supporting standard optical power meter mode;
8.Supporting visual fault location mode;

Other benefits:
- Support Chinese/English language switching
- Support threshold value settings
- Support alkaline battery,rechargeable battery,AC adapter power supply mode
- Intelligent power management and power detection function
- Support date and time settings
- Support power-saving mode

Specification:
- Mode:OP3313PON

PON Terminal Module:
- PON Terminal State:Online,Break,ONT Fatal,ONT BAD,No Power,Fall off
- Insertion loss(dB):≤1.5
- Optical port:(FC\SC\ST)PC
- PON power meter module:1310 /1490/1550nm upstream
- Detection range(dBm):+10~-35;+12~-40;+25~-40
- OPM uncertainty(dB):≤0.5
- Calibrated wavelength(nm):1310/1490/1550/1625
- Accuracy(dB):0.01

OPM Module:
- Calibrated wavelength(nm):1310/1490/1550/1625
- Detector type:InGaAs
- Detection range(dBm):+6~-70
- Uncertainty(dB):±0.5

VFL Module:
- Wavelength(nm):650±20
- Output power(mW):≥ 1

OLS Module:
- Wavelength(nm):1310±20 & 1550±20
- Output  power(dBm):0~±0.5

Other Index:
- Display Screen:TFT colorful screen
- Power Supply:Standard configuration:3 pcs AA1.5V Alkaline battery;Customized: Rechargeable Battery DC 5V adapter
- Communication port:Mini USB
- Battery operating time(h):≥ 10
- Operating temperature (℃):-5~40
- Storage temperature (℃):-10~70
- Relative humidity:0~95%(No condensation)
- Weight:423g(Battery not included)
- Size:192x102x50mm

Package List:
- 1 x OP3313PON tester
- 1 x USB
- 1 x CD
- 1 x User Manual
